DDN ANSI Code

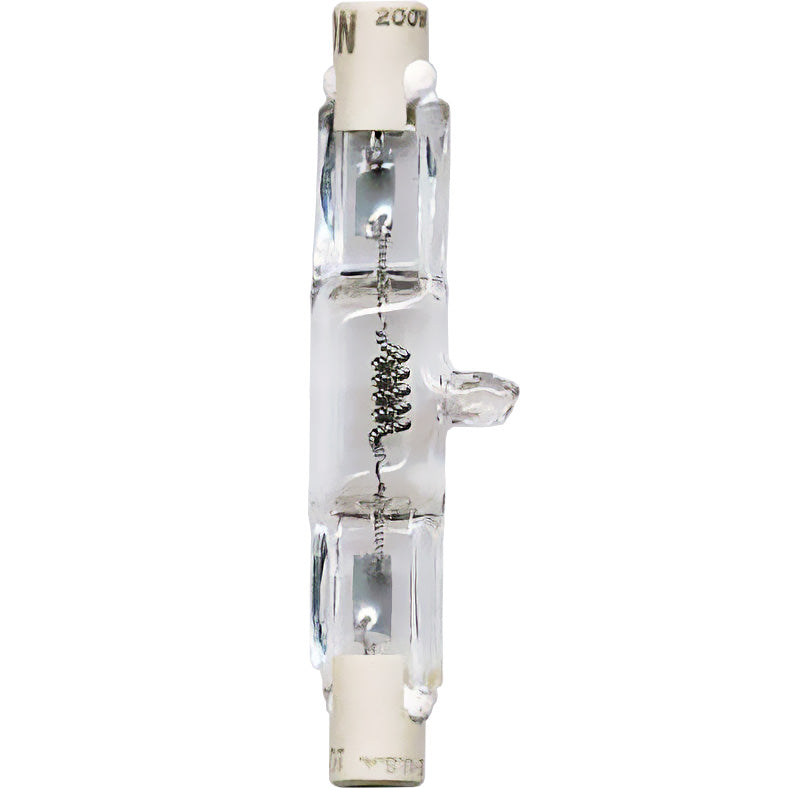

DDN ANSI is a T3 lamp with a R7s base operating at 200 watts and 20 volts. It has a color temperature of 3150 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DDN lamps.

Electrical Specifications

Amps10
Volts20
Watts200

Photometrics

Candlepower400
Color Temperature3150
Lumens5000

Physical Characteristics

BaseR7s
Bulb ShapeT3
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 3/8

Operating Characteristics

Burn PositionAny
Life Hours100

General Information
Lamp CodeDDN
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-416-6140

T3 Shape

T3
Diameter Designation3/8"
Glass Diameter 3/8" (0.375")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Green Energy Lighting (GELCO)60598-GELDDN
Norman LampsDDN20V 200W
Microlites20-200-75
Canimpex20-200-75

Equipment Used In

BrandModelType
3M 400-M
3M 400-CT
3M 500-C
3M Model 500
3M 500PS
3M 400-C
3M 500-F
3M 500-M
3M 500-CT
3M 400-B
