DDP ANSI Code

DDP ANSI is a T4 lamp with a GZ9.5 base operating at 132 watts and 22 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 125 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DDP lamps.

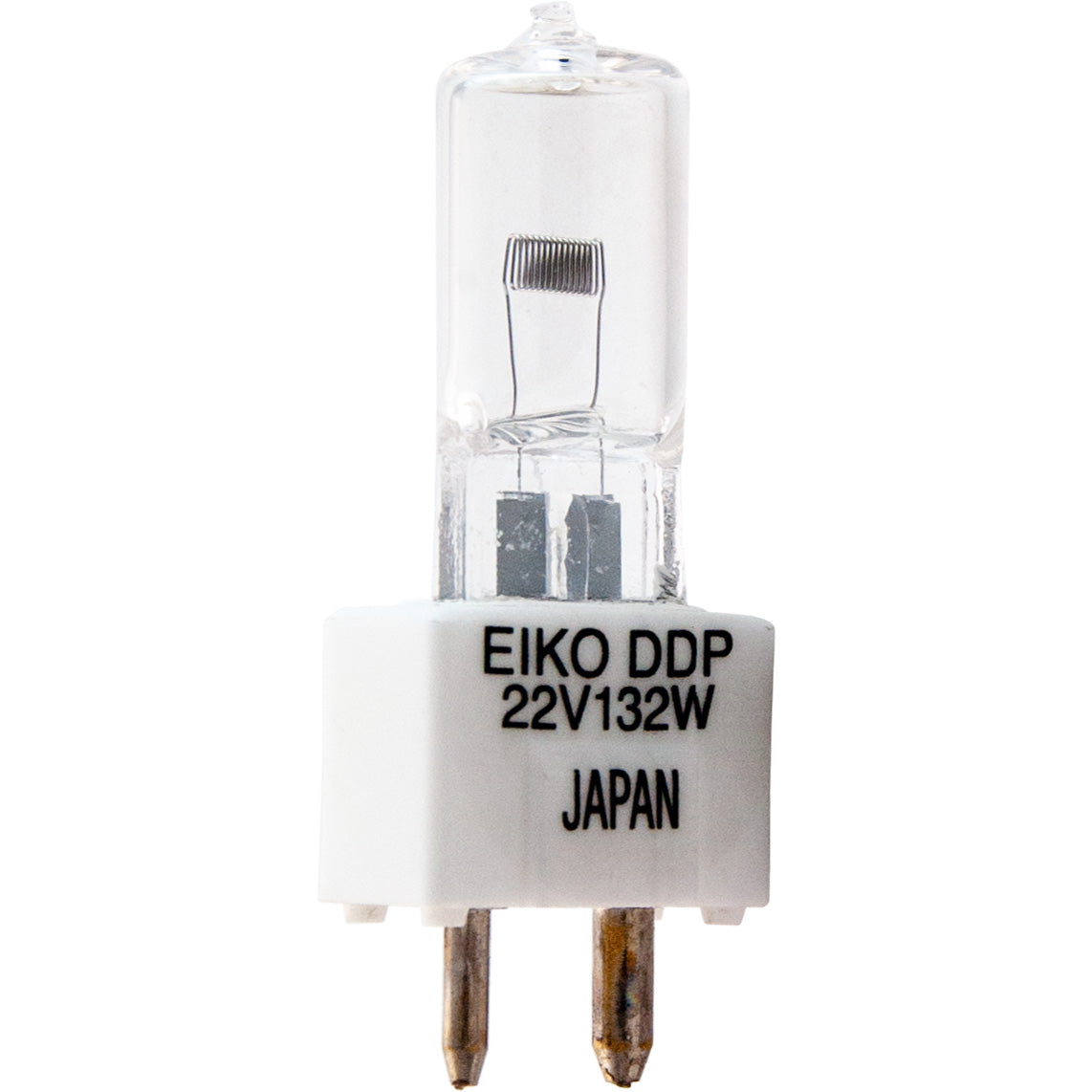

DDP Photograph

DDP

Electrical Specifications

Amps6
Volts22
Watts132

Photometrics

Candlepower290
Color Temperature3300
Light Center Length (LCL)1 5/16
Lumens3600

Physical Characteristics

BaseGZ9.5
Bulb ShapeT4
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 11/32

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours125

General Information
Lamp CodeDDP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

GZ9.5 Base

GZ9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDDP132W, 22V
Microlites22-132-29
Canimpex22-132-29

Equipment Used In

BrandModelType
3M Model 260
