DEA ANSI Code
DEA ANSI is a T12 lamp with a G-PIN4 base operating at 300 watts and 120 volts. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DEA lamps.

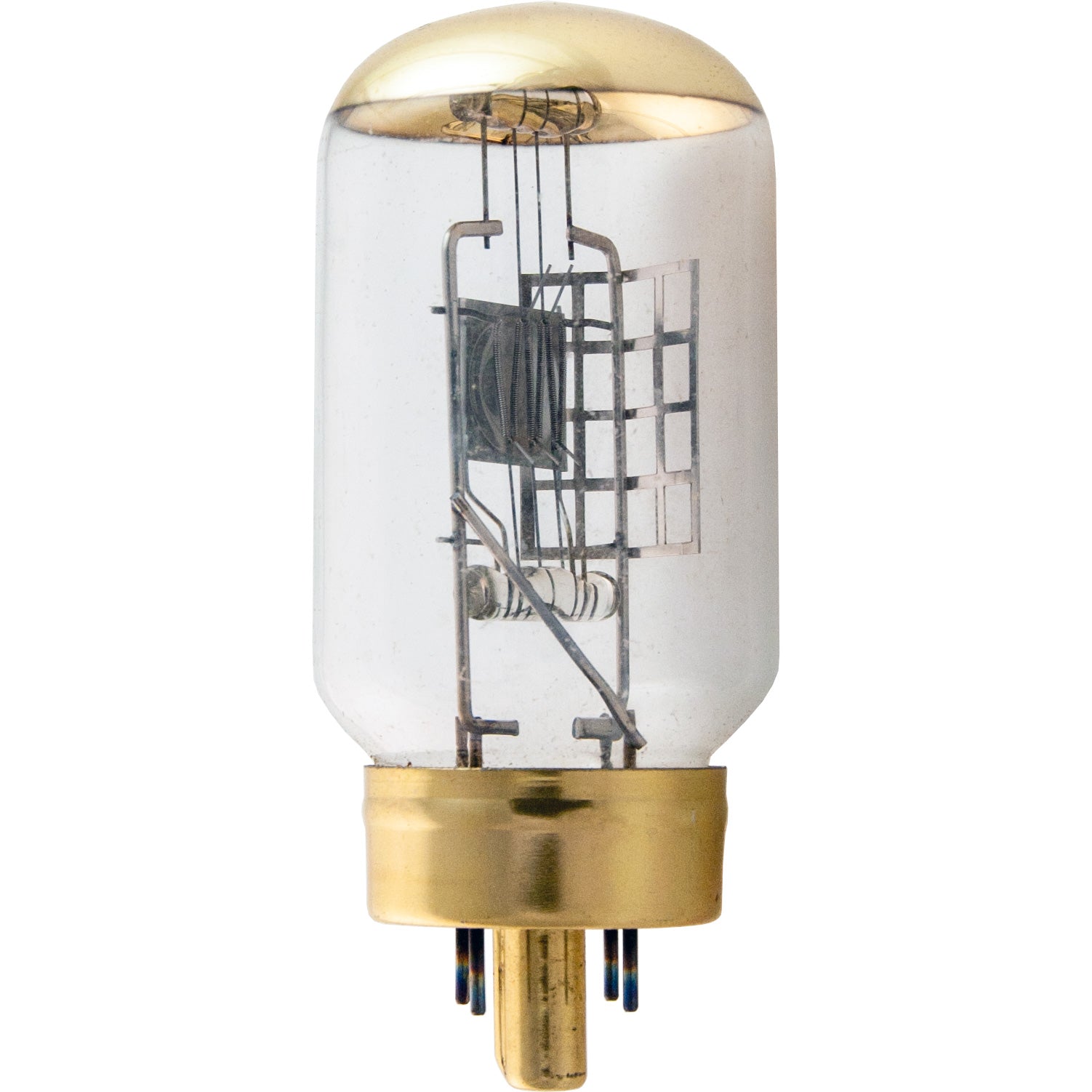

DEA Photograph |
 |
Electrical Specifications | |
| Amps | 2.5 |
|---|---|
| Volts | 120 |
| Watts | 300 |
Photometrics | |
| Light Center Length (LCL) | 1.75" (44.5mm) |
|---|---|
Physical Characteristics | |
| Base | G-PIN4 |
|---|---|
| Bulb Shape | T12 |
| Filament | C-13 |
| Max Overall Length (MOL) | 3.5" (88.9mm) |
Operating Characteristics | |
| Life Hours | 25 |
|---|---|
General Information | |
| Lamp Code | DEA |
|---|---|
| Code Type | ANSI |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Sunlite | DEA | DEA | |
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Carousel 500 | |
| Eastman Kodak | Carousel AV-650 | |
| Eastman Kodak | Carousel AV-580 | |
| Eastman Kodak | Carousel RA-950 | |
| Eastman Kodak | Carousel AV-700 | |
| Eastman Kodak | Carousel AV-600 | |
| Eastman Kodak | Carousel AV-860 | |
| Eastman Kodak | Carousel 800 | |
| Eastman Kodak | Ektagraphic RA-950 | |
| Eastman Kodak | Carousel AV-570 | |
| Eastman Kodak | Carousel 950 | |
| Eastman Kodak | Carousel 850 | |
| Eastman Kodak | Carousel AV-800 | |
| Eastman Kodak | Carousel AV-900 | |
| Eastman Kodak | Carousel AV-750 | |
| Eastman Kodak | Carousel AV-950 | |
| Eastman Kodak | Carousel 580 | |
| Eastman Kodak | Carousel 760 | |
| Eastman Kodak | Carousel 900 | |
| Eastman Kodak | Carousel 570 | |
| Eastman Kodak | Carousel 700 | |
| Eastman Kodak | Carousel AV-850 | |
| Eastman Kodak | Carousel 750 | |
| Eastman Kodak | Carousel 650 | |
| Eastman Kodak | Carousel 850K | |
| Eastman Kodak | Carousel AV-500 | |
| Eastman Kodak | Carousel 600 | |
| Eastman Kodak | Carousel 550 | |
| Eastman Kodak | Carousel AV-760 | |
| GAF (Ansco) | Anscorama 940 | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 910 | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 960 | 8mm Projector Movie |
DEA may also be listed as: | |||
| A56-890 | DEA | DEA ANSI | DEA ASA |
| DEA INTERLIGHT | DEA WIKO | DEA-120 VOLT ANSI | DEA-120 VOLT ASA |
| DEA-120V | DEA-120V ANSI | DEA-120V ASA | DEA-120V-300W |
| DEA-120V-300W ANSI | DEA-120V-300W ASA | DEA-120V/120V/300W ANSI | DEA/120 |
| DEA/120 ANSI | DEA/120 ASA | DEA/120V GENERAL-ELECTRIC | I/120V/300W/G-PIN4/T12/C13/OT/25H |
| I/120V/300W/G-PIN4/T12/C13/OT/25H/DEA | I/120V/300W/G-PIN4/T12/OT/25H | I/120V/300W/G-PIN4/T12/OT/25H/DEA | SP300T12G-PIN4C13OT120V |
| SP300T12G-PIN4C13OT120V-DEA | SP300T12G-PIN4OT120V | SP300T12G-PIN4OT120V-DEA | |
