DEC ANSI Code
DEC ANSI is a T12 lamp with a DCMR base operating at 750 watts and 120 volts. It has a color temperature of 3275 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DEC lamps.

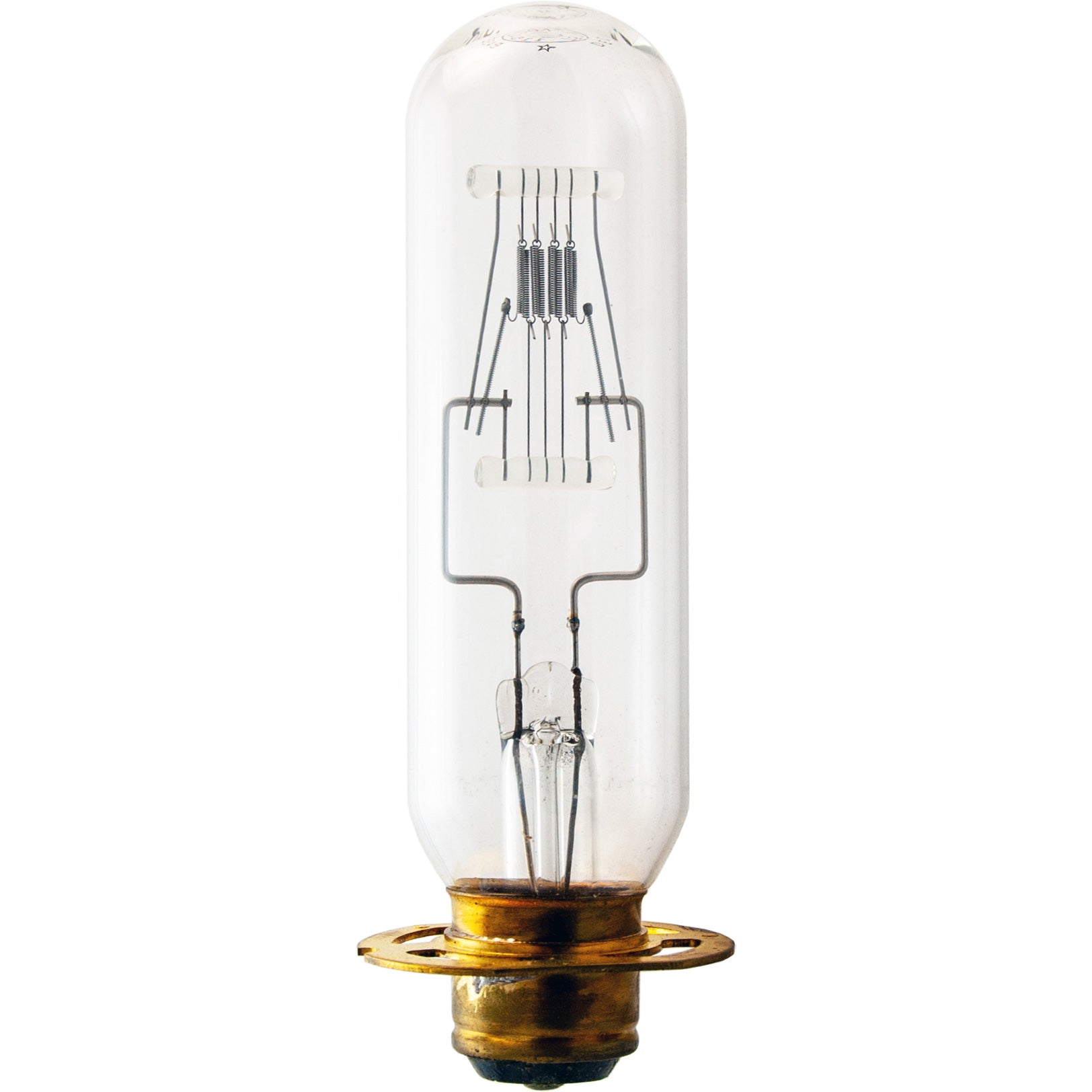

DEC Photograph |
 |
Electrical Specifications | |
| Amps | 6.25 |
|---|---|
| Volts | 120 |
| Watts | 750 |
Photometrics | |
| Candlepower | 1600 |
|---|---|
| Color Temperature | 3275 |
| Light Center Length (LCL) | 3 1/2 |
| Lumens | 20100 |
Physical Characteristics | |
| Base | DCMR |
|---|---|
| Bulb Shape | T12 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 5 7/8 |
Operating Characteristics | |
| Burn Position | Base Up |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | DEC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| NATO Stock Number | 6240-00-669-6652 |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

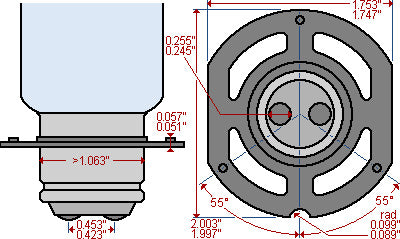

DCMR Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | DEC | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | JAN Military D-4 | |
| Bell and Howell | JAN Military 914 | |
| Bell and Howell | JAN Military 614-D-4 | |
| Bell and Howell | JAN D-4 | |
| Eastman Kodak | 16mm Model 30 | |
| Eastman Kodak | Television CM350 | |
| Eastman Kodak | Eastman 25-C | |
| Eastman Kodak | Television 250 | |
| Eastman Kodak | 25-B | |
| Eastman Kodak | Eastman 25 | |
| Eastman Kodak | Eastman 25-B | |
| Eastman Kodak | Television 275 | |
| Eastman Kodak | 16mm Model 25 | |
| Eastman Kodak | 16mm Model 40 | |
| Eastman Kodak | Eastman 40 | |
| Eastman Kodak | 16mm Model 25C | |
| Eastman Kodak | 16mm Model 25B | |
| Eastman Kodak | Television 285 | |
| Eastman Kodak | Eastman 30 | |
| Eastman Kodak | Ektagraphic CT-500 | |
| RCA | TP-6 | |
| RCA | TP-6A | |
