DED ANSI Code

DED ANSI is a MR16 lamp with a GX5.3 base operating at 85 watts and 13.8 volts. It has a color temperature of 3150 Kelvin. It has a Open front finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DED lamps.

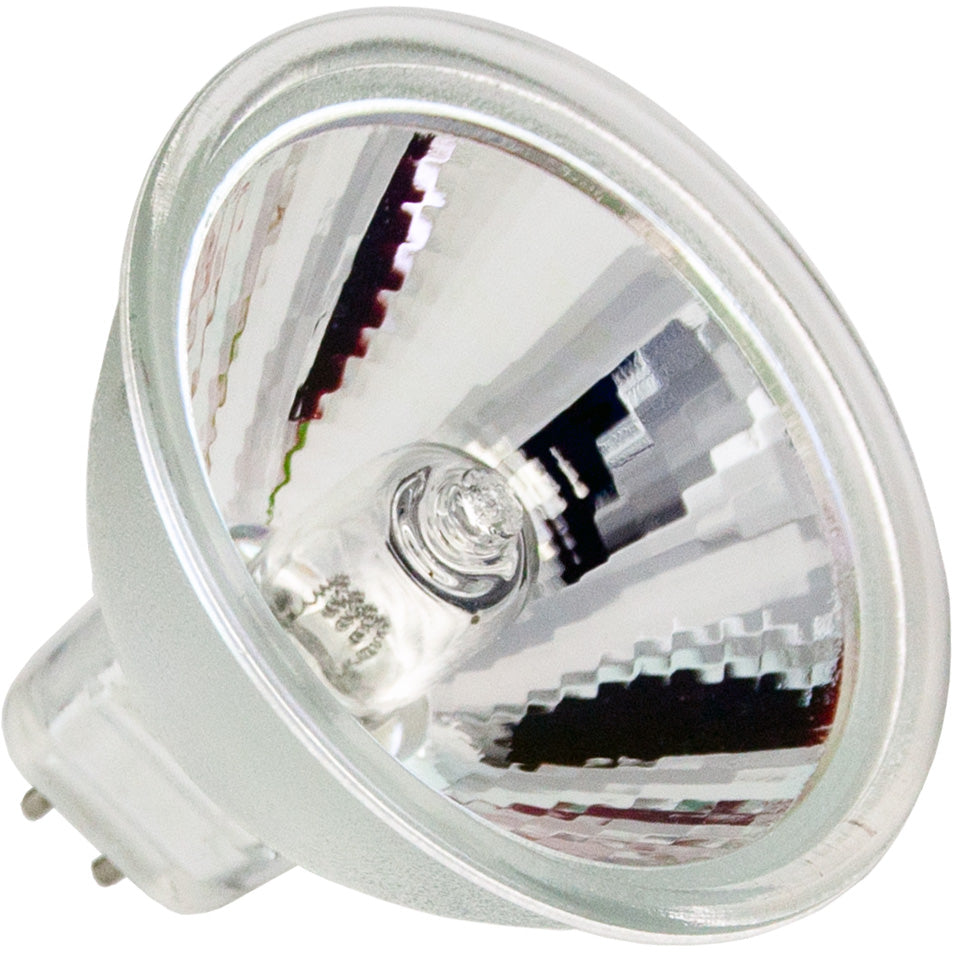

DED Photograph

DED

Electrical Specifications

Amps6.16
Volts13.8
Watts85

Photometrics

Color Temperature3150
Lumens1000 lux

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours1000

General Information
Lamp CodeDED
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-01-084-3571
EquivalentsF/109

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric43950DED
Imported Lamp Code52340
Osram Sylvania54726DED 64618
Philips314757DED 13194
Sunlite70015DED
Ushio1000180DED, JCR13.8V-85W
NARVA54085EDE
Kahoku Lighting Solutions (KLS)62015-KLSDED Japan
Green Energy Lighting (GELCO)62015-GELDED
Norman LampsDED85W, 13.8V
Microlites13.8-085-23R
Canimpex13.8-085-23R

Equipment Used In

BrandModelType
3M 4600
3M 2800
3M 3550
Agfa-Gevaert COPEX LF102
Agfa-Gevaert Copex LK300
Agfa-Gevaert COPEX LK300 (R/P) Note
Agfa-Gevaert COPEX LF104
Agfa-Gevaert Copex LF303
Alos A.G. 27-17
Amelung AMAX 190 Analyzer
Bell and Howell ABR 4
Bell and Howell ABR 650
Bell and Howell ABR 610 (R/P)
Bell and Howell ABR 2
Bell and Howell ABR 917
Bell and Howell 995
Bell and Howell ABR 7
Bell and Howell ABR 8
Bell and Howell ABR 914
Bell and Howell 925
Bell and Howell ABR 8-IR
Bell and Howell ABR 10
Bell and Howell ABR 610
Bell and Howell ABR 900
Bell and Howell ABR 600
Bell and Howell Still Projector 500
Bruning 965
Bruning 955
Bruning 902
Bruning 915
Bruning 968
Bruning 969
Bruning 967
Bruning 925
Bruning 935
DataGraphix Datamate 175
DataGraphix Datamate 100
DataGraphix Datamate 200
Deckart DK 26
Deckart DK 25
Deckart DK 27
Dukane 27A88A Projector
Dukane 27A88 Projector
Dukane Reader 27A87A
Dukane 27A87
Dukane 27A87 Projector
Dukane Reader 27A88A
Dukane 27A88
Dukane 28A87A Projector
Dukane MDP
Ergoflux Delta-A
Faopsa MAR-42 Microfilm
Faopsa Iberia
Faopsa Granada
Faopsa Fiesta
Faopsa 15401
Faopsa Personal
Film Circulation Corp. Duplex C
Film Circulation Corp. Duplex B
Finlay 16-FC Microfilm
Imtec 016 (R/P)
Imtec 016
Infographix 300
Infographix 500
Infographix 150
Information Design Automatic (Front Projection)
Information Design ADC-4
Information Design ADC-3
Information Design IDI 2200
Information Design 101420
Information Design 1012200
Information Design Rom 4 Com Terminal
Kardex ADC 3
Kardex RC/M
Kardex ADC 4
Kardex ADC 3-L
Kindermann FR 24 Car Terminal
Kindermann FR 10
Kindermann FR 7 Terminal
Kindermann FR 6 Terminal
Kindermann FR 9
Liesegang Micro P1
Liesegang Micro L10
Liesegang L10 Kompact
Liesegang EL 200
Map ADC 3
Map MLF 18 X 24A
Map ADC 3L
Map ADC 3A
Map ADC 4
Map MLF 2A/1824
Map FPA
Map MLF 3A/1824
Map ADC 2A
Map RPA
Map ADC-Projector
Map RP 4
Map TC-3
Map ADC 4A
Map ADC 2L
Micro Design 915
Micro Design 955
Micro Design 935
Micro Design 995
Micro Design 925
Micro Design 990
Micro Design 905
Micro Design 975
Micro Design 965
Micro Design 985
Microbox MLU 3
Microbox MLU 2
Microfilm Research Microcomparator Executive
Microfilm Research Executive Microcomparator 2300
Microfilm Research Microcomparator E
Microfilm Research Executive Microcomparator 1650
Microfilm Research Executive Microcomparator 1800
Microfilm Research Executive Microcomparator 1250
Microfilm Research Microcomparator 1200
Microfilm Research Executive Microcomparator 1600
Micron Model 2020 Library Reader
Microtech Services MTS 103
Microtech Services MTS 101
Microtech Services MTS 102
Microvue 280 RP
Microvue LP
Microvue Pro
Microvue 355 RP
Microvue MV 460
Microvue MV 280
Microvue MV460E
Microvue MV 355
Microvue LPR 350
Mikrofilmlesegerat Medical
NCR Corp. 456-800
Regma R23
Regma R30
Regma RA3
SFS LG16FCA
SFS LG16A Microfilm
SFS LG16FC
Saul Microfilm FCR 4
Saul Microfilm 1824
Saul Microfilm RC/3M
Saul Microfilm FCR 3 MC Saul Microfilm | FCR 3 MC
Saul Microfilm FC-H
Saul Microfilm LF 16FC-H31
Saul Microfilm LG 16FC-E
Saul Microfilm LC 16 RC
Saul Microfilm LG 16FC-A
Saul Microfilm RC/M
Saul Microfilm FC-3L
Saul Microfilm RCM/M
Saul Microfilm FC-L
Saul Microfilm FC-1824
Saul Microfilm FCM
Saul Microfilm FC-LA
Saul Microfilm LG 16 RC-E
Saul Microfilm LG 16FC-L
Saul Microfilm LG 16R C-E Saul Microfilm | LG 16R C-E
Saul Microfilm FCR 4 MC Saul Microfilm | FCR 4 MC
Saul Microfilm Airlines
Saul Microfilm LG 16FC
Shrewsbury Electronic Engineers Microsee 270-EXC
Shrewsbury Electronic Engineers Microsee A3
Skop EKO-V A3
Skop EKO-V
Skop EKO-V A4
Unimic 3000
WSI Elite II
