DEK ANSI Code
DEK ANSI is a T12 lamp with a G17q-A2A base operating at 500 watts and 125 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DEK lamps.

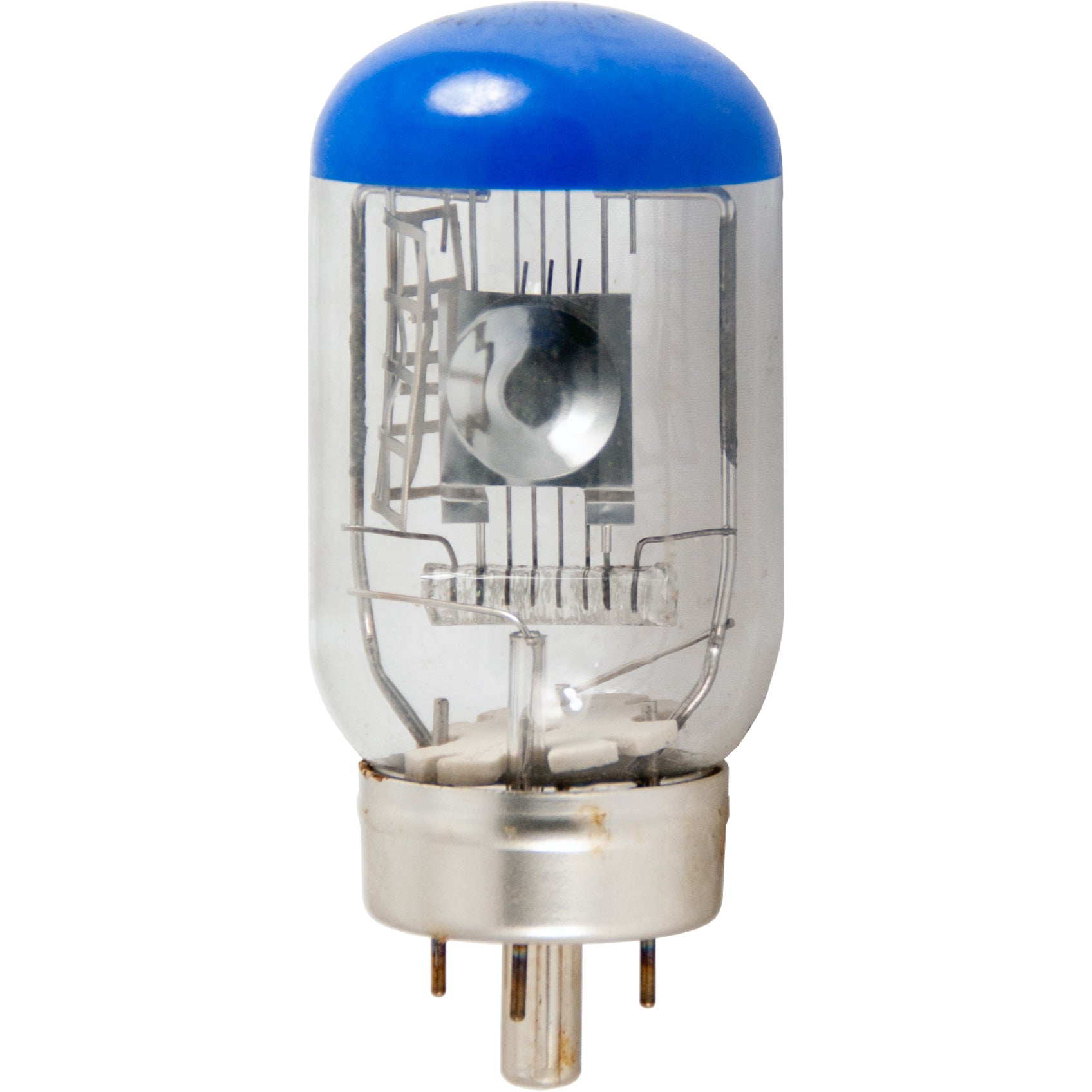

DEK Photograph |
 |
Electrical Specifications | |
| Amps | 4 |
|---|---|
| Volts | 125 |
| Watts | 500 |
Photometrics | |
| Color Temperature | 3250 |
|---|---|
| Light Center Length (LCL) | 1 3/4 |
| Lumens | 14500 |
Physical Characteristics | |
| Base | G17q-A2A |
|---|---|
| Bulb Shape | T12 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | Horizontal |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | DEK |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | DFW |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | DEK | 500W, 120V | |
| Microlites | 120-500-31E | ||
| Canimpex | 120-500-31E | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | Monitor 961 | |
| Bell and Howell | Monitor 960 | |
| Bell and Howell | Monitor 950 | |
| Buhl | Koolite 90-CF | |
| Buhl | Koolite 90-CW | |
| Buhl | Koolite 90-SSF | |
| Buhl | Koolite 100-WF | |
| Buhl | Koolite 100-SSF | |
| Buhl | Koolite 90-W | |
| Buhl | Koolite 100-W | |
| Buhl | Koolite 90-WF | |
| Buhl | Koolite 100-CF | |
| Buhl | Koolite 90-C | |
| Buhl | Koolite 100-SS | |
| Buhl | Koolite 100-C | |
| Buhl | Koolite 90-SS | |
| Eastman Kodak | Brightlight Modules Ektagraphic RA-960 | |
| Eastman Kodak | Carousel 860 | |
| Eastman Kodak | Carousel AV-860 | |
| Eastman Kodak | Ektagraphic AF | |
| Eastman Kodak | Carousel 800 | |
| Eastman Kodak | Ektagraphic RA-950 | |
| Eastman Kodak | Brightlight Modules Ektagraphic E | |
| Eastman Kodak | Carousel 950 | |
| Eastman Kodak | Carousel 850 | |
| Eastman Kodak | Carousel | |
| Eastman Kodak | Carousel 900 | |
| Eastman Kodak | Carousel 570 | |
| Eastman Kodak | Carousel AV-850 | |
| Eastman Kodak | Ektagraphic B | |
| Eastman Kodak | Carousel 650 | |
| Eastman Kodak | Carousel 850K | |
| Eastman Kodak | Carousel AV-500 | |
| Eastman Kodak | Carousel 600 | |
| Eastman Kodak | Recordak Automatic Jacket Reader | |
| Eastman Kodak | Carousel 550 | |
| Eastman Kodak | Carousel AV-760 | |
| Eastman Kodak | Carousel 500 | |
| Eastman Kodak | Ektagraphic E | |
| Eastman Kodak | Carousel AV-650 | |
| Eastman Kodak | Carousel AV-580 | |
| Eastman Kodak | Recordak Microstar PR-1 | |
| Eastman Kodak | Carousel RA-950 | |
| Eastman Kodak | Carousel AV-700 | |
| Eastman Kodak | Carousel AV-600 | |
| Eastman Kodak | Ektagraphic RA-960 | |
| Eastman Kodak | Carousel B-865-Q | |
| Eastman Kodak | Carousel B-864-Q | |
| Eastman Kodak | Recordak Microstar (older model) | |
| Eastman Kodak | Brightlight Modules Ektagraphic AF | |
| Eastman Kodak | Carousel AV-570 | |
| Eastman Kodak | Carousel AV-800 | |
| Eastman Kodak | Carousel AV-900 | |
| Eastman Kodak | Carousel AV-750 | |
| Eastman Kodak | Carousel AV-950 | |
| Eastman Kodak | Carousel 580 | |
| Eastman Kodak | Carousel 760 | |
| Eastman Kodak | Brightlight Modules Ektagraphic B | |
| Eastman Kodak | Carousel 700 | |
| Eastman Kodak | Carousel 55-R | |
| Eastman Kodak | Carousel 750 | |
| Eastman Kodak | Ektagraphic Slide | |
| Eastman Kodak | Recordak PR-1 (w/o Heat Shield) | |
| Eastman Kodak | Carousel Custom | |
| GAF (Ansco) | ESP 2000AV | Projector Slide / Filmstrip |
| GAF (Ansco) | Anscorama 980 | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 940 | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 910 | 8mm Projector Movie |
| GAF (Ansco) | ESP 200AV | Projector Slide / Filmstrip |
| GAF (Ansco) | Anscorama 980-Z | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 970 | 8mm Projector Movie |
| GAF (Ansco) | Anscorama 960 | 8mm Projector Movie |
| Gregory Magnetic Ind. | GMI-44 | Overhead Projector |
| Hanimex | GMI-44 | |
| JC Penney | 500 | Slide Projector |
| JC Penney | 600 | Slide Projector |
| Keystone Camera Co. Inc. | 1300 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-1200 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | 1100 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-1300 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-1100 | Projector Slide / Filmstrip |
| Mast Development | Random Access S-6 | Slide Projector |
| Mast Development | Random Access S-4 | Slide Projector |
| Mast Development | Random Access 137-S-6 | |
| Mast Development | 136 | Slide Projector |
| Mast Development | Random Access 137-S | |
| Mast Development | Random Access 137-S-4 | |
| McClure Projectors | MAV | Projector |
| Sears Roebuck | Pro-Am | Projector Slide / Filmstrip |
| Sears Roebuck | Whisper Matic 9875 | Projector Slide / Filmstrip |
| Sears Roebuck | 9875 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9878 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9877 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | Continental 9845 | Projector Slide / Filmstrip |
| Sears Roebuck | 9877 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | Continental 9851 | Projector Slide / Filmstrip |
| Sears Roebuck | Continental 9855 | Projector Slide / Filmstrip |
| Sears Roebuck | 9875 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 9878 TOWER | Projector Slide / Filmstrip |
| Singer Corporation | SM-1000 | |
| Singer Corporation | Graflex SM-1000 | |
| Singer Corporation | Constellation Instructor 2 | |
| Singer Corporation | Instructor II | |
| Spindler & Sauppe | Spectrum 32 | Projector Slide / Filmstrip |
| Spindler & Sauppe | Selectroslide Spectrum 32 | Projector Slide / Filmstrip |
| Spindler & Sauppe | Selectroslide 321 (newer model) | Projector Slide / Filmstrip |
| Spindler & Sauppe | Selectroslide 32 | Projector Slide / Filmstrip |
| Standard Projector & Equipment | 500-N | Projector Slide / Filmstrip |
| Standard Projector & Equipment | 500-RC | Projector Slide / Filmstrip |
| Visual Impact Materials | CIP Overslide | |
DEK may also be listed as: | |||
| 1350 | 01350 EIKO | 01350 UPC | 01350 WIKO |
| 1360 | 01360 WIKO | 031293013507 EIKO | 048777112045 UPC |
| 1000183 BLV | 1000183 USHIO | 11361 STANDARDPRO | 29737 GENERAL-ELECTRIC |
| 300814 PHILIPS | 3129301350 WIKO | 43168991377 | 43168991377UPC STANDARDPRO |
| 500/T12G17Q2HAL SYLVANIA | 500/T12TF2HAL SYLVANIA | 500T12TRUE-FOCUS2HAL SYLVANIA | 500WATT-T12-G17Q-2-HAL SYLVANIA |
| 50640 NORELCO | 74440 | 74440 OSRAM | 78-8006-9688 3M |
| 789-012 GENERAL-ELECTRIC | BW-DEK | DEK | DEK ANSI |
| DEK ASA | DEK EIKO | DEK GENERAL-ELECTRIC | DEK HIDSI |
| DEK INTERLIGHT | DEK MICROLAMP | DEK OSRAM | DEK SYLVANIA |
| DEK USHIO | DEK WESTINGHOUSE | DEK WIKO | DEK-120 VOLT ANSI |
| DEK-120 VOLT ASA | DEK-120V | DEK-120V ANSI | DEK-120V ASA |
| DEK-120V-500W | DEK-120V-500W ANSI | DEK-120V-500W ASA | DEK-120V-500W-G17Q-7 USHIO |
| DEK-120V-500W-G17Q-T-12-C-13D-GOLD/BLUE-TOP-14500L-3250K-25H-HOR-3-5/8MOL-1-3/4LCL-I-SLIDE-PROJECTOR-PROX.-REFL-COLLECTOR-GRID-CLEAR-LUMENS-HIGH | DEK-120V-500W-G17Q-T12-C13D-GOLD/BLUE-TOP-14500L-3250K-25H-HOR-3-5/8MOL-1-3/4LCL-I-SLIDE-PROJECTOR-PROX-REFL-COLLECTOR-GRID-CLEAR-LUMENS-HIGH | DEK-120V/120V/500W/G17Q ANSI | DEK-125V |
| DEK-125V ANSI | DEK-125V ASA | DEK-125V-500W | DEK-125V-500W ANSI |
| DEK-125V-500W ASA | DEK-125V/125V/500W/G17Q ANSI | DEK-125VOLT ANSI | DEK-125VOLT ASA |
| DEK-5 | DEK-5 ANSI | DEK-5 ASA | DEK-5 WIKO |
| DEK-5-DFW-5 ANSI | DEK-5-DFW-5 ASA | DEK-5-DFW-5-DHN-5 ANSI | DEK-5-DFW-5-DHN-5 ASA |
| DEK-5-DHN-5 | DEK-5-DHN-5-DFW-5 | DEK-500W-120V-G17Q-7 USHIO | DEK-500WATT-25HOURS EIKO |
| DEK-DFW ANSI | DEK-DFW ASA | DEK-DFW SYLVANIA | DEK-DFW-5 |
| DEK-DFW-DHN WESTINGHOUSE | DEK-DFW-DHN-5 | DEK-DFW-DLN ANSI | DEK-DFW-DLN ASA |
| DEK-DFW/T12-120V-500W-TRUFOCUS LAMPTECH | DEK-DHN GENERAL-ELECTRIC | DEK-DHN-5 | DEK-DHN-DFW GENERAL-ELECTRIC |
| DEK-DHN-DFW-5 | DEK-GE LAMPTECH | DEK-GE/T12-120V-500W-TRUFOCUS LAMPTECH | DEK/120 |
| DEK/120 ANSI | DEK/120 ASA | DEK/120V GENERAL-ELECTRIC | DEK/120V/500W OSRAM |
| DEK/120V/500W/G17Q ANSI | DEK/125 | DEK/125 ANSI | DEK/125 ASA |
| DEK/125V/500W/G17Q ANSI | DEK/500W25HOURS EIKO | DEK/5DFW5DHN5 | DEK/DFW |
| DEK/DFW INTERLIGHT | DEK/DFW LAMPTECH | DEK/DFW MICROLAMP | DEK/DFW OSRAM |
| DEK/DFW-125V ANSI | DEK/DFW-125V GENERAL-ELECTRIC | DEK/DFW/120V GENERAL-ELECTRIC | DEK/DFW/120V/500W OSRAM |
| DEK/DFW/DHN | DEK/DFW/DHN ANSI | DEK/DFW/DHN BULB-DIRECT | DEK/DFW/DHN STANDARDPRO |
| DEK/DFW/DHN USHIO | DEK/DFW/DHN-120V-500W-G17Q-7 USHIO | DEK/DFW/DHN-500W-120V-G17Q-7 USHIO | DEK/DFW/DHN-PROXIMITY-REFLECTOR-OPAQUE-TOP-SIDE-SCREEN-120V-T38MM-89MMMOL-44.5MMLCL-C-13D-3200K-25H-HORIZ-1000183 BLV |
| DEK/DFW/DHN-PROXIMITY-REFLECTOR-OPAQUE-TOP-SIDE-SCREEN-120V-T38MM-89MMMOL-44.5MMLCL-C-13D-3200K-25H-HORIZ-1000183 USHIO | DEK/DFW/DLN | DEK5/DFW5 | DEK500/25HOURS EIKO |
| DFW/DEK/DLN | DFW/DEK/DLN ANSI | EQ-DEK ELECTROQUIP | G17Q-120V-500W-PROJECTION ELECTROQUIP |
| G17Q7-500W-DEK/DFW/DHN-PROXIMITY-REFLECTOR-OPAQUE-TOP-SIDE-SCREEN-120V-T38MM-89MMMOL-44.5MMLCL-C-13D-3200K-25H-HORIZ-1000183 BLV | G17Q7-500W-DEK/DFW/DHN-PROXIMITY-REFLECTOR-OPAQUE-TOP-SIDE-SCREEN-120V-T38MM-89MMMOL-44.5MMLCL-C-13D-3200K-25H-HORIZ-1000183 USHIO | I/120V/500W/G17Q-A2A/T12/C13D/OT/25H/DEK-120V | I/120V/500W/G17Q-A2A/T12/OT/25H/DEK-120V |
| I/120V/500W/G17Q/T12/25H | I/120V/500W/G17Q/T12/C13D/OT/25H/DEK-120V | I/120V/500W/G17Q/T12/OT/25H/DEK-120V | I/125V/500W/G17Q-A2A/T12/C13D/OT/25H/DEK-125V |
| I/125V/500W/G17Q-A2A/T12/OT/25H/DEK-125V | I/125V/500W/G17Q/T12/C13D/OT/25H/DEK-125V | I/125V/500W/G17Q/T12/OT/25H/DEK-125V | INC-120V-500W-C13D-25HR/120V/500W/G17Q-7/DEK/DFW/DHN USHIO |
| INC-120V-500W-C13D-25HR/DEK/DFW/DHN USHIO | K.J-KP-TFM-12H-120 VOLT-500WATT KONDO | K.J.-KP-TFM-12H-120 VOLT-500WATT KONDO | K.J.KP-TFM12H120/500 KONDO |
| K.J.KP-TFM12H120/500W KONDO | K.J.KP-TFM12H120V500 KONDO | K.J.KP-TFM12H120V500W KONDO | K.J/KP-TFM12H120/500 KONDO |
| K.J/KP-TFM12H120/500W KONDO | K.J/KP-TFM12H120V500 KONDO | K.J/KP-TFM12H120V500W KONDO | KJ-KP-TFM-12H-120 VOLT-500WATT KONDO |
| KJ/KP-TFM12H120/500 KONDO | KJ/KP-TFM12H120/500W KONDO | KJ/KP-TFM12H120V500 KONDO | KJ/KP-TFM12H120V500W KONDO |
| KP-TFM-12-HS KONDO | KP-TFM-12-HS-120 VOLT-500WATT KONDO | KP-TFM/12H KONDO | KP/TFM12HS120/500 KONDO |
| KP/TFM12HS120/500W KONDO | KP/TFM12HS120V500 KONDO | KP/TFM12HS120V500W KONDO | KPTFM-12H/120V/500W KONDO |
| PROJECTION/120V/500W/G17Q/25H ELECTROQUIP | SP500T12G17QA2AC13DOT120V-DEK-120V | SP500T12G17QA2AC13DOT125V-DEK-125V | SP500T12G17QA2AOT120V-DEK-120V |
| SP500T12G17QA2AOT125V-DEK-125V | SP500T12G17QC13DOT120V-DEK-120V | SP500T12G17QC13DOT125V-DEK-125V | SP500T12G17QOT120V-DEK-120V |
| SP500T12G17QOT125V-DEK-125V | T-12/500W120V/G17Q/DEK/DFW/DHN STANDARDPRO | ||
