DEP ANSI Code

DEP ANSI is a T12 lamp with a G17q-A24A base operating at 750 watts and 125 volts. It has a color temperature of 3275 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DEP lamps.

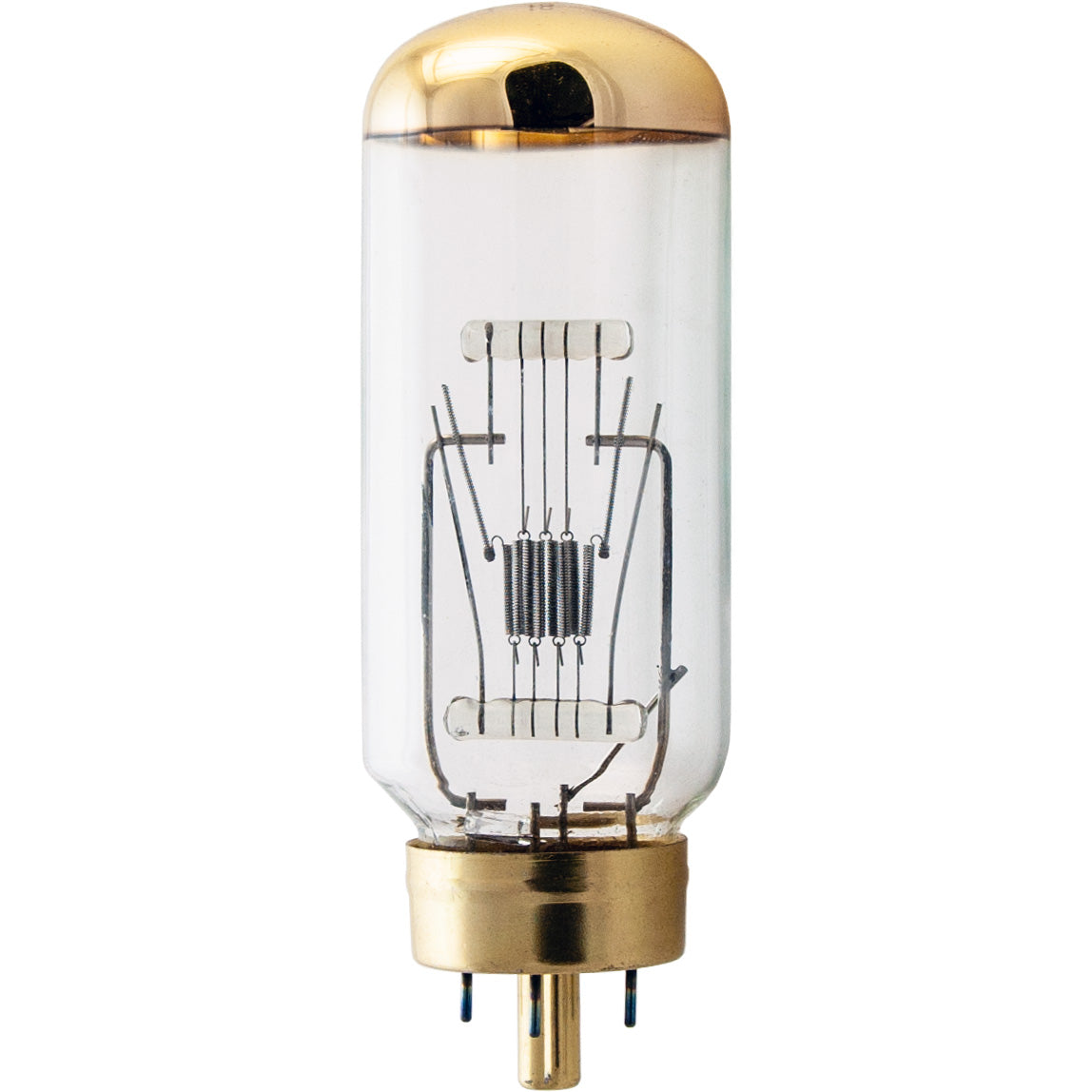

DEP Photograph

DEP

Electrical Specifications

Amps6
Volts125
Watts750

Photometrics

Candlepower1500
Color Temperature3275
Light Center Length (LCL)1 9/16
Lumens20100

Physical Characteristics

BaseG17q-A24A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)4 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeDEP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution DGR

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDEP750W, 120V
Eiko01365DEP
Microlites120-750-31P
Microlites125-750-31P
Canimpex120-750-31P
Canimpex125-750-31P

Equipment Used In

BrandModelType
Graflex School-Master 1000
Graflex School-Master 750
Hoover Brothers Strip Master Projector
Singer Corporation School Master 750-RC
Singer Corporation School Master 750

DEP may also be listed as:
01365 UPC01365 WIKO29825 GENERAL-ELECTRIC3129301365 WIKO
73520 SYLVANIA750-T12-G17Q-120750-T12-G17Q-120V750-T12-G17Q-DEP SYLVANIA
750-T12-TF-120750-T12-TF-120V750-T12-TF-DEP SYLVANIA750-T12-TRUE-FOCUS-120
750-T12-TRUE-FOCUS-120V750-T12-TRUE-FOCUS-DEP SYLVANIA750/T12G17Q125750/T12G17Q125V
750/T12TF125750/T12TF125V750T12TRUE-FOCUS125750T12TRUE-FOCUS125V
750WATT-T12-G17Q-120 VOLT750WATT-T12-G17Q-125VOLT750WATT-T12-G17Q-DEP SYLVANIABW-DEP
DEP ANSIDEP ASADEP GENERAL-ELECTRICDEP INTERLIGHT
DEP LAMPTECHDEP MICROLAMPDEP SYLVANIADEP WIKO
DEP-120 ANSIDEP-120 ASADEP-120 VOLT ANSIDEP-120 VOLT ASA
DEP-120V ANSIDEP-120V ASADEP-120V-750WDEP-120V-750W ANSI
DEP-120V-750W ASADEP-120V-750W-G17Q-T12-C13D-GOLD/BLUE-TOP-19000L-3250K-25H-BD-4-5/8MOL-1-9/16LCL-I-FILM-STRIP-CLEAR-BULB-LUMENS-HIGHDEP-120V/120V/750W/G17Q ANSIDEP-125V
DEP-125V ANSIDEP-125V ASADEP-125V-750WDEP-125V-750W ANSI
DEP-125V-750W ASADEP-125V/125V/750W/G17Q ANSIDEP-125VOLT ANSIDEP-125VOLT ASA
DEP-5 ANSIDEP-5 ASADEP-5-DGR-5 ANSIDEP-5-DGR-5 ASA
DEP-DGR ANSIDEP-DGR ASADEP-DGR SYLVANIADEP-DGR-5
DEP/120V GENERAL-ELECTRICDEP/120V/750W/G17Q ANSIDEP/125DEP/125 ANSI
DEP/125 ASADEP/125V/750W/G17Q ANSIDEP/5DEP/750W-120V-G17Q-7 LAMPTECH
DEP/DGR INTERLIGHTDEP/DGR MICROLAMPDEP5/DGR5DGR/DEP ANSI
I/120V/750W/G17Q-A24A/T12/C13D/OT/25H/DEP-120VI/120V/750W/G17Q-A24A/T12/OT/25H/DEP-120VI/120V/750W/G17Q/T12/C13D/OT/25H/DEP-120VI/120V/750W/G17Q/T12/OT/25H/DEP-120V
I/125V/750W/G17Q-A24A/T12/C13D/OT/25H/DEP-125VI/125V/750W/G17Q-A24A/T12/OT/25H/DEP-125VI/125V/750W/G17Q/T12/C13D/OT/25H/DEP-125VI/125V/750W/G17Q/T12/OT/25H/DEP-125V
KP-CVG-12 KONDOKP-S-12 KONDOKP-SL-12 KONDOKP-STG-12 KONDO
KP-TC-12 KONDOKP-TC-12-100-120 VOLT-750WATT KONDOKP-TC-12-100-125VOLT-750WATTKP-TF-12 KONDO
KP-TS-12 KONDOKP/CVG12/100/125/750KP/CVG12/100/125/750WKP/CVG12/100/125V750
KP/CVG12/100/125V750WKP/S12/100/125/750KP/S12/100/125/750WKP/S12/100/125V750
KP/S12/100/125V750WKP/SL12/100/125/750KP/SL12/100/125/750WKP/SL12/100/125V750
KP/SL12/100/125V750WKP/STG12/100/125/750KP/STG12/100/125/750WKP/STG12/100/125V750
KP/STG12/100/125V750WKP/TC12/100/125/750KP/TC12/100/125/750WKP/TC12/100/125V750
KP/TC12/100/125V750WKP/TF12/100/125/750KP/TF12/100/125/750WKP/TF12/100/125V750
KP/TF12/100/125V750WKP/TS12/100/125/750KP/TS12/100/125/750WKP/TS12/100/125V750
KP/TS12/100/125V750WKPCVG12-100-120-750 KONDOKPCVG12-100-120-750W KONDOKPCVG12-100-120V750 KONDO
KPCVG12-100-120V750W KONDOKPS12-100-120-750 KONDOKPS12-100-120-750W KONDOKPS12-100-120V750 KONDO
KPS12-100-120V750W KONDOKPSL12-100-120-750 KONDOKPSL12-100-120-750W KONDOKPSL12-100-120V750 KONDO
KPSL12-100-120V750W KONDOKPSTG12-100-120-750 KONDOKPSTG12-100-120-750W KONDOKPSTG12-100-120V750 KONDO
KPSTG12-100-120V750W KONDOKPTC12-100-120-750 KONDOKPTC12-100-120-750W KONDOKPTC12-100-120V750 KONDO
KPTC12-100-120V750W KONDOKPTF12-100-120-750 KONDOKPTF12-100-120-750W KONDOKPTF12-100-120V750 KONDO
KPTF12-100-120V750W KONDOKPTS12-100-120-750 KONDOKPTS12-100-120-750W KONDOKPTS12-100-120V750 KONDO
KPTS12-100-120V750W KONDOSP750T12G17QA24AC13DOT120V-DEP-120VSP750T12G17QA24AC13DOT125V-DEP-125VSP750T12G17QA24AOT120V-DEP-120V
SP750T12G17QA24AOT125V-DEP-125VSP750T12G17QC13DOT120V-DEP-120VSP750T12G17QC13DOT125V-DEP-125VSP750T12G17QOT120V-DEP-120V
SP750T12G17QOT125V-DEP-125V
