DER ANSI Code

DER ANSI is a T12 lamp with a G17q-A2B base operating at 500 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Obscured Top finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DER lamps.

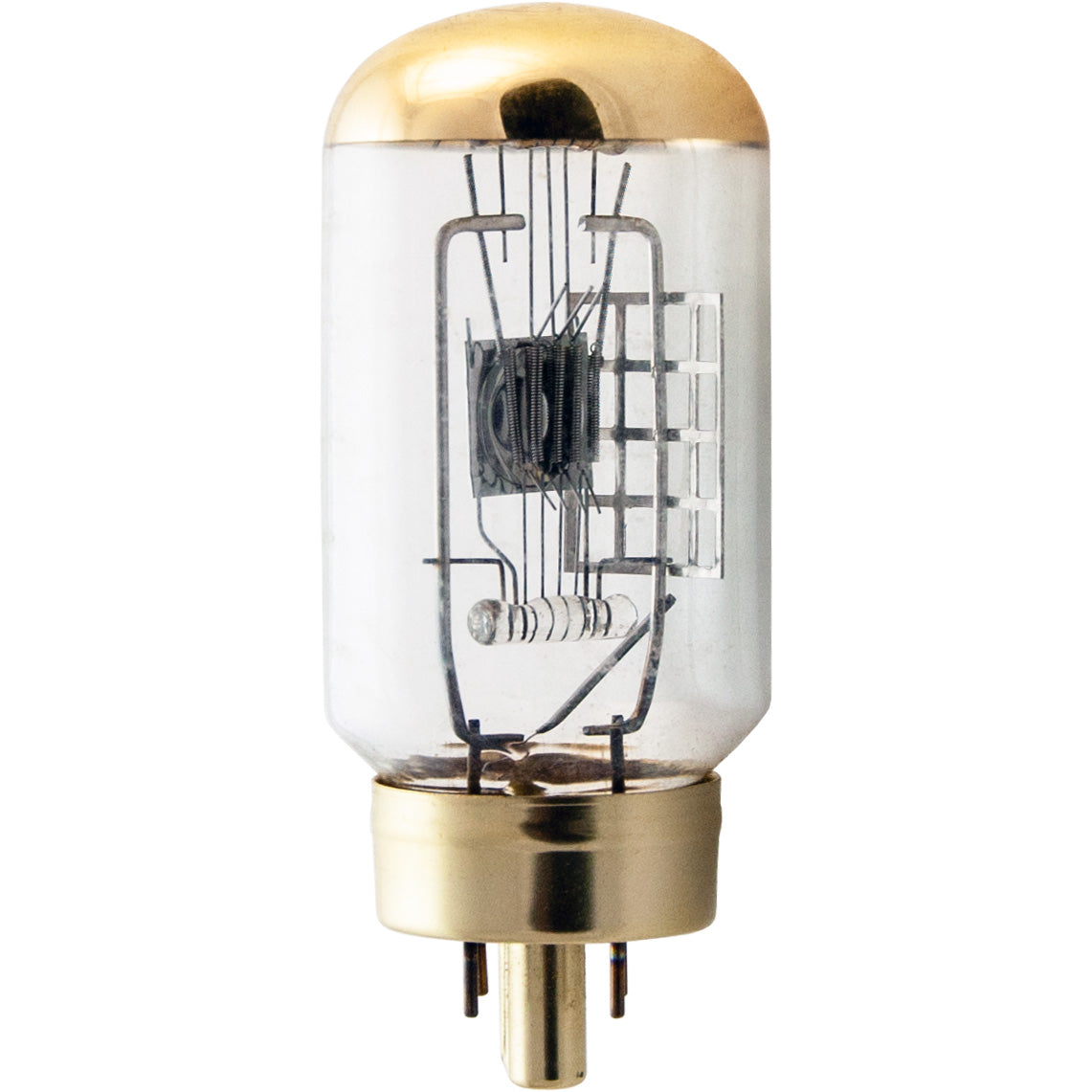

DER Photograph

DER

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Color Temperature3000
Light Center Length (LCL)1 3/4
Lumens10000

Physical Characteristics

BaseG17q-A2B
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 45/64

Operating Characteristics

Burn PositionHorizontal
Life Hours200

General Information
Lamp CodeDER
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDER
