DES ANSI Code

DES ANSI is a T12 lamp with a P46l base operating at 750 watts and 110 volts. It has a color temperature of 3275 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DES lamps.

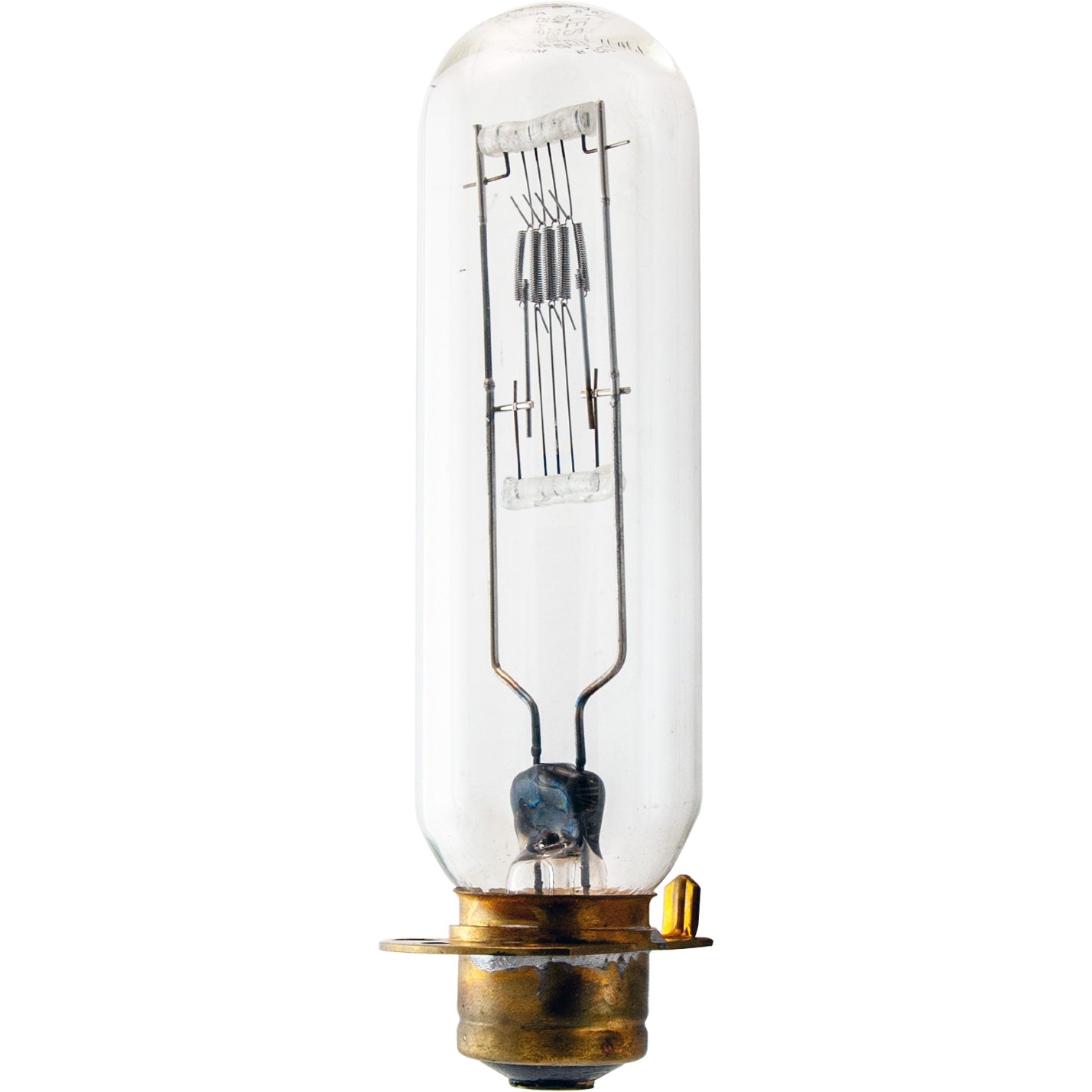

DES Photograph

DES

Electrical Specifications

Amps6.82
Volts110
Watts750

Photometrics

Candlepower1600
Color Temperature3275
Light Center Length (LCL)4
Lumens20100

Physical Characteristics

BaseP46l
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)5 7/8

Operating Characteristics

Burn PositionBase Up
Life Hours25

General Information
Lamp CodeDES
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDES750W, 120V

Equipment Used In

BrandModelType
Bell and Howell JAN Military D-4
Bell and Howell Filmo Picture Master 151
Bell and Howell Filmo Picture Master 15 (all)
Bell and Howell Filmo Picture Master 151-A
Bell and Howell Slidemaster 154A
Osawa Filmo Picture Master 151 Projector
