DFF ANSI Code

DFF ANSI is a T12 lamp with a G17q-D2 base operating at 150 watts and 120 volts. It has a color temperature of 2850 Kelvin. It has a Obscured Top finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFF lamps.

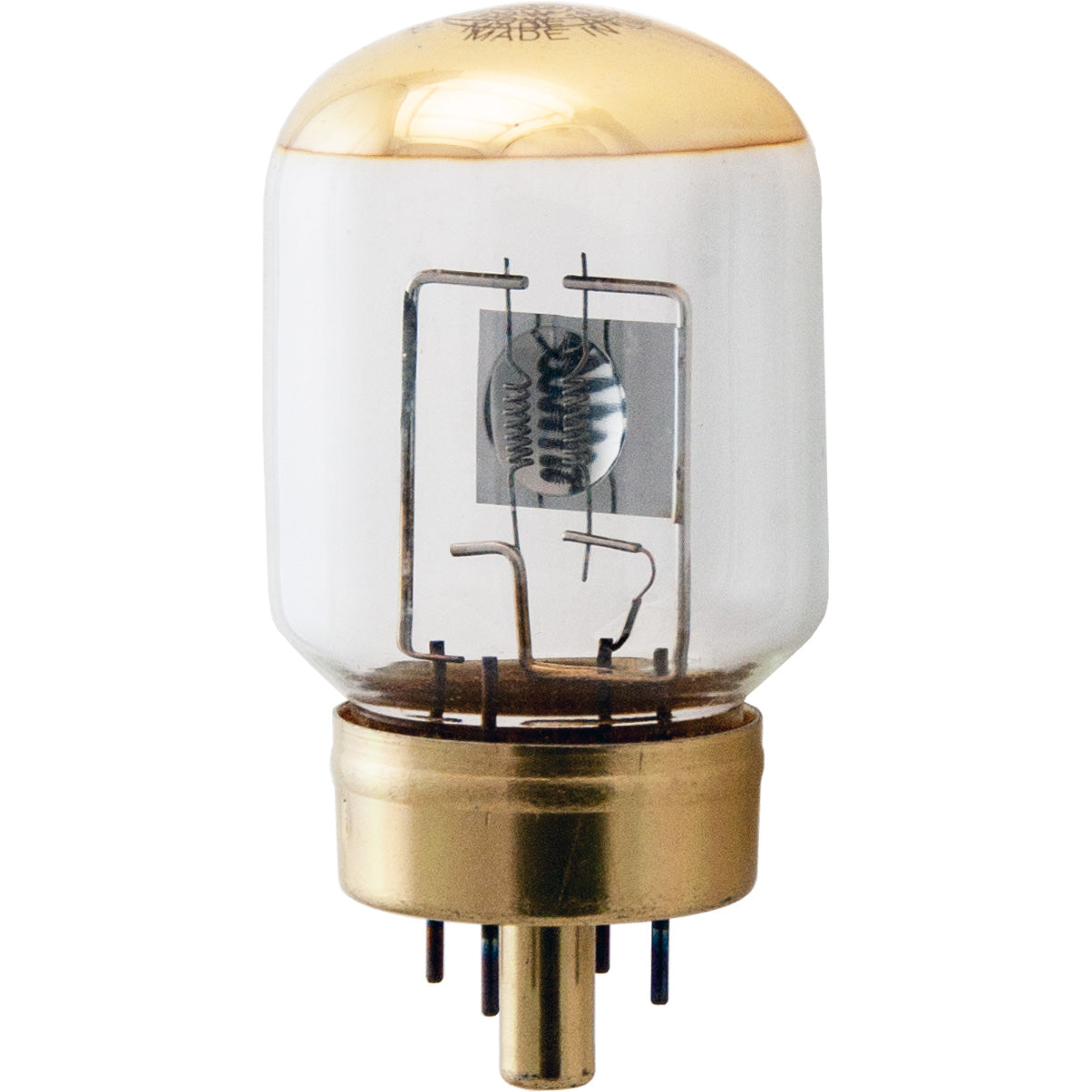

DFF Photograph

DFF

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature2850
Light Center Length (LCL)1 5/16

Physical Characteristics

BaseG17q-D2
Bulb ShapeT12
Filament2CC-8
FinishObscured Top
Max Overall Length (MOL)3 1/32

Operating Characteristics

Burn PositionVBD
Life Hours500

General Information
Lamp CodeDFF
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDFF120V 150W
EikoDFF (WIKO)
Microlites120-150-31F
Canimpex120-150-31F

Equipment Used In

BrandModelType
3M Aperture Card Inserter SAM039
Eastman Kodak Audioviewer 450
Eastman Kodak Audioviewer 200
Eastman Kodak Brightlight Modules Audio Viewer 200
Eastman Kodak Audioviewer 400
Eastman Kodak Brightlight Modules Audio Viewer 400
Eastman Kodak Autoviewer 250
Hudson Photographic Industries (HPI) Prima 350 Projector
Hudson Photographic Industries (HPI) Prima 356-2 Projector
Hudson Photographic Industries (HPI) Prima 351-2 Projector
Hudson Photographic Industries (HPI) Prima 355 Projector
Radmar N-150
Radmar N-3
Radmar Model 1500
Radmar N-150-3
Realist 3310
Realist Swinger 3330
Singer Corporation Caramate I
Singer Corporation Graflex
Singer Corporation Caramate II
Standard Projector & Equipment 333-N Projector Slide / Filmstrip
Standard Projector & Equipment 333-C Projector Slide / Filmstrip
Standard Projector & Equipment 333 Projector Slide / Filmstrip
Standard Projector & Equipment 444 Projector Opaque / Transparency
Standard Projector & Equipment 331 Projector Opaque / Transparency
Standard Projector & Equipment 333-RC Projector Slide / Filmstrip
Standard Projector & Equipment 333-CN Projector Slide / Filmstrip
Standard Projector & Equipment 150-F Projector Slide / Filmstrip
Viewlex V-803 Projector Slide / Filmstrip
Viewlex V-802 Projector Slide / Filmstrip

DFF may also be listed as:
150-T12-G17Q-5 SYLVANIA150-T12-TF-5 SYLVANIA150T12TRUE-FOCUS5 SYLVANIA150WATT-T12-G17Q-5 SYLVANIA
73160 SYLVANIA78-8454-3462 3MDFFDFF ANSI
DFF ASADFF GENERAL-ELECTRICDFF INTERLIGHTDFF MICROLAMP
DFF SYLVANIADFF-120 ANSIDFF-120 ASADFF-120 VOLT ANSI
DFF-120 VOLT ASADFF-120VDFF-120V ANSIDFF-120V ASA
DFF-120V-150WDFF-120V-150W ANSIDFF-120V-150W ASADFF-120V-150W-G17Q-T12-2CC8-GOLD-TOP-2850K-500H-BD-3-1/32MOL-1-5/16LCL-I-SLIDE-FILM-STRIP-PROJECTOR-PROXIMITY-REFLECTOR
DFF-120V/120V/150W/G17Q ANSIDFF/120DFF/120V/150W/G17Q ANSIEQ-DFF ELECTROQUIP
EQ-DFF/G17Q-120V-150W ELECTROQUIPGMJI/120V/150W/G17Q-D2/T12/2CC8/OT/500HI/120V/150W/G17Q-D2/T12/2CC8/OT/500H/DFF
I/120V/150W/G17Q-D2/T12/OT/500HI/120V/150W/G17Q-D2/T12/OT/500H/DFFI/120V/150W/G17Q/T12/2CC8/OT/500HI/120V/150W/G17Q/T12/2CC8/OT/500H/DFF
I/120V/150W/G17Q/T12/OT/500H/DFFPROJECTION/120V/150W/G17Q/500H ELECTROQUIPSP150T12G17Q-D22CC8OT120VSP150T12G17Q-D2OT120V
SP150T12G17Q2CC8OT120VSP150T12G17Q2CC8OT120V-DFFSP150T12G17QD22CC8OT120V-DFFSP150T12G17QD2OT120V-DFF
SP150T12G17QOT120V-DFF
