DFK ANSI Code

DFK ANSI is a T12 lamp with a P46l base operating at 1000 watts and 120 volts. It has a color temperature of 3375 Kelvin. It has a Obscured top finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFK lamps.

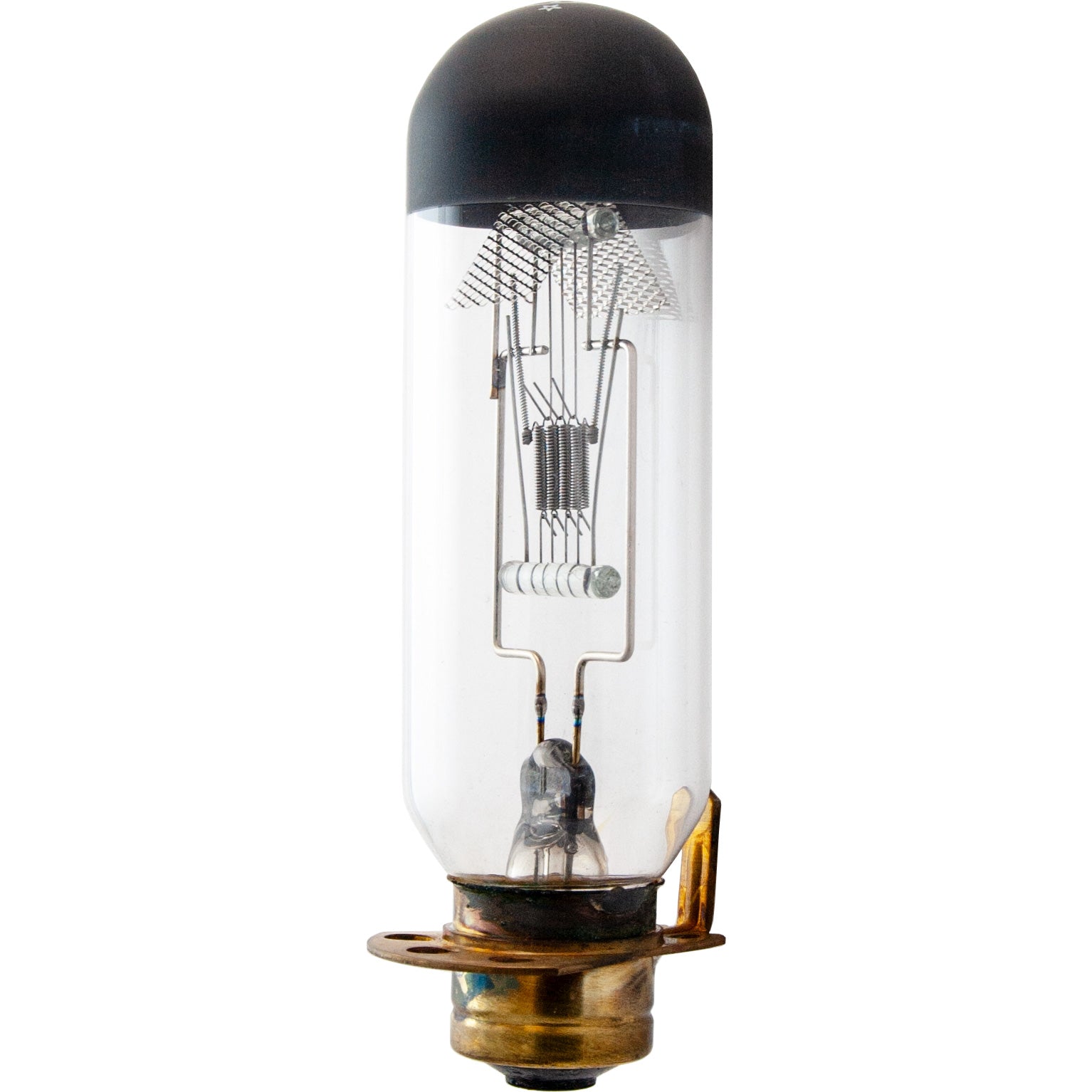

DFK Photograph

DFK

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2400
Color Temperature3375
Light Center Length (LCL)2 5/16
Lumens30500

Physical Characteristics

BaseP46l
Bulb ShapeT12
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)5 1/2

Operating Characteristics

Burn PositionBase Down
Life Hours10

General Information
Lamp CodeDFK
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-153-3048, 6240-00-299-5920

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDFK1000W, 115-120V

Equipment Used In

BrandModelType
Bell and Howell Filmosound 156
Bell and Howell Filmosound 398
Bell and Howell Filmosound 195
Bell and Howell Filmosound 399
Bell and Howell Filmosound 179
Bell and Howell Filmosound 285
Bell and Howell Filmosound 384
Bell and Howell Filmosound 385
Bell and Howell Filmosound 185
Bell and Howell Filmosound 202
Bell and Howell Filmosound 302
Eastman Kodak Instamatic M-68
Eastman Kodak M-68
Eastman Kodak Chevron M68

DFK may also be listed as:
03923 BELL-HOWELL1000-C-5 SYLVANIA1000/C51000T12-3LR SYLVANIA
1000T12-3LR WESTINGHOUSE1000T12-3LR115 SYLVANIA1000T12-3LR115 WESTINGHOUSE1000T12-3LR115V SYLVANIA
1000T12-3LR115V WESTINGHOUSE1000T12-3LR120 WESTINGHOUSE1000T12-3LR120V WESTINGHOUSE1000T12/3LR
1000T12/3LR1201000T12/3LR120V1000W/T12/3LR1000WATT-C-5 SYLVANIA
1000WATT-T12-3-LARGE-RING SYLVANIA1000WATT-T12-3-LARGE-RING WESTINGHOUSE1000WATT-T12-3-LARGE-RING-115VOLT SYLVANIA1000WATT-T12-3-LARGE-RING-115VOLT WESTINGHOUSE
1000WATT-T12-3-LARGE-RING-120 VOLT WESTINGHOUSE120-1000K1M/T12/3LR GENERAL-ELECTRIC1M/T12/3LR WESTINGHOUSE
1MT12/3LR58.8985-1C6240-00-153-30486240-00-299-5920
72615 SYLVANIABW-DFKDFKDFK ANSI
DFK ASADFK GENERAL-ELECTRICDFK INTERLIGHTDFK LAMPTECH
DFK MICROLAMPDFK SYLVANIADFK WESTINGHOUSEDFK WIKO
DFK-120 ANSIDFK-120 ASADFK-120 VOLT ANSIDFK-120 VOLT ASA
DFK-120VDFK-120V ANSIDFK-120V ASADFK-120V-1000W
DFK-120V-1000W ANSIDFK-120V-1000W ASADFK-120V-1000W-P46S-T12-C13D-OBSCURED-TOP-30500L-3375K-10H-BD-5-1/2MOL-2-5/16LCL-I-16MM-B-H-MOVIE-PROJECTOR-CLEAR-BULB-LUMENS-HIGHDFK-120V/120V/1000W/P46L ANSI
DFK-DFY SYLVANIADFK/1000W-120V-SPCL-BASE-T12 LAMPTECHDFK/120DFK/120V GENERAL-ELECTRIC
DFK/120V/1000W/P46L ANSII/120V/1000W/P46L/T12/C13D/OT/10HI/120V/1000W/P46L/T12/C13D/OT/10H/DFKI/120V/1000W/P46L/T12/OT/10H
I/120V/1000W/P46L/T12/OT/10H/DFKKP-B-46-100-120 VOLT-1000WATTKP-B-46-1000WATT KONDOKPB46-100-120-1000
KPB46-100-120-1000WKPB46-100-120V1000KPB46-100-120V1000WKPB46-1000 KONDO
KPB46-1000W KONDOPH-1000WATT-T12-3-LARGE-RING WESTINGHOUSEPH-1000WATT-T12-3-LARGE-RING-115VOLT WESTINGHOUSEPH-1000WATT-T12-3-LARGE-RING-120 VOLT
PH/1000W/T12/3LRPH/1M/T12/3LR GENERAL-ELECTRICPH/1M/T12/3LR WESTINGHOUSEPH1000T12-3LR WESTINGHOUSE
PH1000T12-3LR115 WESTINGHOUSEPH1000T12-3LR115V WESTINGHOUSEPH1000T12-3LR120PH1000T12-3LR120V
PH1000WT12-3LR WESTINGHOUSEPH1000WT12-3LR115 WESTINGHOUSEPH1000WT12-3LR115V WESTINGHOUSEPH1000WT12-3LR120
PH1000WT12-3LR120VPXEX RADIANTPXEX-120V RADIANTSP1000T12P46LC13DOT120V-DFK
SP1000T12P46LOT120V-DFK
