DFN ANSI Code

DFN ANSI is a T12 lamp with a G17q-A23 base operating at 150 watts and 125 volts. It has a color temperature of 3150 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFN lamps.

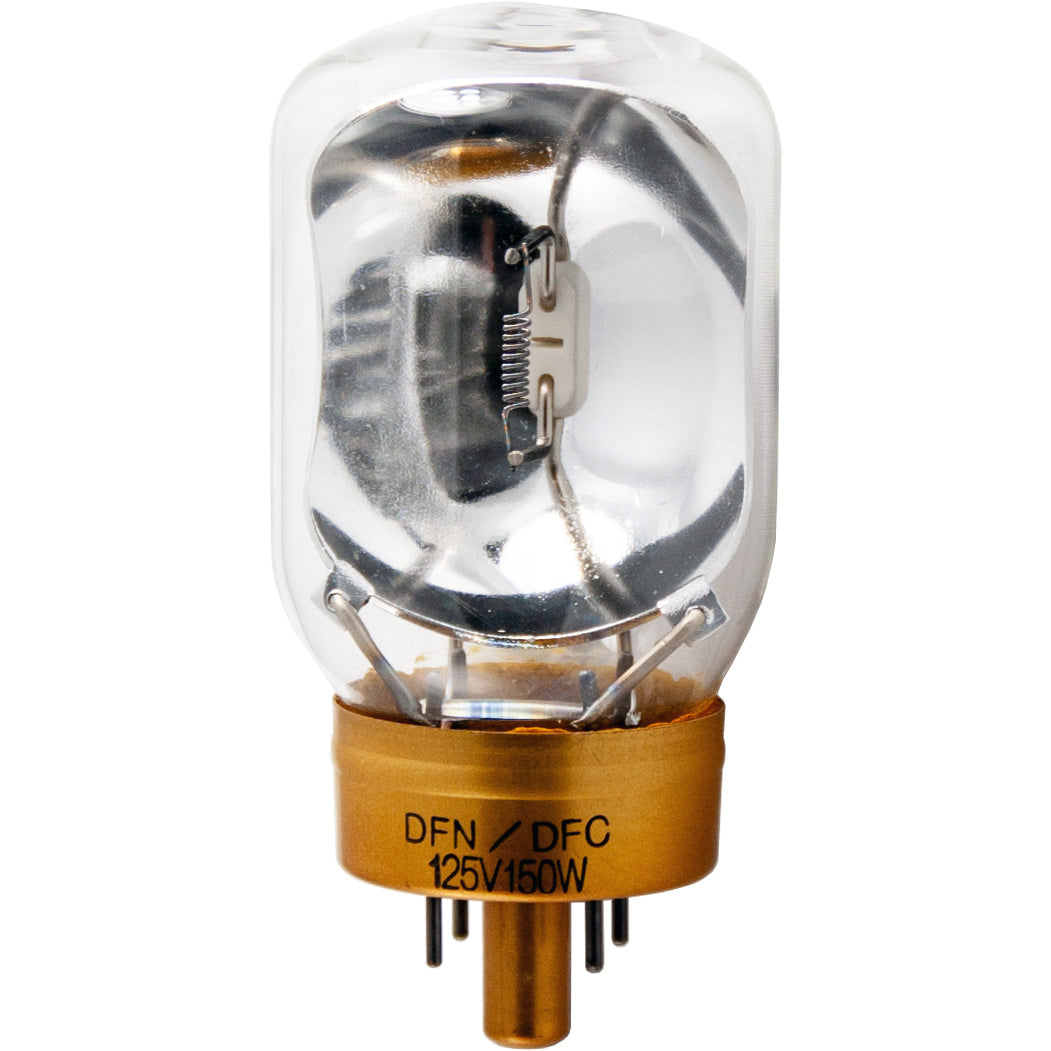

DFN Photograph

DFN

Electrical Specifications

Amps1.2
Volts125
Watts150

Photometrics

Color Temperature3150
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-A23
Bulb ShapeT12
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/16

Operating Characteristics

Burn PositionBDTH
Life Hours15

General Information
Lamp CodeDFN
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsDFC

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G17q-A23 Base

G17q-A23

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EikoDFC (WIKO)
Microlites125-150-31
Canimpex125-150-31

Equipment Used In

BrandModelType
Bell and Howell Monterey 254-R (serials over 52511)
Bell and Howell Monterey 253-AR (serials over 67796)
Bell and Howell Autoload 245 (serials over 52511)
Bell and Howell Autoload R
Bell and Howell Autoload 245-R (serials over 52511)
Bell and Howell Autoload 248-BAY
Bell and Howell Monterey 253-AX (serials over AR25400)
Bell and Howell Autoload 245-BAY (serials over 52511)
Bell and Howell Autoload 245-BA (serials over 52511)
Bell and Howell Autoload 248-R (serials over 52511)
Bell and Howell Autoload 245-BAY
Bell and Howell Autoload 245
Bell and Howell Monterey Super 253-AX
Bell and Howell Autoload 254-RA
Bell and Howell Monterey 245
Bell and Howell Monterey 253-A
Bell and Howell Monterey 253-A (serials over 67796)
Bell and Howell Monterey 254-R (serials over AN52511)
Bell and Howell Autoload 254-RS (serials over 52511)
Bell and Howell Autoload 254-RA (serials over 52511)
Bell and Howell Autoload 256
Bell and Howell Autoload 254-RS
Bell and Howell Autoload 245-BA
Bell and Howell Autoload 245-PAY
Bell and Howell Autoload 245-PAY (serials over 52511)
Bell and Howell Monterey 253-AX (serials over 91588)
Bell and Howell Autoload 248
Bell and Howell Autoload 254-R
Cavalier 8mm Projector
Eastman Kodak Chevron Instamatic M65A
Eastman Kodak Chevron Instamatic M65K
Eastman Kodak Ektagraphic Silent 8
Eastman Kodak Brownie E
Eastman Kodak Chevron Sound 8
Eastman Kodak Chevron Instamatic M60
Eastman Kodak Brownie A-15
Eastman Kodak Instamatic M-68
Eastman Kodak Chevron Instamatic M60A
Eastman Kodak Chevron Instamatic M50A
Eastman Kodak Instamatic M-60
Eastman Kodak Brownie F
Eastman Kodak Instamatic A
Eastman Kodak Sound 8 8
Eastman Kodak Ektagraphic Silent
Eastman Kodak Instamatic M-50
Eastman Kodak Chevron Ektagraphic 8
Eastman Kodak Chevron Instamatic M50K
Eastman Kodak M-68
Eastman Kodak Chevron Ektagraphic Sound-8
Eastman Kodak Chevron Instamatic M65
Eastman Kodak Instamatic M-65
Eastman Kodak Chevron Silent
Eastman Kodak Chevron Zoom
Eastman Kodak Chevron M68
Eastman Kodak Silent 8
Eastman Kodak Brownie 8-A-15
Eastman Kodak Instamatic K
Eastman Kodak Chevron Instamatic M50
Eastman Kodak Ektagraphic Sound 8
Eastman Kodak Chevron Instamatic M60K
Osawa Autoload 254-RA Projector
Osawa Monterey 253-A (serials over 67796) Projector
Osawa Autoload 256 Projector
Osawa Autoload 245-BA Projector
Osawa Monterey 253-AX (serials over 91588) Projector
Osawa Autoload 254-R Projector
Osawa Autoload 248 Projector
Osawa Autoload 363 Projector
Osawa Autoload 248-BAY Projector
Osawa Autoload 266-Y Projector
Osawa Autoload 254-RS Projector
Osawa Autoload 245-BAY Projector
Osawa Autoload 266-A Projector
Osawa Autoload 245-R (serials over 52511) Projector
Osawa Autoload 245-PAY Projector
Osawa Monterey 254-R (serials over AN52511) Projector
Osawa Autoload 245 Projector
Osawa Autoload 266 Projector
Sears Roebuck Automatic 9271 Projector Slide / Filmstrip
Sears Roebuck Automatic 9270 Projector Slide / Filmstrip
Sears Roebuck 152 TOWER Projector Slide / Filmstrip
Sears Roebuck Automatic 9292 Projector Slide / Filmstrip
Tower 584.92830 TOWER AUTOMATIC
