DFT ANSI Code

DFT ANSI is a T12 lamp with a P28s base operating at 1000 watts and 130 volts. It has a color temperature of 3280 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFT lamps.

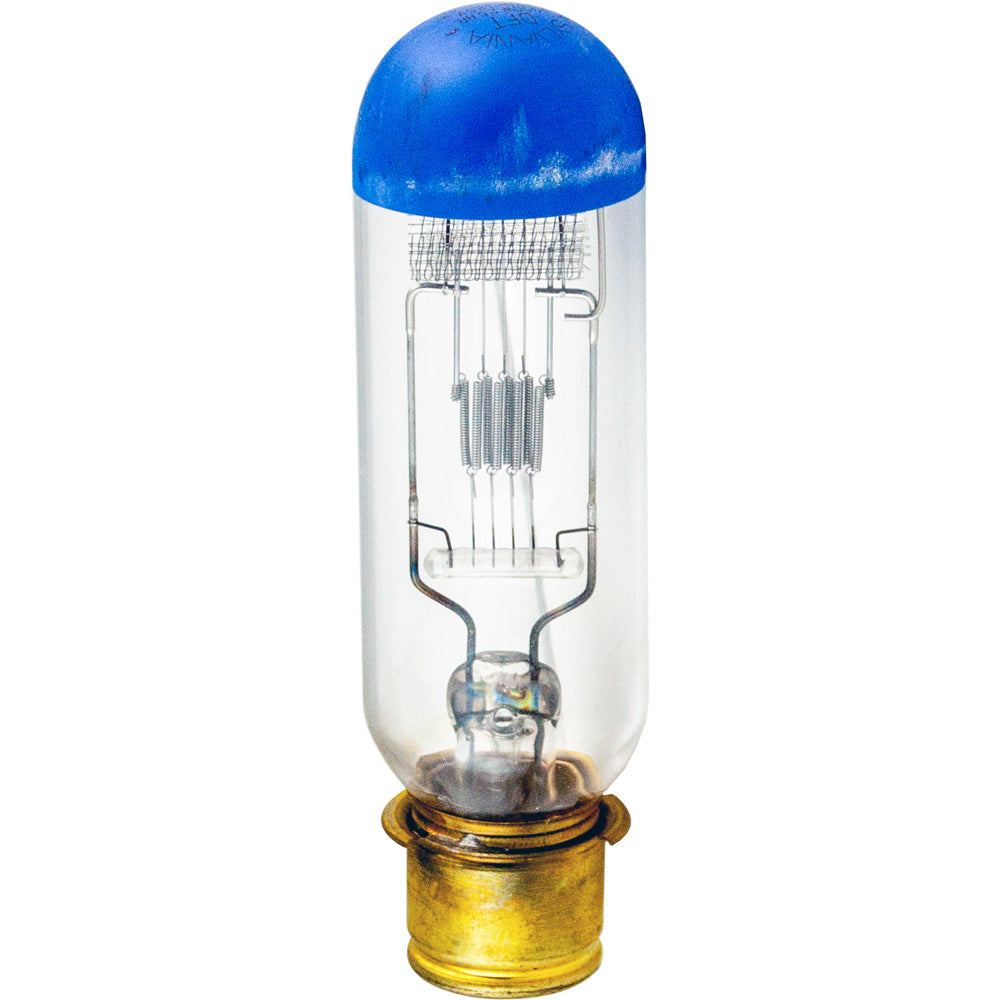

DFT Photograph

DFT

Electrical Specifications

Amps7.69
Volts130
Watts1000

Photometrics

Candlepower2100
Color Temperature3280
Light Center Length (LCL)2 3/16
Lumens28000

Physical Characteristics

BaseP28s
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionVBD
Life Hours25

General Information
Lamp CodeDFT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDFT1000W, 130V
Microlites110-1000-63
Microlites115-1000-63
Microlites115-1000-63T
Microlites120-1000-63
Microlites120-1000-63T
Microlites125-1000-63
Microlites125-1000-63T
Canimpex110-1000-63
Canimpex115-1000-63
Canimpex115-1000-63T
Canimpex120-1000-63
Canimpex120-1000-63T
Canimpex125-1000-63
Canimpex125-1000-63T

Equipment Used In

BrandModelType
Aldis Brothers Limited One Thousand Projector
Aldis Brothers Limited Super Six 1000 Projector
Aldis Brothers Limited Aldiscope 1000 Projector
Aldis Brothers Limited Star 1000 Projector
Ampro Corporation New Educational Deluxe Projector
Ampro Corporation Stylist Universal Projector
Bauer P5-M15
Bauer PV-M-15
Bell and Howell JAN 614-CBM
Bell and Howell JAN Military 614-EVMF
Bell and Howell JAN Military 614-AE
Bell and Howell JAN Military 614-DB
Bell and Howell JAN 614-CEM
Bell and Howell JAN Military 614-ETVS
Bell and Howell JAN Military 614-CDM
Bell and Howell JAN Military 614-CBX
Bell and Howell JAN Military 614-CBM
Bell and Howell JAN Military 614-ADS
Bell and Howell JAN Military 614-BB
Bell and Howell JAN 614-CB
Bell and Howell JAN Military 614-CDVX
Bell and Howell JAN Military 614-CDTV
Bell and Howell JAN Military 614-EVMR
Bell and Howell JAN 614-CE
Bell and Howell JAN Military 614-A
Bell and Howell JAN Military 614-ADRM
Bell and Howell JAN Military 614-CBTV
Bell and Howell JAN Military 614-CD
Bell and Howell JAN Military 614-EVMS
Bell and Howell JAN Military 614-AC
Bell and Howell JAN 614-CD
Bell and Howell JAN Military 614-CEM
Bell and Howell JAN Military 614-AD
Bell and Howell JAN Military 614-ETVF
Bell and Howell JAN 614-CBRM
Bell and Howell JAN Military 614-AES
Bell and Howell JAN Military 614-CDVM
Bell and Howell JAN Military 614-ADL
Bell and Howell JAN Military 614-AB
Bell and Howell JAN Military 614-CE
Bell and Howell JAN Military 614
Bell and Howell JAN Military 614-CBVS
Bell and Howell JAN 614
Bell and Howell JAN Military 614-CBRM
Bell and Howell JAN Military 614-CDVS
Bell and Howell JAN Military 614-CB
Bolex S-211
Bolex S-221
Bolex S-311
Bolex S-321
Busch Film & Equipment Two Way 6-A
Dukane Auditorium Proj. 576-39A Projector
Dukane Auditorium Proj. 576-85 Projector
Dukane Auditorium Proj. 576-39B Projector
Dukane Auditorium Proj. 576-39 Projector
EIKI MS-861
EIKI 860
EIKI MS-860
EIKI 862
EIKI 861
EIKI 863
EIKI MS-863
EIKI MS-862
Eastman Kodak Pageant Sound MF1-5
Eastman Kodak Pageant 126-TR
Eastman Kodak AV-256-TR
Eastman Kodak Pageant Sound AV-255S
Eastman Kodak Pageant Sound G1SA-2B
Eastman Kodak Pageant Sound MK-5
Eastman Kodak MF-2-5
Eastman Kodak Analyst
Eastman Kodak MF-1-5
Eastman Kodak Pageant Sound AV-105M
Eastman Kodak Pageant 256-TR
Eastman Kodak Pageant Sound AV-256TR
Eastman Kodak Pageant AV-256-TR
Eastman Kodak Pageant Sound AV-085F1
Eastman Kodak Pageant 126-TR-R
Eastman Kodak Pageant Sound MF2-5
Eastman Kodak Pageant Sound AV-126TRR
Eastman Kodak MK-5
Eastman Kodak AV-255-S
Eastman Kodak Pageant Sound 8K-5
Eastman Kodak Pageant AV-256-TR-R
Eastman Kodak Pageant 256-TR-R
Eastman Kodak Pageant Sound AV-126TR
Eastman Kodak 250S
Eastman Kodak Pageant Sound AV-085
Elmo F-16-1000-S
Elmo F-16-1000
Elmo F-16-1000-R
General Photographic Supply Star Super Six 1000
Honeywell F16-1000R
Honeywell F16-1000
International Audio Visual Ltd. 1-AV-MS-862 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-850 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-861 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-86-D Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-863 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-860 Projector Slide / Filmstrip
Karl Heitz Astrolux 125 Slide Projector
Karl Heitz Astrolux L-131 Slide Projector
Karl Heitz Astrolux L-122 Slide Projector
Karl Heitz Astrolux L-140 Slide Projector
Karl Heitz Astrolux 120-S Slide Projector
Karl Heitz Astrolux 122 Slide Projector
Keystone Camera Co. Inc. D-62 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-61 Projector Slide / Filmstrip
Paillard Bolex S-211
Paillard Bolex S-221
Paillard Bolex S-321
Paillard Bolex S-311
RCA Magnetic TP-16 Projector
RCA TP-16 Projector
Realist Stereo ST-82
Spindler & Sauppe Selectroslide SLD-1200 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SL-1200 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SLR-1200 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SLM-1200 Projector Slide / Filmstrip
Standard Projector & Equipment 1000-C Projector Opaque / Transparency

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
  • "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., .
