DFX ANSI Code

DFX ANSI is a T12 lamp with a G17q-A2A base operating at 500 watts and 230 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFX lamps.

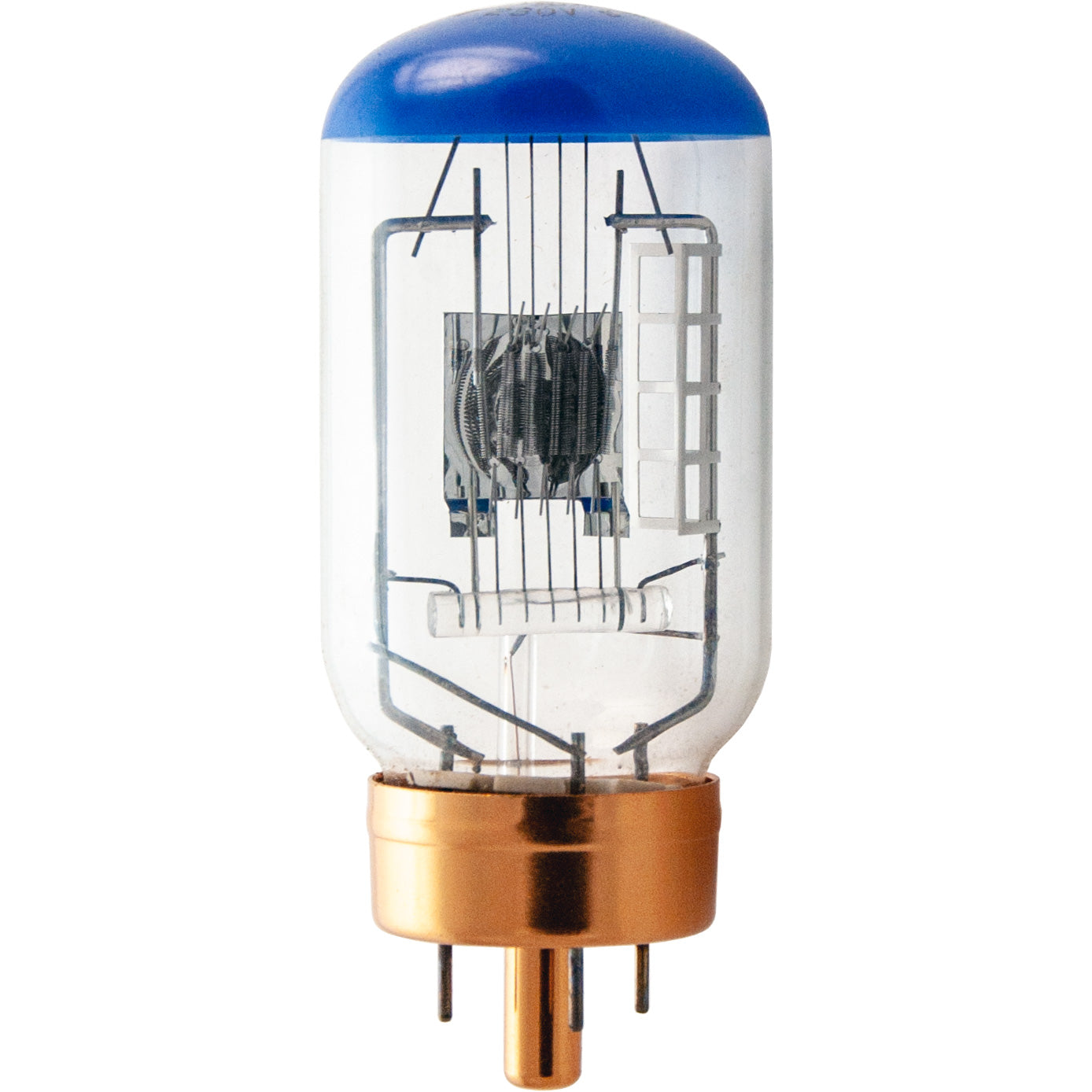

DFX Photograph

DFX

Electrical Specifications

Amps2.17
Volts230
Watts500

Photometrics

Color Temperature3150
Light Center Length (LCL)1 3/4
Lumens14500

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 45/64

Operating Characteristics

Burn PositionBD / H
Life Hours25

General Information
Lamp CodeDFX
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
MicrolitesDFY
CanimpexDFY

Equipment Used In

BrandModelType
Eastman Kodak Carousel (230 Volt)
Eastman Kodak Carousel AV-550-R
Eastman Kodak Carousel 550-R
