DFY ANSI Code

DFY ANSI is a T12 lamp with a P46l base operating at 1000 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFY lamps.

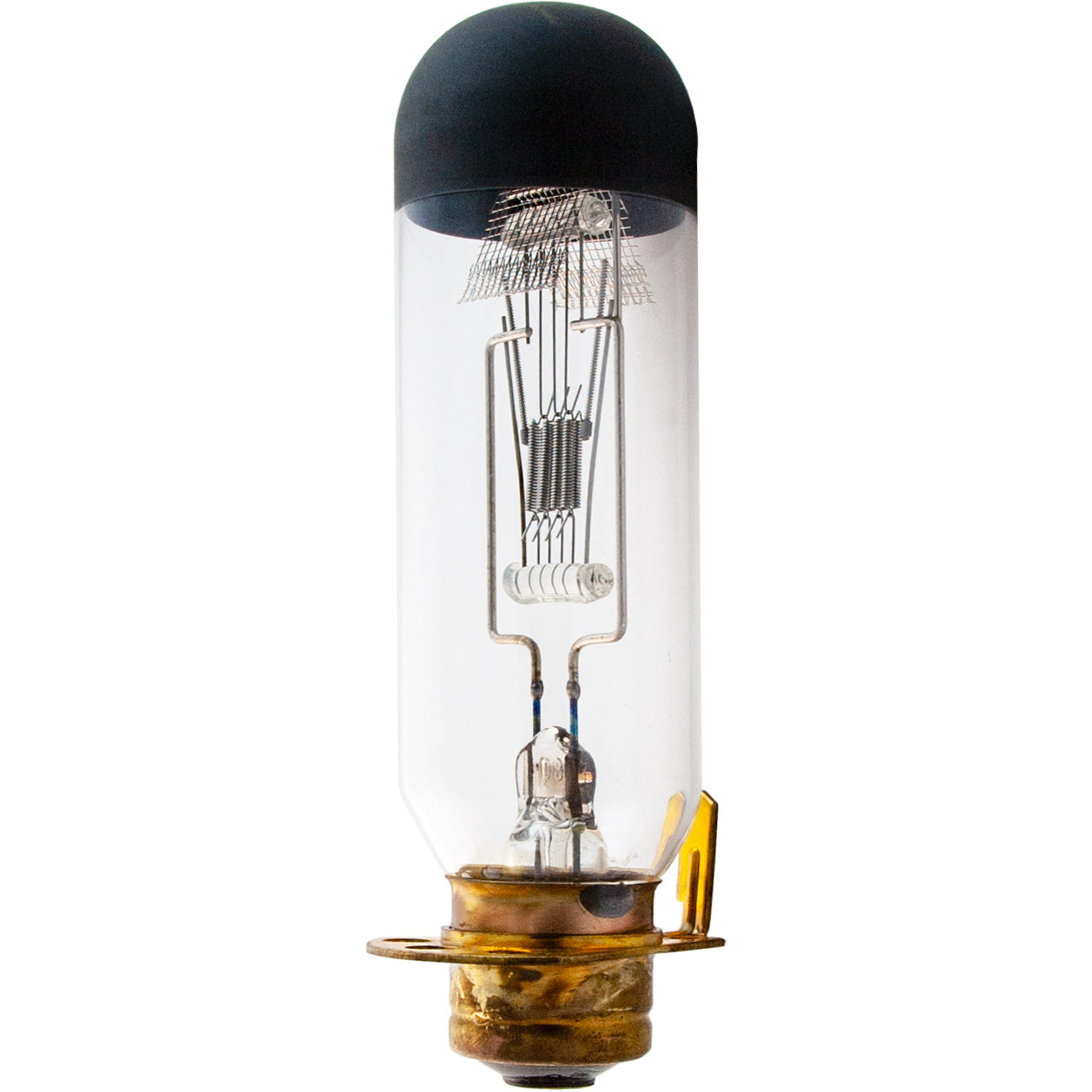

DFY Photograph

DFY

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3300
Light Center Length (LCL)2 5/16
Lumens28500

Physical Characteristics

BaseP46l
Bulb ShapeT12
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)5 1/2

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeDFY
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-504-2389

Substitution Notes
For 240V Use A1-91/240V/1000W
For 250V Use A1-91/250V/1000W

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDFY1000W, 115-120V
Microlites115-1000-84
Microlites120-1000-84
Microlites125-1000-84
MicrolitesDFY
Canimpex115-1000-84
Canimpex120-1000-84
Canimpex125-1000-84
CanimpexDFY

Equipment Used In

BrandModelType
Bell and Howell Filmosound 385
Bell and Howell Filmosound 156
Bell and Howell Filmo Diplomat 173-B
Bell and Howell Filmo Diplomat B
Bell and Howell Filmosound 202
Bell and Howell Filmosound 384
Bell and Howell 8302 Series
Bell and Howell Filmosound 399
Bell and Howell Filmosound 185
Bell and Howell Filmo Diplomat BA
Bell and Howell Filmo Diplomat BD-2
Bell and Howell Filmo Diplomat 173
Bell and Howell Filmo Auditorium B
Bell and Howell Filmo Diplomat BD
Bell and Howell Filmosound 99
Bell and Howell Filmo Auditorium A
Bell and Howell Filmosound 179
Bell and Howell Filmosound 302
Bell and Howell Filmo Diplomat BAY
Bell and Howell Auditorium A
Bell and Howell 621
Bell and Howell Filmo Diplomat 173-BAY
Bell and Howell Filmosound 398
Bell and Howell Filmosound 02 (all)
Bell and Howell Filmo Diplomat 173-BA
Bell and Howell Filmo Diplomat AD
Bell and Howell Filmosound 195
Bell and Howell Filmosound 285
Bell and Howell Filmo Diplomat A
US Projector Corporation Success-O-Vox 16mm Projector
