DGL ANSI Code

DGL ANSI is a T12 lamp with a DCMR base operating at 1000 watts and 120 volts. It has a color temperature of 3280 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DGL lamps.

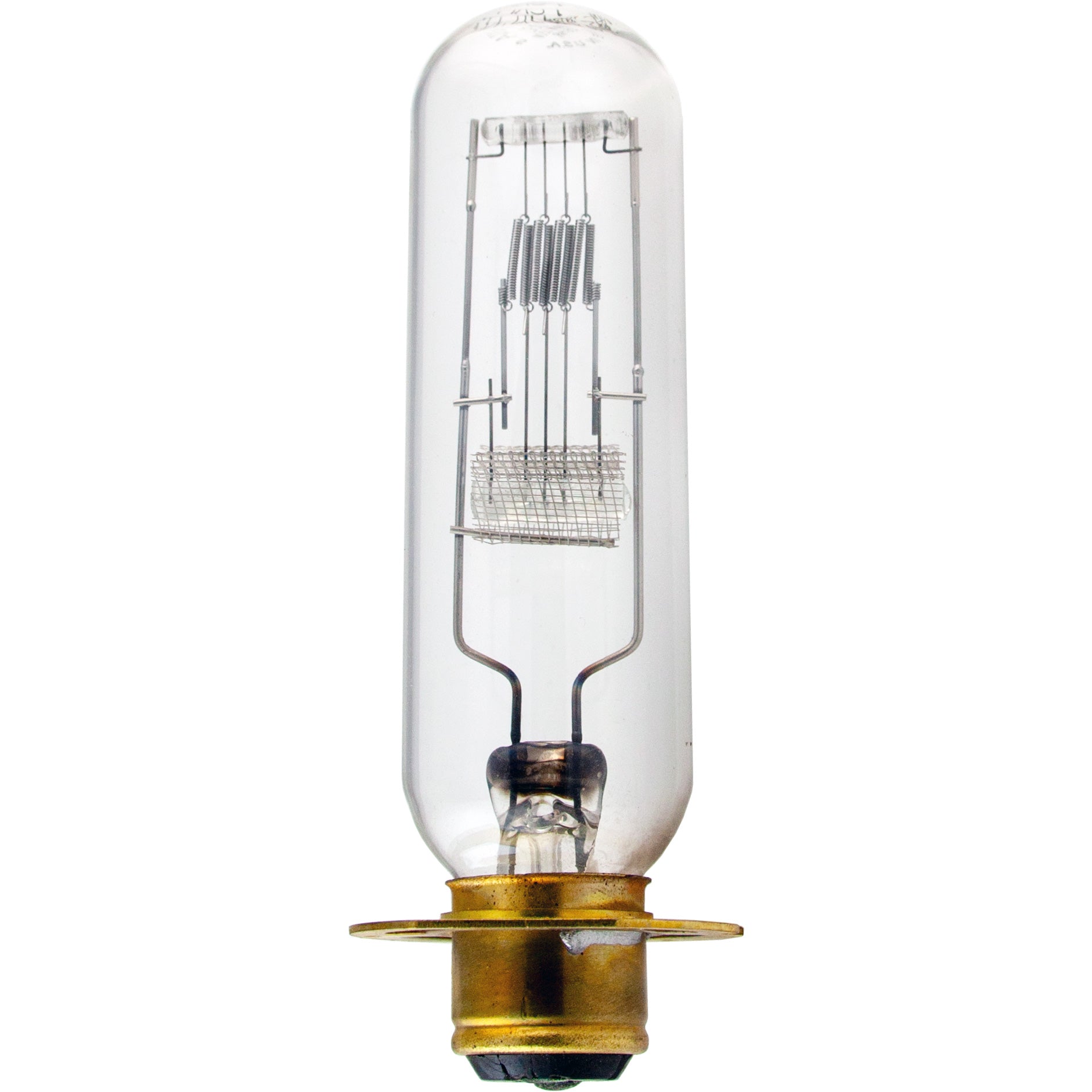

DGL Photograph

DGL

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3280
Light Center Length (LCL)3 1/2
Lumens28000

Physical Characteristics

BaseDCMR
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)5 7/8

Operating Characteristics

Burn PositionBase Up
Life Hours25

General Information
Lamp CodeDGL
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

DCMR Base

DCMR

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDGL

DGL may also be listed as:
1000T12/1001000T12/100 SYLVANIA1000T12/100/1201000T12/100/120 SYLVANIA
1000T12/100/120V1000T12/100/120V SYLVANIA1000WATT-T12-100 SYLVANIA1000WATT-T12-100-120 VOLT SYLVANIA
72648 SYLVANIADGLDGL ANSIDGL ASA
DGL SYLVANIADGL WIKODGL-120 VOLT ANSIDGL-120 VOLT ASA
DGL-120VDGL-120V ANSIDGL-120V ASADGL-120V-1000W
DGL-120V-1000W ANSIDGL-120V-1000W ASADGL-120V-1000W-P30D-T12-C13D-CLEAR-28000L-3280K-25H-BU-5-7/8MOL-3-1/2LCL-I-PROJECTION-HIGH-DEGREE-OF-FORCED-COOLINGDGL-120V/120V/1000W/DCMR ANSI
DGL/120DGL/120 ANSIDGL/120 ASADGL/120V/1000W/DCMR ANSI
DGL/DGS LITE-SOURCEDGL/DGS OSRAMDGL/DGS-OSRAM/SYLVANIA-1000W/120V-PROJECTOR-BULB LITE-SOURCEDGL/DGS/1000W/120V-PROJECTOR-BULB OSRAM
I/120V/1000W/DCMR/T12/C13D/25HI/120V/1000W/DCMR/T12/C13D/25H/DGLI/120V/1000W/DCMR/T12/CL/25HI/120V/1000W/DCMR/T12/CL/25H/DGL
SP1000T12DCMRC13D120V-DGLSP1000T12DCMRCL120V-DGL
