DGS ANSI Code

DGS ANSI is a T12 lamp with a DCMR base operating at 1000 watts and 120 volts. It has a color temperature of 3375 Kelvin. It has a Clear finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DGS lamps.

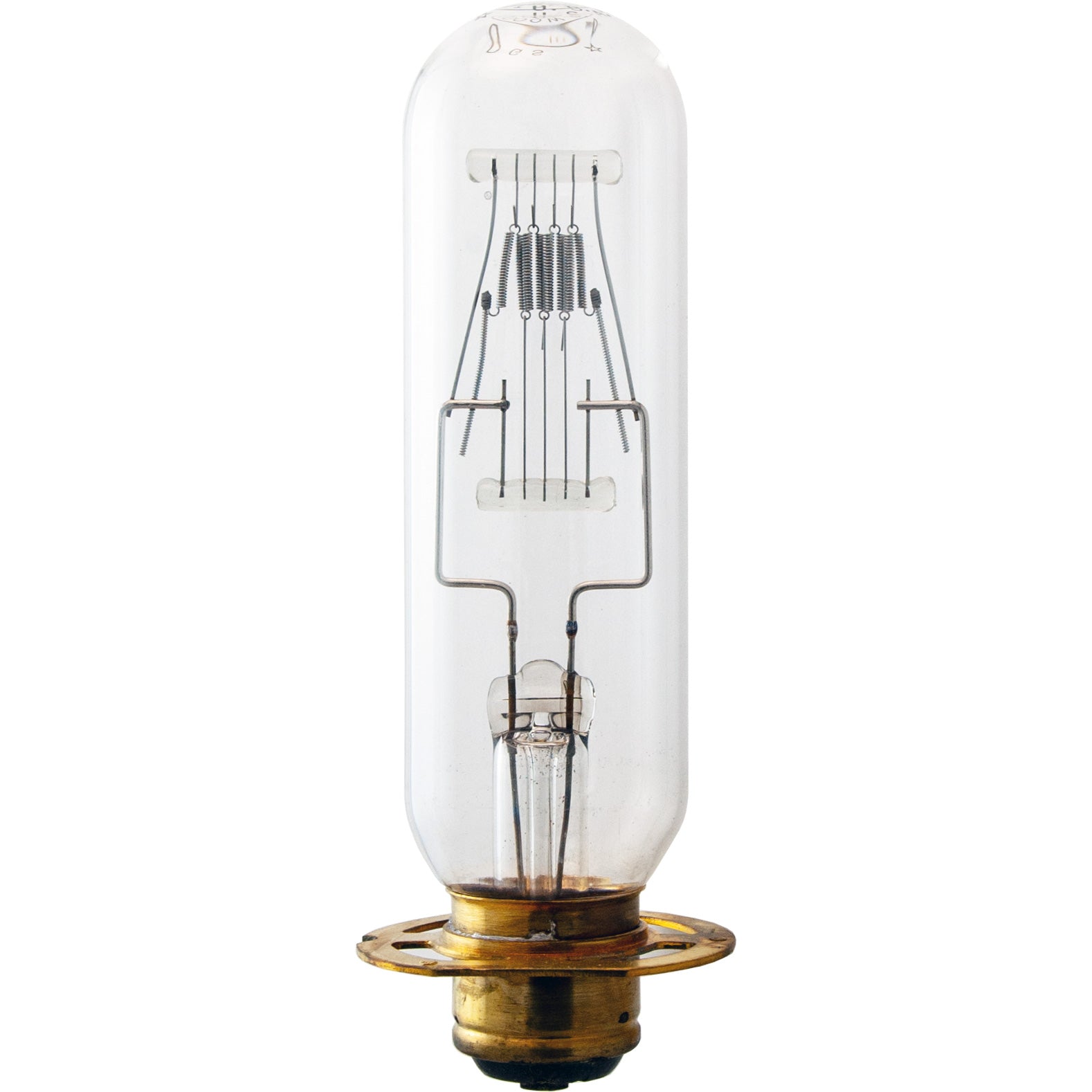

DGS Photograph

DGS

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2600
Color Temperature3375
Light Center Length (LCL)3 1/2
Lumens32000

Physical Characteristics

BaseDCMR
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)5 7/8

Operating Characteristics

Burn PositionBase Up
Life Hours10

General Information
Lamp CodeDGS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

DCMR Base

DCMR

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDGS

Equipment Used In

BrandModelType
Eastman Kodak 16mm Model 30
Eastman Kodak Television CM350
Eastman Kodak Eastman 25-C
Eastman Kodak Television 250
Eastman Kodak 25-B
Eastman Kodak Eastman 25
Eastman Kodak Eastman 25-B
Eastman Kodak Television 275
Eastman Kodak 16mm Model 40
Eastman Kodak Eastman 40
Eastman Kodak 16mm Model 25C
Eastman Kodak 16mm Model 25B
Eastman Kodak 16mm Model 25
Eastman Kodak Eastman 30
RCA TP-35-CC Projector
RCA TP-35-CCS Projector
RCA TP-6
RCA TP-6A

DGS may also be listed as:
1000-C-6 SYLVANIA1000/C61000T12-1 SYLVANIA1000T12-1 WESTINGHOUSE
1000T12-1-115 SYLVANIA1000T12-1-115 WESTINGHOUSE1000T12-1-115V SYLVANIA1000T12-1-115V WESTINGHOUSE
1000T12-1-120 WESTINGHOUSE1000T12-1-120V WESTINGHOUSE1000T12/11000T12/1/120
1000T12/1/120V1000W/T12/11000WATT-C-6 SYLVANIA1000WATT-T12-1 SYLVANIA
1000WATT-T12-1 WESTINGHOUSE1000WATT-T12-1-115VOLT SYLVANIA1000WATT-T12-1-115VOLT WESTINGHOUSE1000WATT-T12-1-120 VOLT WESTINGHOUSE
120 VOLT-1000WATT-S120-1000S120-1000WS120V-1000-S
120V-1000W-S1M/T12/1 GENERAL-ELECTRIC1MT12/11MT12/1 WESTINGHOUSE
72652 SYLVANIADGSDGS ANSIDGS ASA
DGS BULB-DIRECTDGS GENERAL-ELECTRICDGS INTERLIGHTDGS LAMPTECH
DGS MICROLAMPDGS SYLVANIADGS WESTINGHOUSEDGS WIKO
DGS-120 ANSIDGS-120 ASADGS-120 VOLT ANSIDGS-120 VOLT ASA
DGS-120VDGS-120V ANSIDGS-120V ASADGS-120V-1000W
DGS-120V-1000W ANSIDGS-120V-1000W ASADGS-120V-1000W-P38S-T12-C13D-CLEAR-32000L-3375K-10H-BU-5-7/8MOL-3-1/2LCL-I-PROJECTION-HIGH-DEGREE-OF-FORCED-COOLINGDGS-120V/120V/1000W/DCMR ANSI
DGS/120DGS/120V GENERAL-ELECTRICDGS/120V/1000W/DCMR ANSIDGS/T12-1000W-115V-120V LAMPTECH
DHSI/120V/1000W/DCMR/T12/C13D/10HI/120V/1000W/DCMR/T12/C13D/10H/DGSI/120V/1000W/DCMR/T12/CL/10H
I/120V/1000W/DCMR/T12/CL/10H/DGSPH-1000WATT-T12-1 WESTINGHOUSEPH-1000WATT-T12-1-115VOLT WESTINGHOUSEPH-1000WATT-T12-1-120 VOLT
PH/1000W/T12/1PH/1M/T12/1 GENERAL-ELECTRICPH1000T12-1 WESTINGHOUSEPH1000T12-1-115 WESTINGHOUSE
PH1000T12-1-115V WESTINGHOUSEPH1000T12-1-120PH1000T12-1-120VPH1000WT12-1 WESTINGHOUSE
PH1000WT12-1-115 WESTINGHOUSEPH1000WT12-1-115V WESTINGHOUSEPH1000WT12-1-120PH1000WT12-1-120V
PH1MT12/1PH1MT12/1 WESTINGHOUSESP1000T12DCMRC13D120V-DGSSP1000T12DCMRCL120V-DGS
