DHB ANSI Code

DHB ANSI is a T12 lamp with a P46l base operating at 1000 watts and 125 volts. It has a color temperature of 3280 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DHB lamps.

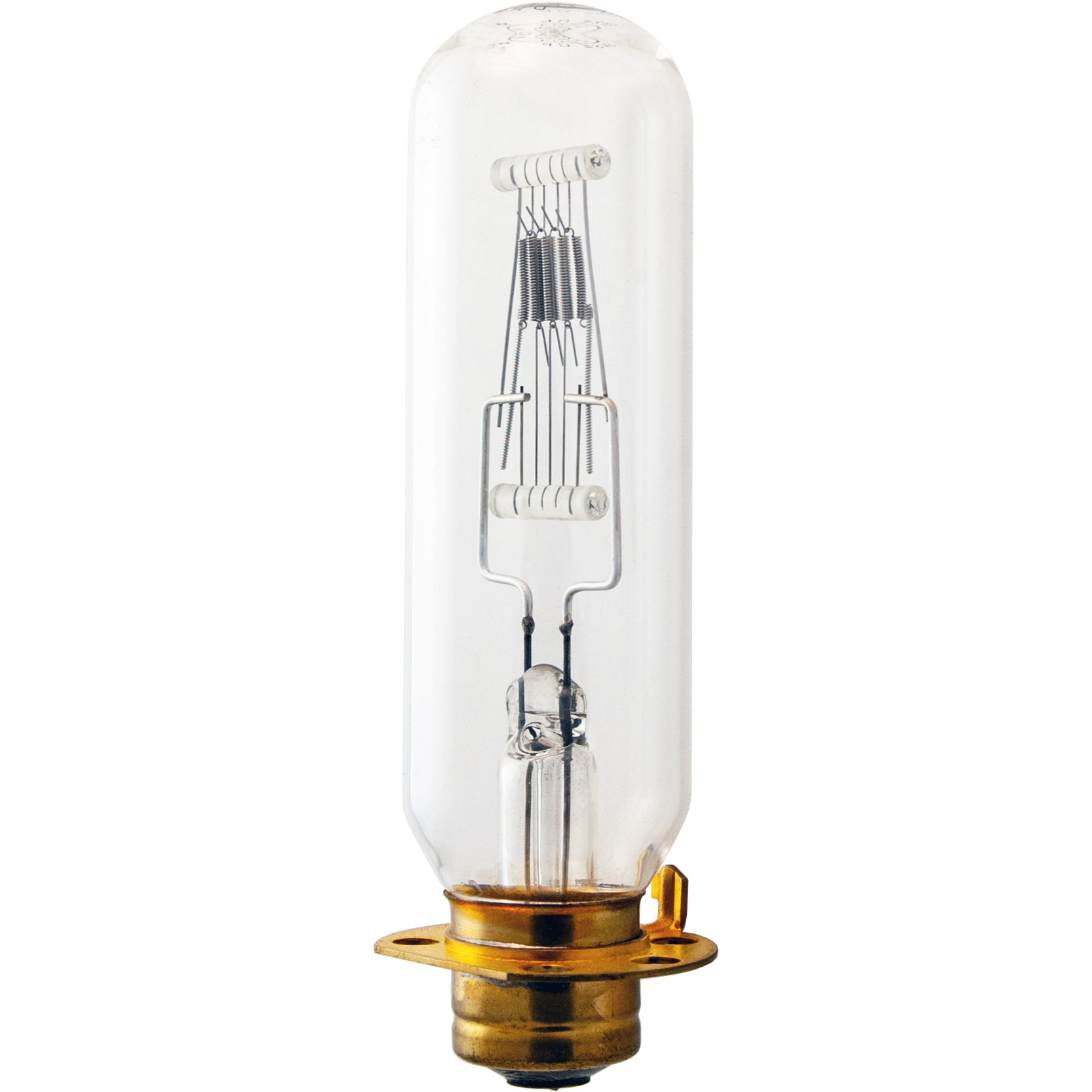

DHB Photograph

DHB

Electrical Specifications

Amps8
Volts125
Watts1000

Photometrics

Candlepower2200
Color Temperature3280
Light Center Length (LCL)3 1/2
Lumens28000

Physical Characteristics

BaseP46l
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)5 7/8

Operating Characteristics

Burn PositionBase Up
Life Hours25

General Information
Lamp CodeDHB
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDHB

Equipment Used In

BrandModelType
Bell and Howell Slidemaster 154A
