DHN ANSI Code

DHN ANSI is a T12 lamp with a G17q-A2A base operating at 500 watts and 125 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DHN lamps.

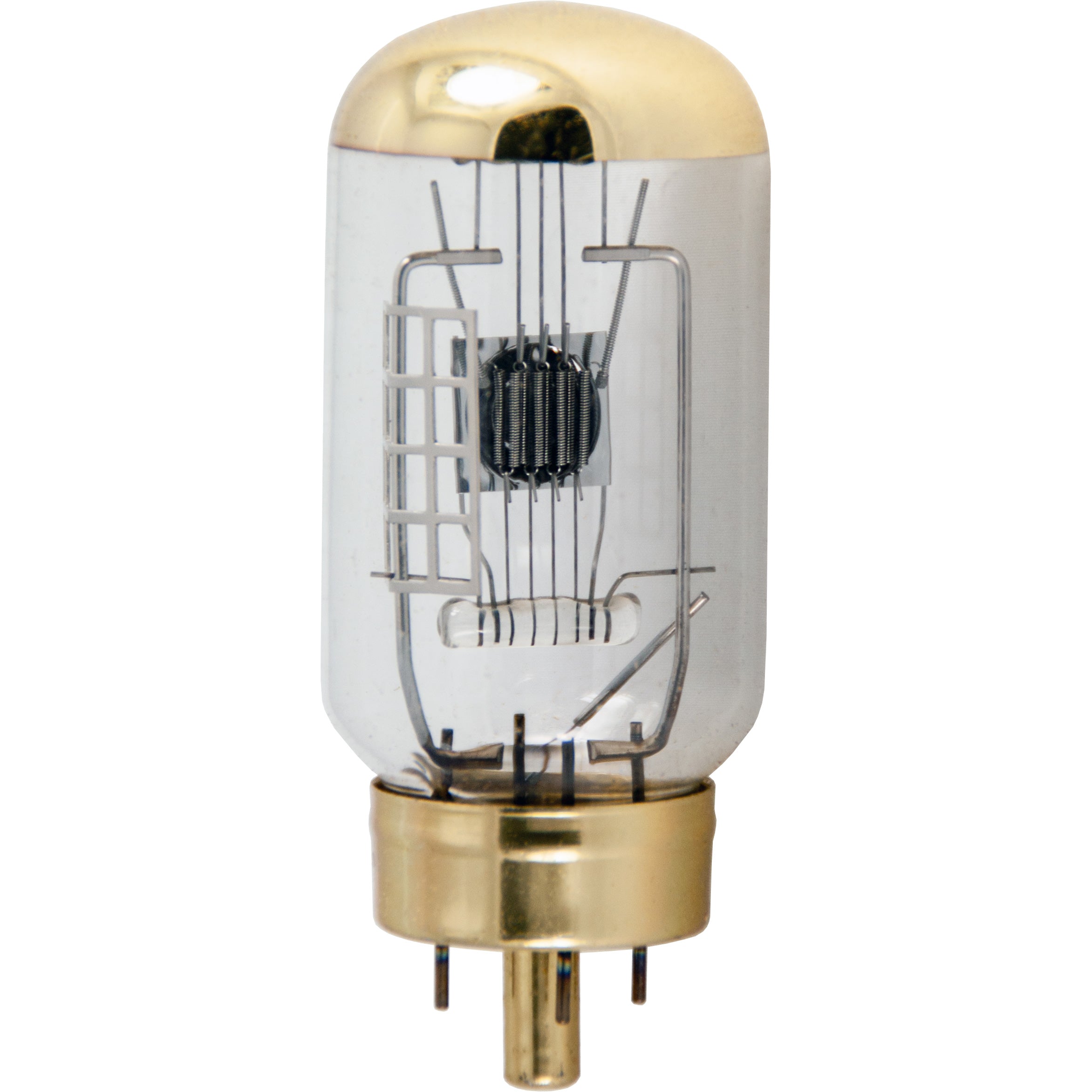

DHN Photograph

DHN

Electrical Specifications

Amps4
Volts125
Watts500

Photometrics

Color Temperature3250
Light Center Length (LCL)1 3/4
Lumens14500

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 9/16

Operating Characteristics

Burn PositionBDTH
Life Hours25

General Information
Lamp CodeDHN
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDHN

Equipment Used In

BrandModelType
Bell and Howell Monitor 961
Bell and Howell Monitor 960
Bell and Howell Monitor 950
Buhl Koolite 90-CF
Buhl Koolite 90-CW
Buhl Koolite 90-SSF
Buhl Koolite 100-WF
Buhl Koolite 100-SSF
Buhl Koolite 90-W
Buhl Koolite 100-W
Buhl Koolite 90-WF
Buhl Koolite 100-CF
Buhl Koolite 90-C
Buhl Koolite 100-SS
Buhl Koolite 100-C
Buhl Koolite 90-SS
Eastman Kodak Carousel 860
Eastman Kodak Carousel AV-860
Eastman Kodak Ektagraphic AF
Eastman Kodak Carousel 800
Eastman Kodak Ektagraphic RA-950
Eastman Kodak Carousel 950
Eastman Kodak Carousel 850
Eastman Kodak Carousel
Eastman Kodak Carousel 900
Eastman Kodak Carousel 570
Eastman Kodak Carousel AV-850
Eastman Kodak Ektagraphic B
Eastman Kodak Carousel 650
Eastman Kodak Carousel 850K
Eastman Kodak Carousel AV-500
Eastman Kodak Carousel 600
Eastman Kodak Recordak Automatic Jacket Reader
Eastman Kodak Carousel 550
Eastman Kodak Carousel AV-760
Eastman Kodak Carousel 500
Eastman Kodak Ektagraphic E
Eastman Kodak Carousel AV-650
Eastman Kodak Carousel AV-580
Eastman Kodak Recordak Microstar PR-1
Eastman Kodak Carousel RA-950
Eastman Kodak Carousel AV-700
Eastman Kodak Carousel AV-600
Eastman Kodak Ektagraphic RA-960
Eastman Kodak Carousel B-865-Q
Eastman Kodak Carousel B-864-Q
Eastman Kodak Recordak Microstar (older model)
Eastman Kodak Carousel AV-570
Eastman Kodak Carousel AV-900
Eastman Kodak Carousel AV-800
Eastman Kodak Carousel AV-750
Eastman Kodak Carousel AV-950
Eastman Kodak Carousel 580
Eastman Kodak Carousel 760
Eastman Kodak Ektagraphic Slide
Eastman Kodak Carousel 700
Eastman Kodak Carousel 55-R
Eastman Kodak Carousel 750
Eastman Kodak Recordak PR-1 (w/o Heat Shield)
Eastman Kodak Carousel Custom
GAF (Ansco) ESP 2000AV Projector Slide / Filmstrip
GAF (Ansco) Anscorama 980 8mm Projector Movie
GAF (Ansco) Anscorama 940 8mm Projector Movie
GAF (Ansco) Anscorama 910 8mm Projector Movie
GAF (Ansco) ESP 200AV Projector Slide / Filmstrip
GAF (Ansco) Anscorama 980-Z 8mm Projector Movie
GAF (Ansco) Anscorama 970 8mm Projector Movie
GAF (Ansco) Anscorama 960 8mm Projector Movie
Gregory Magnetic Ind. GMI-44 Overhead Projector
Hanimex GMI-44
JC Penney 500 Slide Projector
JC Penney 600 Slide Projector
Keystone Camera Co. Inc. 1300 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-1200 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 1100 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-1300 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-1100 Projector Slide / Filmstrip
Mast Development Random Access S-6 Slide Projector
Mast Development Random Access S-4 Slide Projector
Mast Development Random Access 137-S-6
Mast Development 136 Slide Projector
Mast Development Random Access 137-S
Mast Development Random Access 137-S-4
McClure Projectors MAV Projector
Sears Roebuck Pro-Am Projector Slide / Filmstrip
Sears Roebuck Whisper Matic 9875 Projector Slide / Filmstrip
Sears Roebuck 9875 SEARS Projector Slide / Filmstrip
Sears Roebuck 9878 SEARS Projector Slide / Filmstrip
Sears Roebuck 9877 SEARS Projector Slide / Filmstrip
Sears Roebuck Continental 9845 Projector Slide / Filmstrip
Sears Roebuck 9877 TOWER Projector Slide / Filmstrip
Sears Roebuck Continental 9851 Projector Slide / Filmstrip
Sears Roebuck Continental 9855 Projector Slide / Filmstrip
Sears Roebuck 9875 TOWER Projector Slide / Filmstrip
Sears Roebuck 9878 TOWER Projector Slide / Filmstrip
Singer Corporation Graflex SM-1000
Singer Corporation Instructor II
Spindler & Sauppe Spectrum 32 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 321 (newer model) Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 32 Projector Slide / Filmstrip
Standard Projector & Equipment 500-N Projector Slide / Filmstrip
Standard Projector & Equipment 500-RC Projector Slide / Filmstrip
Visual Impact Materials CIP Overslide

DHN may also be listed as:
500-DHN500/T12G17Q3DHN SYLVANIA500/T12TF3DHN SYLVANIA500T12TRUE-FOCUS3DHN SYLVANIA
500WATT-T12-G17Q-3-DHN SYLVANIA765160 BELL-HOWELLDHNDHN ANSI
DHN ASADHN BULB-DIRECTDHN SYLVANIADHN WESTINGHOUSE
DHN WIKODHN-120 VOLT ANSIDHN-120 VOLT ASADHN-120V
DHN-120V ANSIDHN-120V ASADHN-120V-500WDHN-120V-500W ANSI
DHN-120V-500W ASADHN-120V-500W-G17Q-T-12-C-13D-GOLD-TOP-14500L-3250K-25H-BDTH-3-9/16MOL-1-3/4LCL-I-SLIDE-PROJECTOR-PROX.-REFL.-COLLECTOR-BURN-WITH-BEAM-HORIZDHN-120V-500W-G17Q-T12-C13D-GOLD-TOP-14500L-3250K-25H-BDTH-3-9/16MOL-1-3/4LCL-I-SLIDE-PROJECTOR-PROX-REFL-COLLECTOR-BURN-WITH-BEAM-HORIZDHN-120V/120V/500W/G17Q ANSI
DHN-125VDHN-125V ANSIDHN-125V ASADHN-125V-500W
DHN-125V-500W ANSIDHN-125V-500W ASADHN-125V/125V/500W/G17Q ANSIDHN-125VOLT ANSI
DHN-125VOLT ASADHN-5 ANSIDHN-5 ASADHN-5-DEK-5 ANSI
DHN-5-DEK-5 ASADHN-5-DEK-5-DFW-5 ANSIDHN-5-DEK-5-DFW-5 ASADHN-5-DFW-5
DHN-5-DFW-5-DEK-5DHN-DEK SYLVANIADHN-DEK-5DHN-DEK-DFW SYLVANIA
DHN-DEK-DFW-5DHN-DFW WESTINGHOUSEDHN-DFW-5DHN-DFW-DEK WESTINGHOUSE
DHN-DFW-DEK-5DHN/120DHN/120 ANSIDHN/120 ASA
DHN/120V GENERAL-ELECTRICDHN/120V/500W/G17Q ANSIDHN/125DHN/125 ANSI
DHN/125 ASADHN/125V GENERAL-ELECTRICDHN/125V/500W/G17Q ANSIDHN/5
DHN/5DEK5DHN/5DEK5DFW5I/120V/500W/G17Q-A2A/T12/C13D/OT/25H/DHN-120VI/120V/500W/G17Q-A2A/T12/OT/25H/DHN-120V
I/120V/500W/G17Q/T12/C13D/OT/25H/DHN-120VI/120V/500W/G17Q/T12/OT/25H/DHN-120VI/125V/500W/G17Q-A2A/T12/C13D/OT/25H/DHN-125VI/125V/500W/G17Q-A2A/T12/OT/25H/DHN-125V
I/125V/500W/G17Q/T12/C13D/OT/25H/DHN-125VI/125V/500W/G17Q/T12/OT/25H/DHN-125VSP500T12G17QA2AC13DOT120V-DHN-120VSP500T12G17QA2AC13DOT125V-DHN-125V
SP500T12G17QA2AOT120V-DHN-120VSP500T12G17QA2AOT125V-DHN-125VSP500T12G17QC13DOT120V-DHN-120VSP500T12G17QC13DOT125V-DHN-125V
SP500T12G17QOT120V-DHN-120VSP500T12G17QOT125V-DHN-125V
