DHW ANSI Code

DHW ANSI is a T12 lamp with a P46l base operating at 1200 watts and 100 volts. It has a color temperature of 3400 Kelvin. It has a Obscured top finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DHW lamps.

Electrical Specifications

Amps12
Volts100
Watts1200

Photometrics

Color Temperature3400
Light Center Length (LCL)3 1/16
Lumens36000

Physical Characteristics

BaseP46l
Bulb ShapeT12
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)7 1/4

Operating Characteristics

Burn PositionBase Down
Life Hours10

General Information
Lamp CodeDHW
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

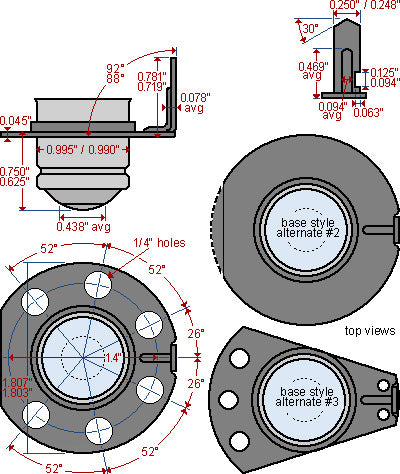

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDHW

Equipment Used In

BrandModelType
Bell and Howell Filmo Auditorium D
Bell and Howell Auditorium A
Bell and Howell Filmo Auditorium C
Bell and Howell Auditorium B
Bell and Howell Filmo Auditorium H
Bell and Howell Filmo Auditorium E
Bell and Howell Auditorium D
Bell and Howell Filmosound 130
Bell and Howell Auditorium 130
Bell and Howell Filmo Auditorium F
Bell and Howell Auditorium G
Bell and Howell Filmo Auditorium B
Bell and Howell Auditorium H
Bell and Howell Filmo Auditorium A
Bell and Howell Filmo Auditorium 130
Bell and Howell Filmo Auditorium G
Bell and Howell Filmo Diplomat A

DHW may also be listed as:
1200T12/3LR1200T12/3LR GENERAL-ELECTRIC1200T12/3LR SYLVANIA1200T12/3LR/120V SYLVANIA
1200T12/3LR1201200T12/3LR120V1200W/T12/3LR1200WATT-T12-3-LARGE-RING
1200WATT-T12-3-LARGE-RING-120 VOLT7209H PHILIPS7209H-100V PHILIPSDHW
DHW ANSIDHW ASADHW GENERAL-ELECTRICDHW INTERLIGHT
DHW SYLVANIADHW-100V/100V/1200W/P46L ANSIDHW-120 VOLT ANSIDHW-120 VOLT ASA
DHW-120VDHW-120V ANSIDHW-120V ASADHW-120V-1200W
DHW-120V-1200W ANSIDHW-120V-1200W ASADHW-120V/120V/1200W/P46L ANSIDHW/100V/1200W/P46L ANSI
DHW/120DHW/120 ANSIDHW/120 ASADHW/120V/1200W/P46L ANSI
I/100V/1200W/P46L/T12/35000L/78MMLCL/185MMMOL/OT/10H/7209H PHILIPSI/100V/1200W/P46L/T12/C13D/OT/10HI/100V/1200W/P46L/T12/C13D/OT/10H/DHW-100VI/100V/1200W/P46L/T12/OT/10H
I/100V/1200W/P46L/T12/OT/10H/7209H PHILIPSI/100V/1200W/P46L/T12/OT/10H/DHW-100VI/100V/1200W/P46S-PHILIPS/T38MM/35000L/78MMLCL/185MMMOL/OT/10H/7209H PHILIPSI/120V/1200W/P46L/T12/C13D/OT/10H
I/120V/1200W/P46L/T12/C13D/OT/10H/DHW-120VI/120V/1200W/P46L/T12/OT/10HI/120V/1200W/P46L/T12/OT/10H/DHW-120VPH-1200WATT-T12-3-LARGE-RING
PH-1200WATT-T12-3-LARGE-RING-120 VOLTPH/1200T12/3LR GENERAL-ELECTRICPH1200T12/3LRPH1200T12/3LR120
PH1200T12/3LR120VPH1200W/T12/3LRPH1200W/T12/3LR120PH1200W/T12/3LR120V
SP1200T12P46LC13DOT100VSP1200T12P46LC13DOT100V-DHW-100VSP1200T12P46LC13DOT120VSP1200T12P46LC13DOT120V-DHW-120V
SP1200T12P46LOT100VSP1200T12P46LOT100V-DHW-100VSP1200T12P46LOT120VSP1200T12P46LOT120V-DHW-120V
