DJL ANSI Code

DJL ANSI is a T14 lamp with a G17q-A23 base operating at 150 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DJL lamps.

DJL Photograph

DJL

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature3150
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-A23
Bulb ShapeT14
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 1/2

Operating Characteristics

Burn PositionBDTH
Life Hours15

General Information
Lamp CodeDJL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T14 Shape

T14
Diameter Designation14/8"
Glass Diameter 1 3/4" (1.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

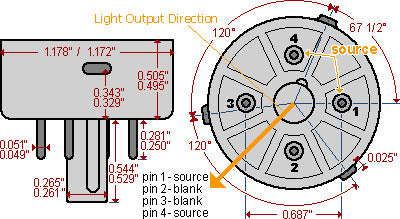

G17q-A23 Base

G17q-A23

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-150-31J
Canimpex120-150-31J

Equipment Used In

BrandModelType
Argus 357-A
Argus 356-A
Bell and Howell Sound 600
Bell and Howell Filmosound 458
Bell and Howell Filmosonic 17447
Bell and Howell Filmosonic 1742-A
Bell and Howell Filmosonic 1742-Z
Bell and Howell Filmosonic 1745-CZ
Bell and Howell Autoload 461-B
Bell and Howell Autoload 481
Bell and Howell Movie Cassette 459 (serials to 1011100)
Bell and Howell Filmosonic 1742
Bell and Howell Autoload 462
Bell and Howell Autoload 468-Z
Bell and Howell Filmosound 468
Bell and Howell Filmosonic 1745
Bell and Howell Autoload 358-A
Bell and Howell Autoload 461
Bell and Howell Filmosonic Soundstar
Bell and Howell Autoload 346
Bell and Howell Filmosound 358-S
Bell and Howell Autoload 457-Z
Bell and Howell Autoload 356
Bell and Howell Filmosonic 1744-Z
Bell and Howell Filmosonic 1733-B
Bell and Howell Autoload 467-Z
Bell and Howell Autoload 459 (serials to 1011100)
Bell and Howell Filmosonic 1744
Bell and Howell Filmosonic 600-Z
Bell and Howell Movie Cassette 459-Z (serials to 1011100)
Bell and Howell Autoload 456
Bell and Howell Filmosonic 600-ZR
Bell and Howell Filmosonic 1733
Bell and Howell Autoload 457
Bell and Howell Movie 456-Z
Bell and Howell Autoload 456-Z
Bell and Howell Sound 600-ZRX
Bell and Howell Sound 600-Z
Bell and Howell Filmosonic 1744-BZ
Bell and Howell Filmosonic 600-ZRX
Bell and Howell Filmosonic 1744-CZ
Bell and Howell Filmosonic 1731
Bell and Howell Filmosonic 600-RX
Bell and Howell Sound 600-ZR
Bell and Howell Autoload 357-B
Bell and Howell Autoload 357
Bell and Howell Autoload 357A
Bell and Howell Autoload 476-P
Bell and Howell Sound 600-PS
Bell and Howell Filmosound 458-Z
Bell and Howell Filmosonic 600
Bell and Howell Autoload 357-Z
Eastman Kodak Instamatic M-65
Montgomery Ward 831
Osawa Autoload 481 Projector
Osawa Filmosonic 1742 Projector
Osawa Autoload 346 Projector
Osawa Autoload 357 Projector
Osawa Autoload 456 Projector
Osawa Filmosonic 1733-B Projector
Osawa Filmosonic 1744-Z Projector
Osawa Filmosonic 1742-A Projector
Osawa Filmosound 458 Projector
Osawa Autoload 356 Projector
Osawa Filmosound 468 Projector
Osawa Filmosound 358-S Projector
Osawa Autoload 357-Z Projector
Osawa Autoload 458 Projector
Osawa Filmosonic 1742-Z Projector
Osawa Movie Cassette 459-Z (serials to 1011100) Projector
Osawa Filmosonic Soundstar Projector
Osawa Filmosonic 600-ZR Projector
Osawa Autoload 461 Projector
Osawa Filmosonic 600-ZRX Projector
Osawa Filmosonic 1733 Projector
Osawa Autoload 468-Z Projector
Osawa Autoload 456-Z Projector
Osawa Autoload 457 Projector
Osawa Filmosonic 1745-CZ Projector
Osawa Autoload 476-P Projector
Osawa Filmosonic 600-Z Projector
Osawa Autoload 462 Projector
Osawa Filmosonic 1744-BZ Projector
Osawa Autoload 457-A Projector
Sears Roebuck 9206 SUPER-8 Projector Slide / Filmstrip
Sears Roebuck 9205 DUAL-SPEED Projector Slide / Filmstrip
Sears Roebuck 584-92000 EASI-LOAD Projector Slide / Filmstrip
Sears Roebuck 9204 SEARS Projector Slide / Filmstrip
Sears Roebuck 9204 DUAL-SPEED Projector Slide / Filmstrip
Sears Roebuck 9205 SEARS Projector Slide / Filmstrip
Sears Roebuck 9200 DUAL-SPEED Projector Slide / Filmstrip
Sears Roebuck 9206 SEARS Projector Slide / Filmstrip
Sears Roebuck 9201 DUAL-SPEED Projector Slide / Filmstrip
