DJP ANSI Code

DJP ANSI is a T14 lamp with a G17q-B34 base operating at 250 watts and 21.5 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DJP lamps.

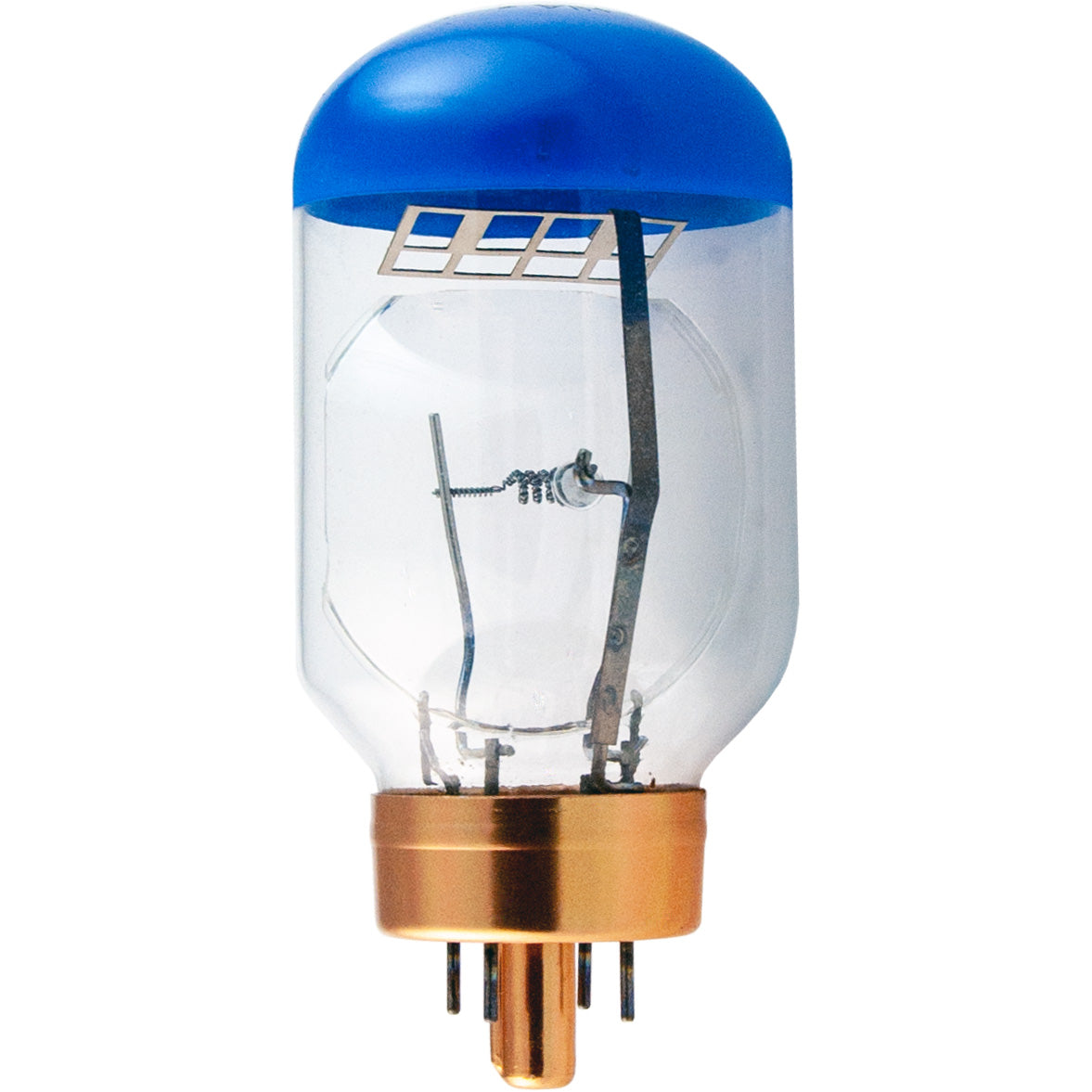

DJP Photograph

DJP

Electrical Specifications

Amps11.6
Volts21.5
Watts250

Photometrics

Color Temperature3250
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-B34
Bulb ShapeT14
FilamentCC-6
FinishObscured Top
Max Overall Length (MOL)3 34/37

Operating Characteristics

Burn PositionVBD
Life Hours25

General Information
Lamp CodeDJP
Code TypeANSI

T14 Shape

T14
Diameter Designation14/8"
Glass Diameter 1 3/4" (1.75")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G17q-B34 Base

G17q-B34

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDJP

DJP may also be listed as:
250T14G17Q/R/DJP SYLVANIA250T14TF/R/DJP SYLVANIA250T14TRUE-FOCUS/R/DJP SYLVANIA250WATT-T14-G17Q-R-DJP SYLVANIA
76240 SYLVANIADJPDJP ANSIDJP ASA
DJP INTERLIGHTDJP LAMPTECHDJP SYLVANIADJP-21.5V
DJP-21.5V ANSIDJP-21.5V ASADJP-21.5V-250WDJP-21.5V-250W ANSI
DJP-21.5V-250W ASADJP-21.5V-250W-GX17Q-T14-CC6-OBSCURED-TOP-3250K-25H-VBD-3-34/37MOL-1-9/16LCL-I-16MM-CLOSED-CIRCUIT-TV-INTERNAL-UNCOATED-GLASS-MIRRORDJP-21.5V/21.5V/250W/G17Q ANSIDJP-21.5VOLT ANSI
DJP-21.5VOLT ASADJP/21.5DJP/21.5 ANSIDJP/21.5 ASA
DJP/21.5V/250W/G17Q ANSIDJP/PROJECTION-LAMP LAMPTECHI/21.5V/250W/G17Q-B34/T14/CC6/OT/25H/DJPI/21.5V/250W/G17Q-B34/T14/OT/25H/DJP
I/21.5V/250W/G17Q/T14/CC6/OT/25H/DJPI/21.5V/250W/G17Q/T14/OT/25H/DJPSP250T14G17QB34CC6OT21.5V-DJPSP250T14G17QB34CLOT21.5V-DJP
SP250T14G17QCC6OT21.5V-DJPSP250T14G17QCLOT21.5V-DJP
