DJR ANSI Code

DJR ANSI is a T12 lamp with a G17q-B34 base operating at 100 watts and 12 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DJR lamps.

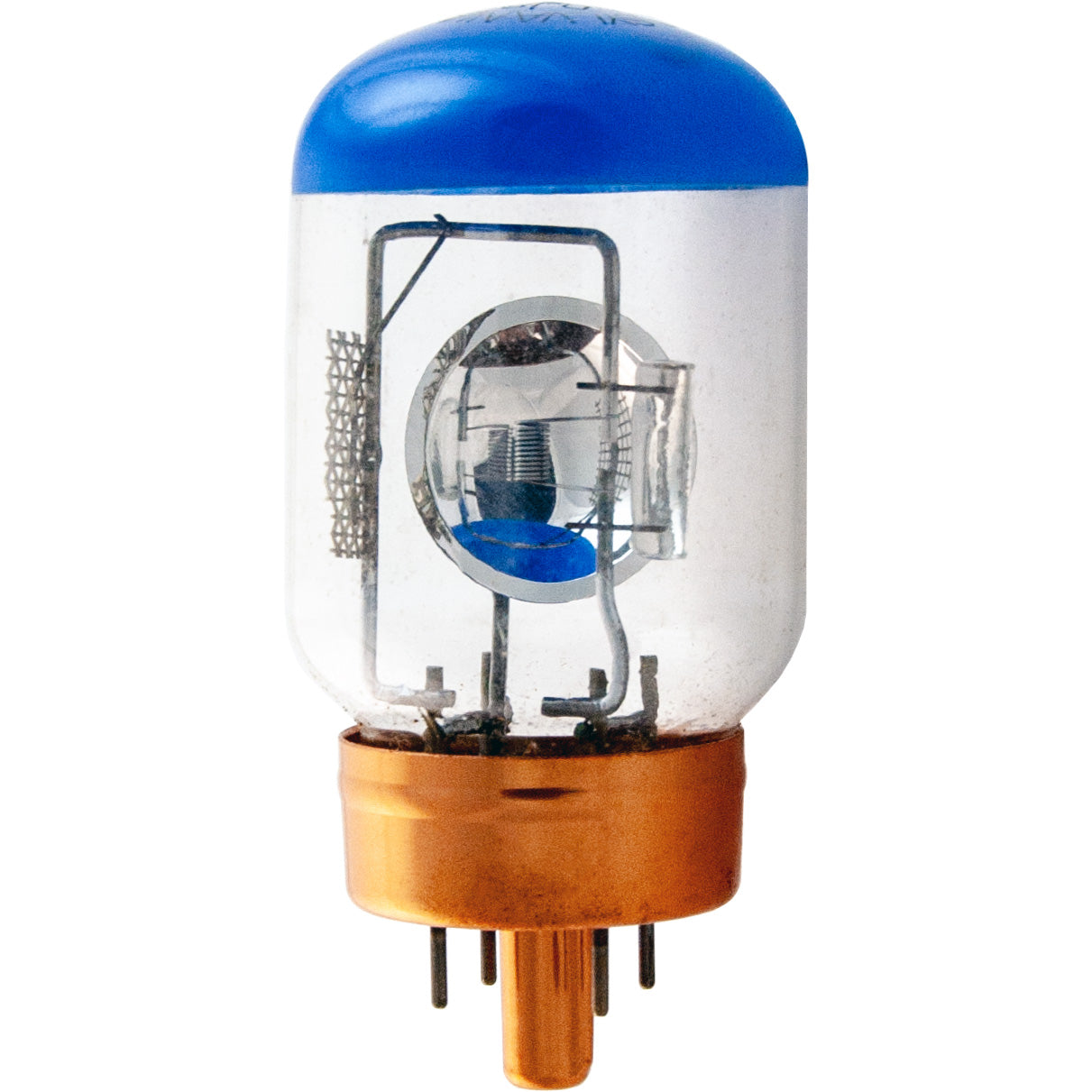

DJR Photograph

DJR

Electrical Specifications

Amps8.33
Volts12
Watts100

Photometrics

Color Temperature3150
Light Center Length (LCL)1 5/16

Physical Characteristics

BaseG17q-B34
Bulb ShapeT12
FilamentFC-8
FinishObscured Top
Max Overall Length (MOL)3 3/16

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeDJR
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

FC-8 Filament

FC-8
Coil TypeFC - Flat Coil

G17q-B34 Base

G17q-B34

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDJR

DJR may also be listed as:
100/T12G17Q SYLVANIA100/T12TF SYLVANIA100T12TRUE-FOCUS SYLVANIA100WATT-T12-G17Q SYLVANIA
DJRDJR ANSIDJR ASADJR BULB-DIRECT
DJR INTERLIGHTDJR SYLVANIADJR WIKODJR-12V
DJR-12V ANSIDJR-12V ASADJR-12V-100WDJR-12V-100W ANSI
DJR-12V-100W ASADJR-12V-100W-GX17Q-T12-FC8-BLUE-TOP-50H-BDTH-3-3/16MOL-1-5/16LCL-I-PROXIMITY-REFLECTORDJR-12V/12V/100W/G17Q ANSIDJR-12VOLT ANSI
DJR-12VOLT ASADJR/12DJR/12 ANSIDJR/12 ASA
DJR/12V/100W/G17Q ANSIEQ-DJR ELECTROQUIPG17Q-12V-100W-PROJECTION ELECTROQUIPI/12V/100W/G17Q-B34/T12/OT/25H
I/12V/100W/G17Q-B34/T12/OT/25H/DJRI/12V/100W/G17Q/T12/OT/25HI/12V/100W/G17Q/T12/OT/25H/DJRPROJECTION/12V/100W/G17Q ELECTROQUIP
SP100T12G17Q-B34FC8OT12VSP100T12G17Q-B34OT12VSP100T12G17QB34FC8OT12V-DJRSP100T12G17QB34OT12V-DJR
SP100T12G17QFC8OT12VSP100T12G17QFC8OT12V-DJRSP100T12G17QOT12VSP100T12G17QOT12V-DJR
