DKP ANSI Code

DKP ANSI is a T14 lamp with a G17q-B34 base operating at 250 watts and 21.5 volts. It has a color temperature of 3200 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DKP lamps.

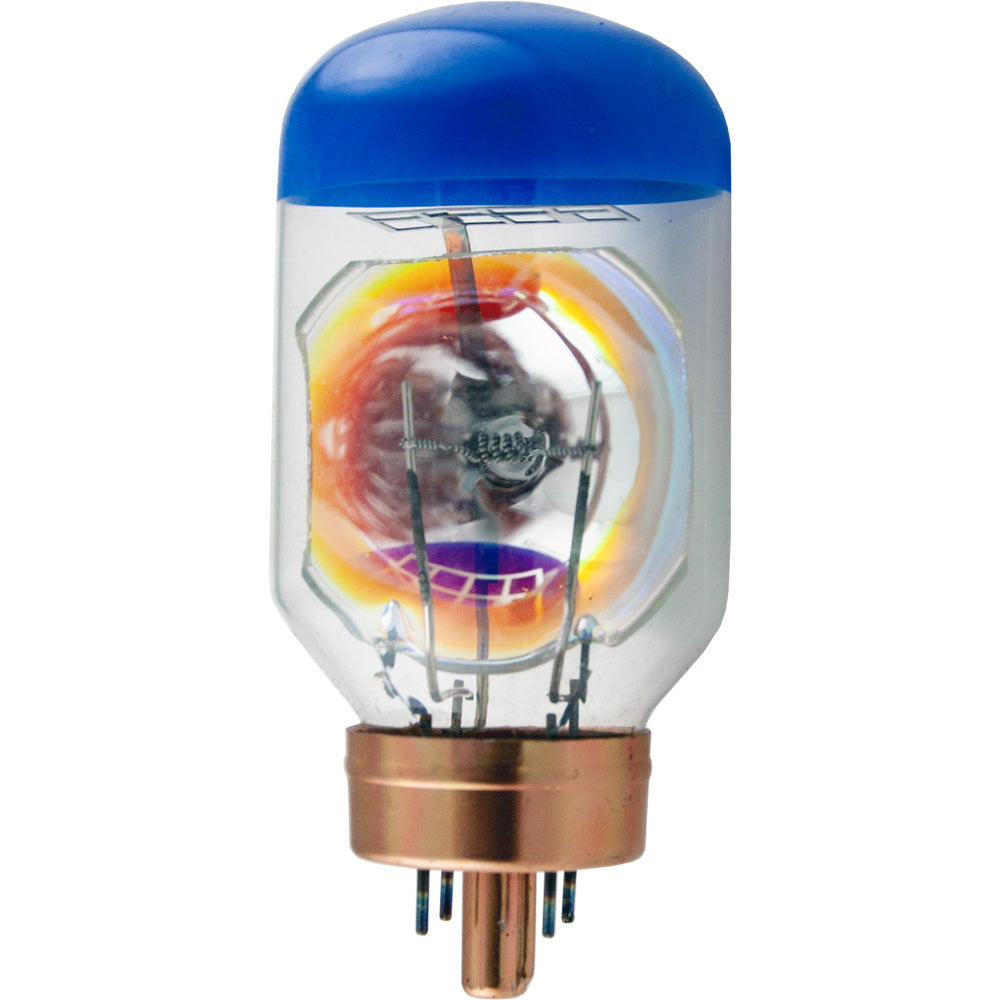

DKP Photograph

DKP

Electrical Specifications

Amps11.6
Volts21.5
Watts250

Photometrics

Color Temperature3200
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-B34
Bulb ShapeT14
FilamentCC-6
FinishObscured Top
Max Overall Length (MOL)3 34/37

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeDKP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T14 Shape

T14
Diameter Designation14/8"
Glass Diameter 1 3/4" (1.75")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G17q-B34 Base

G17q-B34

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites21.5-250-31
Canimpex21.5-250-31

Equipment Used In

BrandModelType
Bell and Howell Autoload 576 (R/P)
Bell and Howell 5
Bell and Howell 510
Bell and Howell 2

DKP may also be listed as:
250T14G17Q/RH SYLVANIA250T14G17Q/RS SYLVANIA250T14G17Q/S SYLVANIA250T14G17Q/VB SYLVANIA
250T14G17Q/VS SYLVANIA250T14TF/RH SYLVANIA250T14TF/RS SYLVANIA250T14TF/S SYLVANIA
250T14TF/VB SYLVANIA250T14TF/VS SYLVANIA250T14TRUE-FOCUS/RH SYLVANIA250T14TRUE-FOCUS/RS SYLVANIA
250T14TRUE-FOCUS/S SYLVANIA250T14TRUE-FOCUS/VB SYLVANIA250T14TRUE-FOCUS/VS SYLVANIA250WATT-T14-G17Q-VS SYLVANIA
76258 SYLVANIA76258-1 SYLVANIABW-DKPDKP
DKP ANSIDKP ASADKP BULB-DIRECTDKP INTERLIGHT
DKP LAMPTECHDKP SYLVANIADKP WIKODKP-21.5V
DKP-21.5V ANSIDKP-21.5V ASADKP-21.5V-250WDKP-21.5V-250W ANSI
DKP-21.5V-250W ASADKP-21.5V-250W SYLVANIADKP-21.5V-250W-GX17Q-T-14-CC-6-OBSCURED-TOP-3200K-25H-BD-3-34/37MOL-1-9/16LCL-I-MICROFILM-PRINTER-INTERNAL-DICHROIC-REFL.-FOCAL-DIST.-2.65-COLLECTORDKP-21.5V-250W-GX17Q-T14-CC6-OBSCURED-TOP-3200K-25H-BD-3-34/37MOL-1-9/16LCL-I-MICROFILM-PRINTER-INTERNAL-DICHROIC-REFL-FOCAL-DIST-2.65-COLLECTOR
DKP-21.5V-250W/SYLVANIA-76258-1DKP-21.5V-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTDDKP-21.5V/21.5V/250W/G17Q ANSIDKP-21.5VOLT ANSIDKP-21.5VOLT ASA
DKP/21.5DKP/21.5 ANSIDKP/21.5 ASADKP/21.5V/250W/G17Q ANSI
DKP/250W-21.5V-T14-GX17Q LAMPTECHDKP21.5V250WSY AC-ENTERTAINMENT-TECHNOLOGIES-LTDI/21.5V/250W/G17Q-B34/T14/CC6/OT/25H/DKPI/21.5V/250W/G17Q-B34/T14/OT/25H/DKP
I/21.5V/250W/G17Q/T14/CC6/OT/25H/DKPI/21.5V/250W/G17Q/T14/OT/25H/DKPSP250T14G17QB34CC6OT21.5V-DKPSP250T14G17QB34CLOT21.5V-DKP
SP250T14G17QB34OT21.5V-DKPSP250T14G17QCC6OT21.5V-DKPSP250T14G17QCLOT21.5V-DKPSP250T14G17QOT21.5V-DKP
SYLVANIA-76258-1DKP-21.5V-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTD
