DLD ANSI Code
DLD ANSI is a T14 lamp with a G17q-B34 base operating at 80 watts and 30 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DLD lamps.

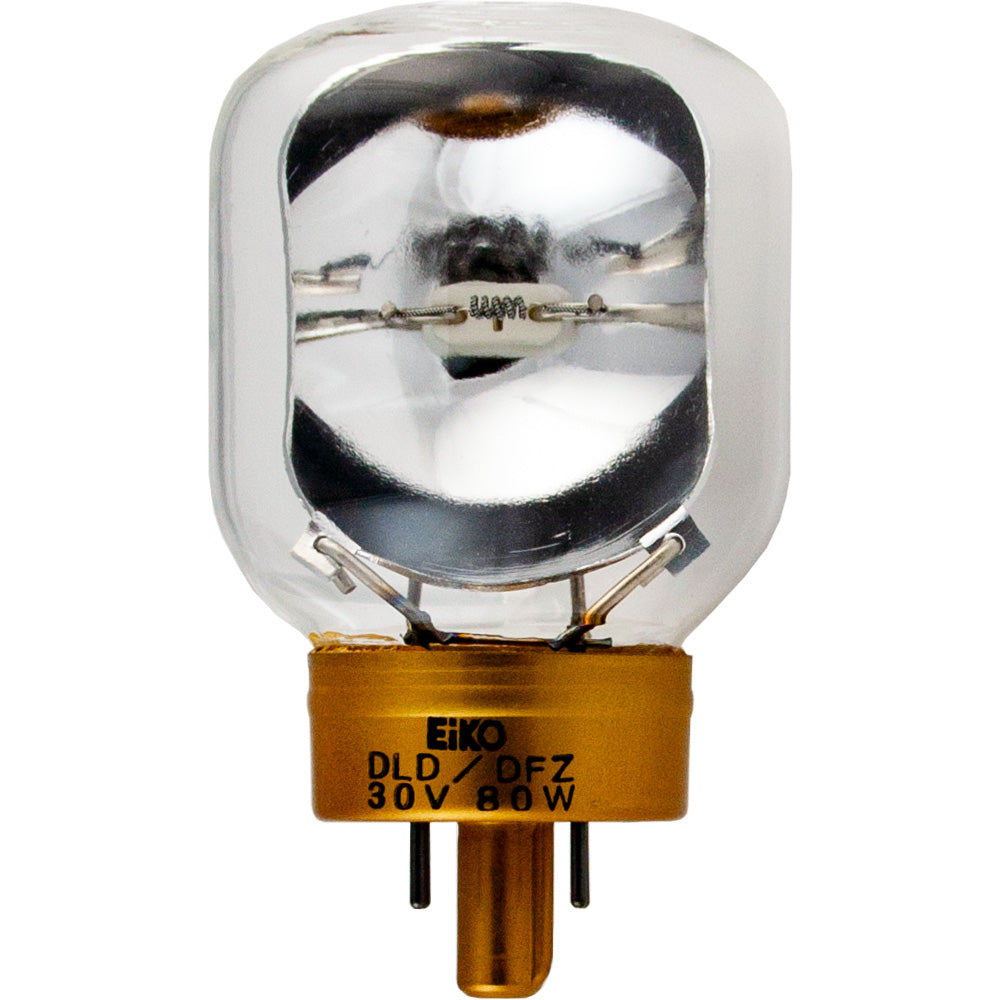

DLD Photograph |
 |
Electrical Specifications | |
| Amps | 2.67 |
|---|---|
| Volts | 30 |
| Watts | 80 |
Photometrics | |
| Color Temperature | 3400 |
|---|---|
| Light Center Length (LCL) | 1 9/16 |
Physical Characteristics | |
| Base | G17q-B34 |
|---|---|
| Bulb Shape | T14 |
| Filament | CC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 1/2 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | DLD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | DFZ |
Substitution Notes | |
| Possible Substitution | DFZ |
|---|---|
T14 Shape | |
 | |
| Diameter Designation | 14/8" |
|---|---|
| Glass Diameter | 1 3/4" (1.75") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
G17q-B34 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 30-080-31D | ||
| Canimpex | 30-080-31D | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | Filmosound 478-Z | |
| Bell and Howell | Multi Motion 1444 | |
| Bell and Howell | Multi Motion 1465 | |
| Bell and Howell | Multi Motion 1422 | |
| Bell and Howell | Multi Motion 1623-C | |
| Bell and Howell | Multi Motion 1623-Z | |
| Bell and Howell | Multi Motion 1440 | |
| Bell and Howell | Multi Motion 162-OZ | |
| Bell and Howell | 497-A | |
| Bell and Howell | Multi Motion 1615-Z | |
| Bell and Howell | Lumina II MX-33 | |
| Bell and Howell | Multi Motion 1400 | |
| Bell and Howell | Multi Motion 1623 | |
| Bell and Howell | Lumina II MX-60 | |
| Bell and Howell | Lumina II LX-20 | |
| Bell and Howell | Lumina II MX-43 | |
| Bell and Howell | Lumina II LX-38 | |
| Bell and Howell | Multi Motion 1641-Z | |
| Bell and Howell | Multi Motion 467 | |
| Bell and Howell | Lumina II LX-28 | |
| Bell and Howell | Multi Motion 467-ZB | |
| Bell and Howell | Lumina II LX-30 | |
| Bell and Howell | Multi Motion 467-Z | |
| Bell and Howell | Multi Motion 1421 | |
| Bell and Howell | Multi Motion 1640 | |
| Bell and Howell | Multi Motion 1404 | |
| Bell and Howell | Multi Motion 471-Z | |
| Bell and Howell | Multi Motion 1441 | |
| Bell and Howell | Filmo 1620-Z | |
| Bell and Howell | Multi Motion 1460 | |
| Bell and Howell | Multi Motion 469-Z | |
| Bell and Howell | Multi Motion 1460-HZ | |
| Bell and Howell | Lumina II MX-58 | |
| Bell and Howell | Multi Motion ZB | |
| Bell and Howell | Multi Motion 1445 | |
| Bell and Howell | Multi Motion 1640-Z | |
| Bell and Howell | Lumina II MX-45 | |
| Bell and Howell | Multi Motion 1641 | |
| Bell and Howell | Lumina II QX-95 | |
| Bell and Howell | Driector 1621-A | |
| Bell and Howell | Multi Motion 1424 | |
| Bell and Howell | Multi Motion 1422-HZ | |
| Bell and Howell | Filmo 1620 | |
| Bell and Howell | Multi Motion 1417 | |
| Bell and Howell | Multi Motion 1461 | |
| Bell and Howell | Multi Motion 1620-Z | |
| Bell and Howell | Multi Motion 1615 | |
| Osawa | Lumina II LX-30 | Projector |
| Osawa | Lumina II LX-20 | Projector |
| Osawa | Lumina II MX-33 | Projector |
| Osawa | Filmosound 478-Z | Projector |
| Osawa | Lumina II MX-58 | Projector |
| Osawa | Multi Motion 469-Z | Projector |
| Osawa | Multi Motion 1615-Z | Projector |
| Osawa | Multi Motion 471-Z | Projector |
| Osawa | Filmo 1620 | Projector |
| Osawa | Lumina II MX-60 | Projector |
| Osawa | Filmo 1620-Z | Projector |
| Osawa | Lumina II LX-28 | Projector |
| Osawa | Multi Motion 467-Z | Projector |
| Osawa | Multi Motion 1640 | Projector |
| Osawa | Lumina II MX-43 | Projector |
| Osawa | Multi Motion 162-OZ | Projector |
| Osawa | Lumina II QX-95 | Projector |
| Osawa | Multi Motion 1623-Z | Projector |
| Osawa | Multi Motion 1641 | Projector |
| Osawa | Multi Motion 467-ZB | Projector |
| Osawa | Lumina II LX-38 | Projector |
| Osawa | Multi Motion 467 | Projector |
| Osawa | Lumina II MX-45 | Projector |
| Sears Roebuck | 9256 SEARS | |
| Sears Roebuck | 9253 SEARS | |
| Sears Roebuck | 9209 SEARS | |
DLD may also be listed as: | |||
| 1444 | 01444 EIKO | 01444 UPC | 01444 WIKO |
| 031293014443 EIKO | 46158 | 1000199 USHIO | 11357 STANDARDPRO |
| 3129301444 WIKO | 43168991285 | 43168991285UPC STANDARDPRO | 478-Z |
| BW-DLD | DFZ/DLD | DFZ/DLD ANSI | DLD |
| DLD ANSI | DLD ASA | DLD HIDSI | DLD INTERLIGHT |
| DLD LAMPTECH | DLD MICROLAMP | DLD USHIO | DLD WESTINGHOUSE |
| DLD WIKO | DLD-30 ANSI | DLD-30 ASA | DLD-30V |
| DLD-30V ANSI | DLD-30V ASA | DLD-30V-80W | DLD-30V-80W ANSI |
| DLD-30V-80W ASA | DLD-30V-80W-G17Q-T-14-CC-6-CLEAR-3400K-15H-BDTH-3-1/2MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-DICHROIC-REFLECTOR-FOCAL-DIST.-1-3/4 | DLD-30V-80W-G17Q-T14-CC6-CLEAR-3400K-15H-BDTH-3-1/2MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-DICHROIC-REFLECTOR-FOCAL-DIST-1-3/4 | DLD-30V/30V/80W/G17Q ANSI |
| DLD-30VOLT ANSI | DLD-30VOLT ASA | DLD-80W-30 SYLVANIA | DLD-80W-30V SYLVANIA |
| DLD-80WATT-30VOLT SYLVANIA | DLD-DFZ ANSI | DLD-DFZ ASA | DLD-DFZ EIKO |
| DLD-DFZ SYLVANIA | DLD-DFZ WESTINGHOUSE | DLD-DFZ WIKO | DLD/30 |
| DLD/30V/80W/G17Q ANSI | DLD/DFZ | DLD/DFZ BULB-DIRECT | DLD/DFZ INTERLIGHT |
| DLD/DFZ MICROLAMP | DLD/DFZ STANDARDPRO | DLD/T14-30V-80W-4-PIN LAMPTECH | DLD80-30 SYLVANIA |
| DLD80-30V SYLVANIA | I/15V/80W/GX17Q/T14/PHOTO | I/30V/80W/G17Q-B34/T14/CC6/15H/DLD | I/30V/80W/G17Q-B34/T14/CL/15H/DLD |
| I/30V/80W/G17Q/T14/CC6/15H/DLD | I/30V/80W/G17Q/T14/CL/15H/DLD | LX-28 | SP80T14G17QB34CC630V-DLD |
| SP80T14G17QB34CL30V-DLD | SP80T14G17QCC630V-DLD | SP80T14G17QCL30V-DLD | T-14/80W/30V/GX17Q/DLD/DFZ STANDARDPRO |
