DLG ANSI Code

DLG ANSI is a T14 lamp with a G17q-B34 base operating at 150 watts and 21 volts. It has a color temperature of 3250 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DLG lamps.

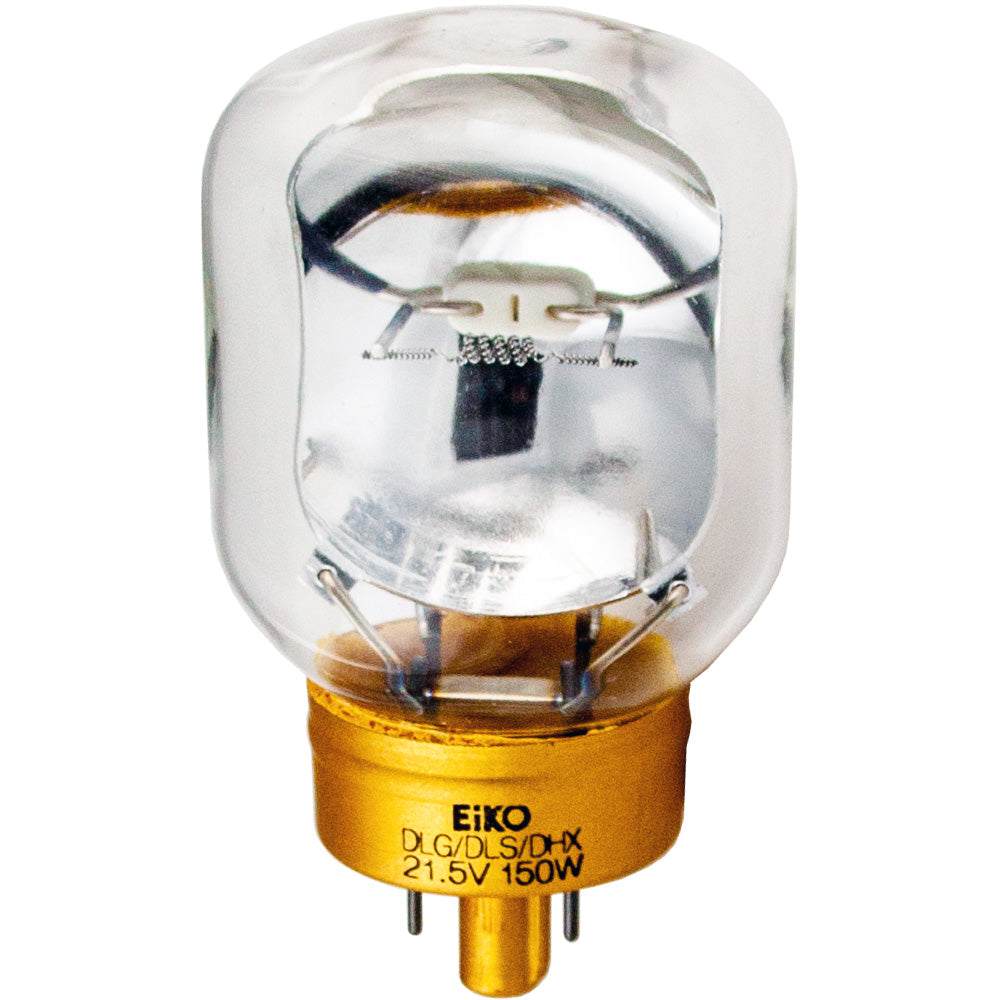

DLG Photograph

DLG

Electrical Specifications

Amps7.14
Volts21
Watts150

Photometrics

Color Temperature3250
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-B34
Bulb ShapeT14
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/8

Operating Characteristics

Burn PositionBDTH
Life Hours15

General Information
Lamp CodeDLG
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsDLS, DHX

T14 Shape

T14
Diameter Designation14/8"
Glass Diameter 1 3/4" (1.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G17q-B34 Base

G17q-B34

Cross Reference Part Numbers

BrandMPNDescriptionAvailability

Equipment Used In

BrandModelType
Bell and Howell Director 383
Bell and Howell Autoload Super 363
Bell and Howell Touch Tronic 380
Bell and Howell Design 363
Bell and Howell Director 465
Bell and Howell Director 363
Bell and Howell Lumina Director
Bell and Howell Touch Tronic 370
Bell and Howell Lumina 1.2
Bell and Howell Director 460
Bell and Howell Director Super 363
Bell and Howell Touch Tronic 475
Bell and Howell Tronic 475
Copal / Sekonic 30-HL
Copal / Sekonic 30-J
DeJur Amsco Vista Duo PT-60
DeJur Amsco Vista Duo PT-70
DeJur Amsco Vista Duo PJ-60
DeJur Amsco Remote Command DP-70
Dukane Versatile 2 Projector
Dukane Versatile I Projector
Eastman Kodak Chevron Sound 8 C
Eastman Kodak Showtime Sound-8 C
Eastman Kodak Super A-35
Eastman Kodak Analyst A-75
Eastman Kodak Sound 8-1 (models w/ serial numbers)
Eastman Kodak Chevron 10
Eastman Kodak Chevron 1
Eastman Kodak Instmatic Sound M-100
Eastman Kodak Chevron Hi-Mat Super A-35
Eastman Kodak Sound 8 (models w/ serial numbers)
Eastman Kodak Chevron Zoom
Eastman Kodak Showtime A-35
Eastman Kodak Sound 8 (serial number C)
Eastman Kodak Sound 8 M-100
Eastman Kodak Chevron Showtime Super A-35
Eastman Kodak Chevron Showtime Super A-25
Eastman Kodak Chevron Super A-35
Eastman Kodak Chevron Sound 8 (serial C)
Eastman Kodak Chevron Hi-Mat A-35
Eastman Kodak Chevron Showtime-A-35
Eastman Kodak Chevron Super A-25
Korvette AUTOMATIC
MPO Videotronic Super-8
MPO Videotronic
Osawa Director 383 Projector
Osawa Director 460 Projector
Osawa Touch Tronic 475 Projector
Osawa Director Lumina Projector
Osawa Touch 475 Projector
Sears Roebuck 9220 SUPER-8 Projector Slide / Filmstrip
Sears Roebuck 9289 SEARS Projector Slide / Filmstrip
Sears Roebuck Super Automatic 1910 Projector Slide / Filmstrip
Sears Roebuck 9280 SEARS Projector Slide / Filmstrip
Sears Roebuck 9299 SEARS Projector Slide / Filmstrip
Sears Roebuck 9282 TOWER Projector Slide / Filmstrip
Sears Roebuck Super Automatic Projector Slide / Filmstrip
Sears Roebuck 9291 TOWER Projector Slide / Filmstrip
Sears Roebuck 9288 SEARS Projector Slide / Filmstrip
Sears Roebuck 9290 TOWER Projector Slide / Filmstrip
Sears Roebuck Super Automatic 9203 Projector Slide / Filmstrip
Sears Roebuck Super Automatic 9202 Projector Slide / Filmstrip
Sears Roebuck 9282 SEARS Projector Slide / Filmstrip
Sears Roebuck 1910 TOWER Projector Slide / Filmstrip
Sears Roebuck 9299 TOWER Projector Slide / Filmstrip
Sears Roebuck 9220 SEARS Projector Slide / Filmstrip
Sears Roebuck Automatic Projector Slide / Filmstrip
Sears Roebuck 1910 SUPER Projector Slide / Filmstrip
Simmon Omega A-6 Enlarger / Photo Printer
Yashica 8P2 8mm Projector Movie
