DLN ANSI Code

DLN ANSI is a T12 lamp with a G17q-A2A base operating at 750 watts and 125 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DLN lamps.

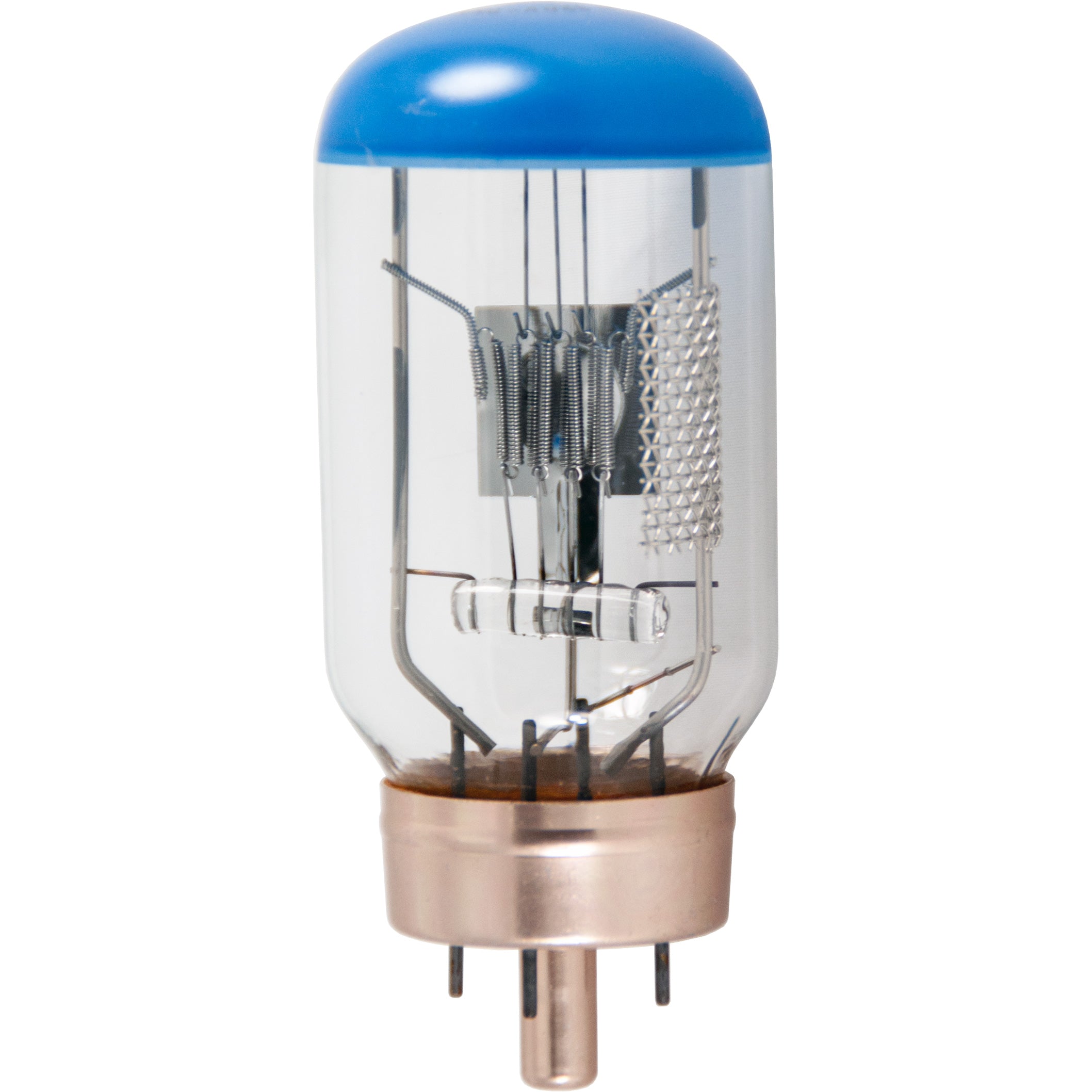

DLN Photograph

DLN

Electrical Specifications

Amps6
Volts125
Watts750

Photometrics

Color Temperature3250
Light Center Length (LCL)1 3/4

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionHorizontal
Life Hours25

General Information
Lamp CodeDLN
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDLN750W, 120V
Microlites120-750-31N
Canimpex120-750-31N

Equipment Used In

BrandModelType
Singer Corporation Graflex SM-1000
Singer Corporation Instructor (new)
Singer Corporation SM-1000
Singer Corporation Instructor
