DMK ANSI Code
DMK ANSI is a T14 lamp with a G17q-A12 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DMK lamps.
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 120 |
| Watts | 500 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1 5/8 |
Physical Characteristics | |
| Base | G17q-A12 |
|---|---|
| Bulb Shape | T14 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | Lens Down |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | DMK |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T14 Shape | |
 | |
| Diameter Designation | 14/8" |
|---|---|
| Glass Diameter | 1 3/4" (1.75") |
| Shape Code | T |
| Shape Classification | Tubular |

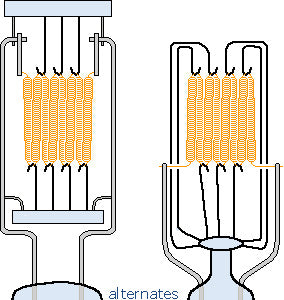

C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-500-31K | ||
| Canimpex | 120-500-31K | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Model 088-B-6 | |
| 3M | Desk Top Projector 088 | |
| Singer Corporation | Graflex-16 1015 | |
| Singer Corporation | Gralfex-16 900 | |
DMK may also be listed as: | |||
| 32632 GENERAL-ELECTRIC | 3477 3M | 502706 | 78-8454-3477 3M |
| 78-8454-3477-4 3M | BW-DMK | DMK ANSI | DMK ASA |
| DMK GENERAL-ELECTRIC | DMK INTERLIGHT | DMK LITE-SOURCE | DMK WIKO |
| DMK-120 ANSI | DMK-120 ASA | DMK-120 VOLT ANSI | DMK-120 VOLT ASA |
| DMK-120V ANSI | DMK-120V ASA | DMK-120V-500W | DMK-120V-500W ANSI |
| DMK-120V-500W ASA | DMK-120V-500W-G17Q-T-14-C-13D-CLEAR-3200K-75H-LENS-DOWN-3-5/8MOL-1-5/8LCL-I-OVERHEAD-PROJECTOR-PROXIMITY-REFL.-AND-CONDENSER-LENS | DMK-120V-500W-G17Q-T14-C13D-CLEAR-3200K-75H-LENS-DOWN-3-5/8MOL-1-5/8LCL-I-OVERHEAD-PROJECTOR-PROXIMITY-REFL-AND-CONDENSER-LENS | DMK-120V/120V/500W/G17Q ANSI |
| DMK-GE-500W/120V-4-PIN-PROJECTOR-BULB LITE-SOURCE | DMK/120V GENERAL-ELECTRIC | DMK/120V/500W/G17Q ANSI | DMK/500W/120V-4-PIN-PROJECTOR-BULB GENERAL-ELECTRIC |
| I/120V/500W/G17Q-A12/T14/C13D/75H | I/120V/500W/G17Q-A12/T14/C13D/75H/DMK | I/120V/500W/G17Q-A12/T14/CL/75H | I/120V/500W/G17Q-A12/T14/CL/75H/DMK |
| I/120V/500W/G17Q/T14/C13D/75H | I/120V/500W/G17Q/T14/C13D/75H/DMK | I/120V/500W/G17Q/T14/CL/75H | I/120V/500W/G17Q/T14/CL/75H/DMK |
| MODEL-88 3M | SP500T14G17Q-A12C13D120V | SP500T14G17QA12C13D120V-DMK | SP500T14G17QC13D-120V |
| SP500T14G17QC13D120V-DMK | SP500T14G17QCL-120V | SP500T14G17QCL120V-DMK | |
