DML ANSI Code
DML ANSI is a T14 lamp with a G17q-A12 base operating at 400 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DML lamps.

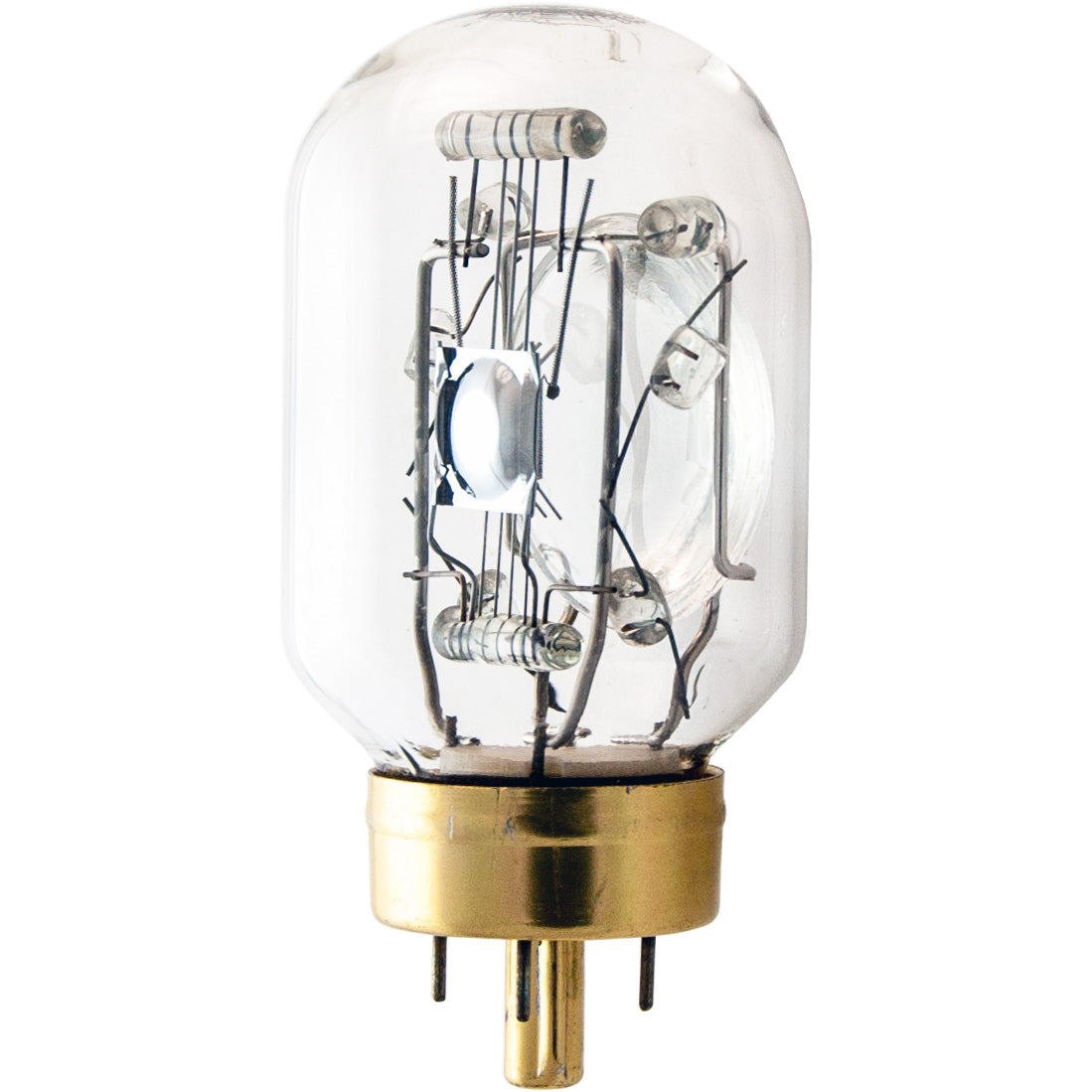

DML Photograph |
 |
Electrical Specifications | |
| Amps | 3.33 |
|---|---|
| Volts | 120 |
| Watts | 400 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1 5/8 |
Physical Characteristics | |
| Base | G17q-A12 |
|---|---|
| Bulb Shape | T14 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | Lens Down |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | DML |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| NATO Stock Number | 6240-01-049-2850 |
T14 Shape | |
 | |
| Diameter Designation | 14/8" |
|---|---|
| Glass Diameter | 1 3/4" (1.75") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | DML | 400W, 120V | |
| Microlites | 120-400-31 | ||
| Canimpex | 120-400-31 | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Desk Top Projector 088 | |
DML may also be listed as: | |||
| 3476 3M | 6240-01-049-2850 | 78-8454-3476 3M | 7884543476-6 3M |
| DML ANSI | DML ASA | DML GENERAL-ELECTRIC | DML INTERLIGHT |
| DML WIKO | DML-120 ANSI | DML-120 ASA | DML-120 VOLT ANSI |
| DML-120 VOLT ASA | DML-120V ANSI | DML-120V ASA | DML-120V-400W |
| DML-120V-400W ANSI | DML-120V-400W ASA | DML-120V-400W-G17Q-T-14-C-13D-CLEAR-3200K-75H-LENS-DOWN-3-5/8MOL-1-5/8LCL-I-OVERHEAD-PROJECTOR-PROXIMITY-REFL.-AND-CONDENSER-LENS | DML-120V-400W-G17Q-T14-C13D-CLEAR-3200K-75H-LENS-DOWN-3-5/8MOL-1-5/8LCL-I-OVERHEAD-PROJECTOR-PROXIMITY-REFL-AND-CONDENSER-LENS |
| DML-120V/120V/400W/G17Q ANSI | DML/120V GENERAL-ELECTRIC | DML/120V/400W/G17Q ANSI | I/120V/400W/G17Q-A12/T14/C13D/75H |
| I/120V/400W/G17Q-A12/T14/C13D/75H/DML | I/120V/400W/G17Q-A12/T14/CL/75H | I/120V/400W/G17Q-A12/T14/CL/75H/DML | I/120V/400W/G17Q/T14/C13D/75H |
| I/120V/400W/G17Q/T14/C13D/75H/DML | I/120V/400W/G17Q/T14/CL/75H | I/120V/400W/G17Q/T14/CL/75H/DML | SP400T14G17Q-A12C13D120V |
| SP400T14G17Q-A12CL120V | SP400T14G17QA12C13D120V-DML | SP400T14G17QA12CL120V-DML | SP400T14G17QC13D-120V |
| SP400T14G17QC13D120V-DML | SP400T14G17QCL-120V | SP400T14G17QCL120V-DML | |
