DMS ANSI Code

DMS ANSI is a T20 lamp with a E26 base operating at 500 watts and 100 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DMS lamps.

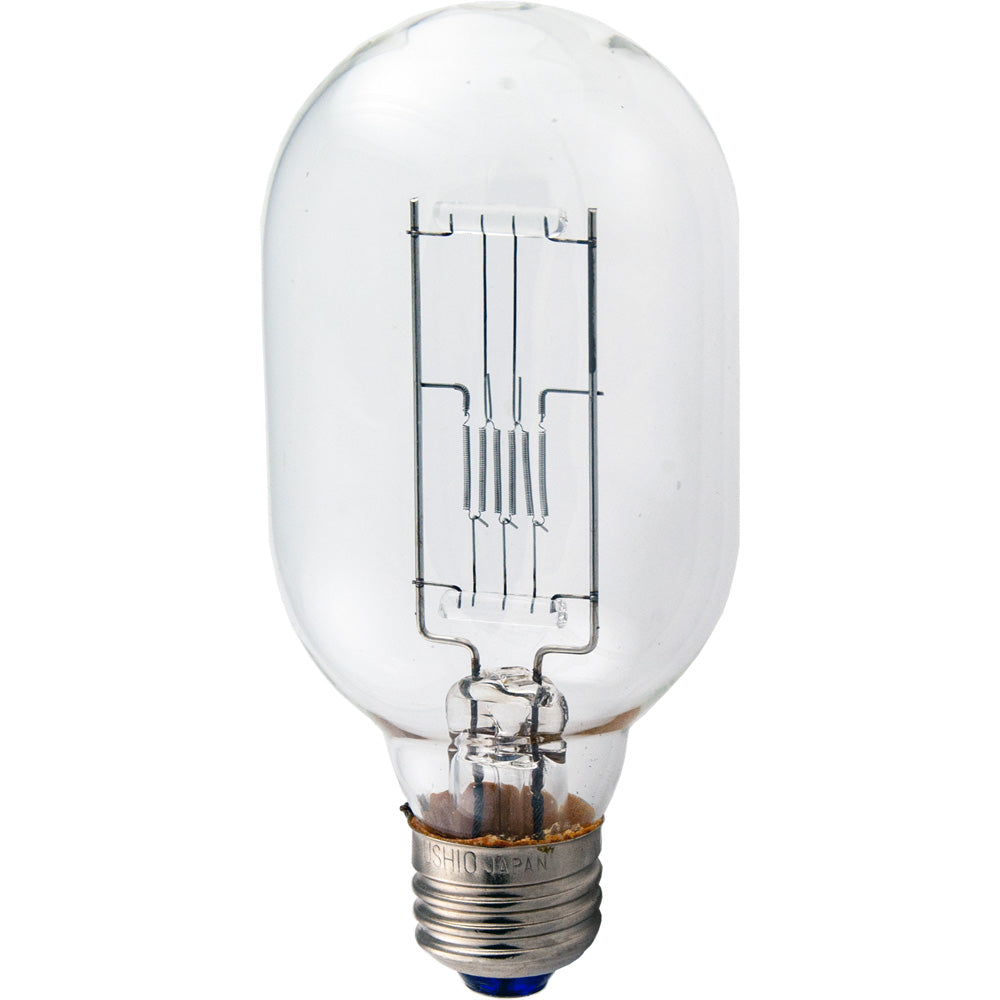

DMS Photograph

DMS

Electrical Specifications

Amps5
Volts100
Watts500

Photometrics

Candlepower1100
Color Temperature3200
Light Center Length (LCL)3
Lumens13200

Physical Characteristics

BaseE26
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)5 1/2

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeDMS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 240V Use A1-42/240V/500W

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-500-48
Canimpex120-500-48

Equipment Used In

BrandModelType
AO Reichert E
AO Reichert V
AO Reichert B
AO Reichert Y
AO Reichert S
AO Reichert H
AO Reichert D
AO Reichert C
Bausch & Lomb Balopticon AU-3
Bausch & Lomb Balopticon AM
Bausch & Lomb Balopticon BM-15
Bausch & Lomb Balopticon AU-1
Bausch & Lomb Balopticon LRM
Bausch & Lomb Balopticon ERM
Beseler Photo Marketing (Charles Beseler) LN-1700 Overhead Projector
Meopta Optirex II
Meopta Epidascope
Meopta Optirex Epidascope
Meopta Epirex Opaque
Meopta Opaque
National Picture Service National D
National Picture Service No. 1
SOS Photo Cine Optics Streamline 35mm Movie Projector
