DMX ANSI Code

DMX ANSI is a T20 lamp with a P28s base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DMX lamps.

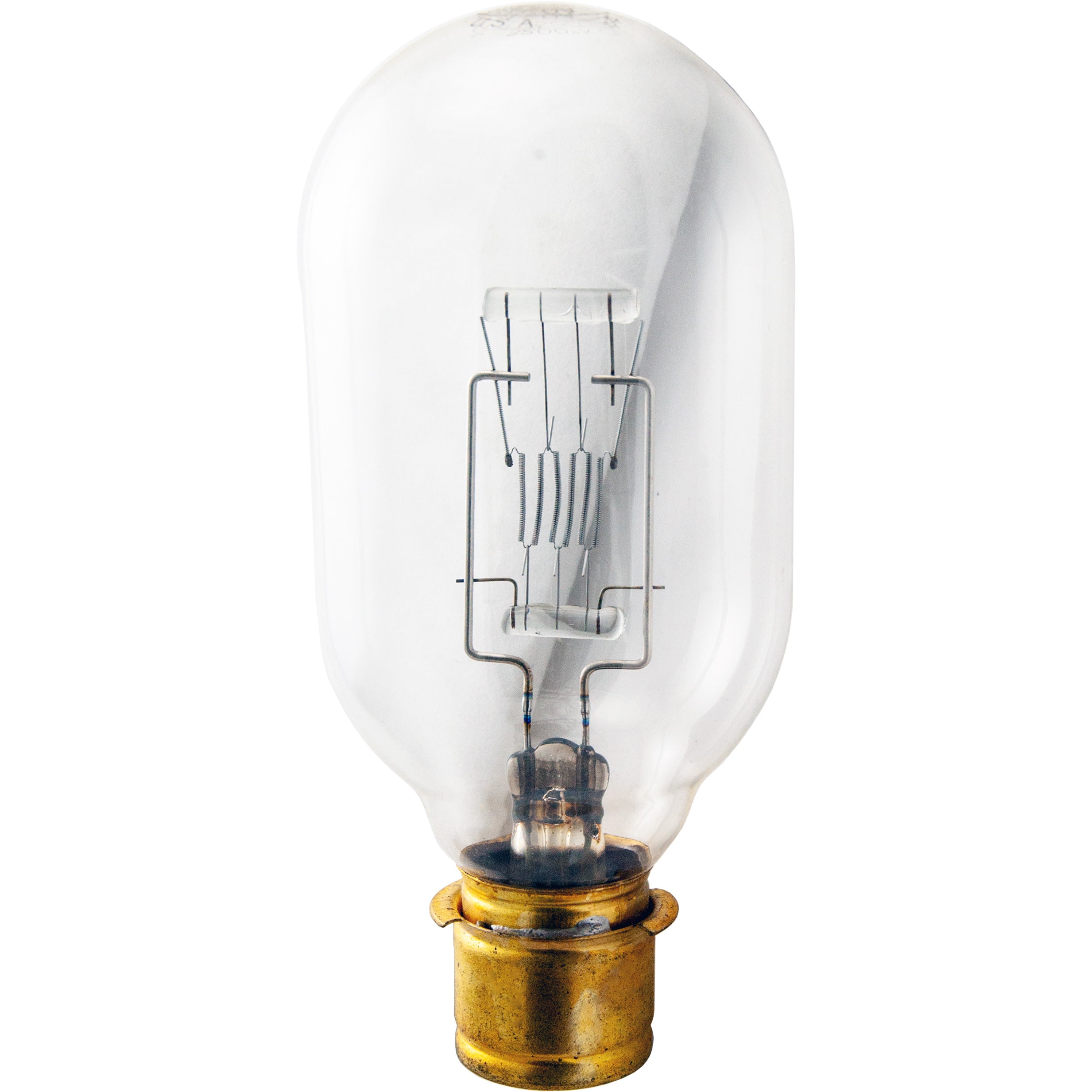

DMX Photograph

DMX

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower910
Color Temperature3200
Light Center Length (LCL)2 3/16
Lumens13200

Physical Characteristics

BaseP28s
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionBD ± 30°
Life Hours50

General Information
Lamp CodeDMX
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-143-3042

Substitution Notes
For 220V Use A1-8/220V/500W
For 240V Use A1-8/240V/500W

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-500-63X
Canimpex120-500-63X

Equipment Used In

BrandModelType
AO Reichert D
AO Reichert DK
AO Reichert VACK
AO Reichert BC
AO Reichert V
AO Reichert VA
AO Reichert H
AO Reichert VC
AO Reichert S
AO Reichert C
AO Reichert YAC
AO Reichert YA
AO Reichert Y
AO Reichert E
AO Reichert VAC
AO Reichert B
AO Reichert DA
AO Reichert SAC
AO Reichert SA
AO Reichert DC
Bausch & Lomb Balopticon ERM
Bausch & Lomb BM-6-Q
Bausch & Lomb Balopticon BDT-12
Bausch & Lomb Balopticon ERM-14
Bausch & Lomb Balopticon BM-18
Bausch & Lomb KOSB
Bausch & Lomb BOH Overhead
Bausch & Lomb Balopticon BDT-10-Q
Bausch & Lomb Balopticon KO
Bausch & Lomb KOB
Bausch & Lomb Balopticon LRM-14
Bausch & Lomb Balopticon KOB
Bausch & Lomb Balopticon KRF
Bausch & Lomb Balopticon AU-1
Bausch & Lomb Balopticon BDT-8-Q
Bausch & Lomb Balopticon BM-22
Bausch & Lomb KRF
Bausch & Lomb Balopticon AM
Bausch & Lomb KO
Bausch & Lomb Balopticon BM-4-QS
Bausch & Lomb Balopticon BDT-6-Q
Bausch & Lomb Balopticon KOS
Bausch & Lomb Balopticon LRM
Bausch & Lomb Balopticon KOSB
Bausch & Lomb Balopticon CR
Bausch & Lomb BM-VI-Q
Bausch & Lomb BM-4-QS
Bausch & Lomb Balopticon BM-6-Q
Bausch & Lomb Balopticon BDT-20
Bausch & Lomb Balopticon BMP
Bausch & Lomb Balopticon BDT-15
Bausch & Lomb Balopticon BM-10
Bausch & Lomb Balopticon ERM-18
Bausch & Lomb BBL-60
Bausch & Lomb BDT-20
Bausch & Lomb Balopticon BDT-10
Bausch & Lomb Balopticon LRM-18
Bausch & Lomb Balopticon BDT-60
Bausch & Lomb Balopticon AU-3
Bausch & Lomb BDT-10-Q
Bausch & Lomb Balopticon BOH
Bausch & Lomb Balopticon BM-12
Bausch & Lomb Balopticon BBL-60
Bausch & Lomb Balopticon BM-15
Bausch & Lomb BM-22
Bausch & Lomb BDT-6-Q
Bausch & Lomb BDT-4
Bausch & Lomb BDT-8-Q
Bausch & Lomb KOS
Bausch & Lomb Balopticon BDT-4
Bausch & Lomb BM-IV-QS
Bausch & Lomb CR
Beseler Photo Marketing (Charles Beseler) LN-1600 Overhead Projector
Beseler Photo Marketing (Charles Beseler) DD
Beseler Photo Marketing (Charles Beseler) Stereomotograph (All) Overhead Projector / Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Standard Overhead Projector
Beseler Photo Marketing (Charles Beseler) Stereomotograph C Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Transpaque Jr. Overhead Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Opor-Slide Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master Satellite 88 Overhead Projector
Beseler Photo Marketing (Charles Beseler) OA-1 Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Lyte Opor-Slide Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) D
Beseler Photo Marketing (Charles Beseler) OA-3 (new) Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) A
Beseler Photo Marketing (Charles Beseler) Standard Overhead Projector / Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) LN Overhead Projector
Beseler Photo Marketing (Charles Beseler) Stereomotograph TA Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) LN-1700 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master 88 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Stereomotograph SA Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Century Overhead Projector
Beseler Photo Marketing (Charles Beseler) Vu-all Transparency Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Royal Overhead Projector
Beseler Photo Marketing (Charles Beseler) Royal Overhead Projector
Beseler Photo Marketing (Charles Beseler) B
Beseler Photo Marketing (Charles Beseler) G
Beseler Photo Marketing (Charles Beseler) OA-3 (old) Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) OA-4 (old) Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master Royal Overhead Projector
Beseler Photo Marketing (Charles Beseler) Transpaque-Opaque II Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master X-Ray Overhead Projector
Beseler Photo Marketing (Charles Beseler) Econ-O-Graph Overhead Projector
Beseler Photo Marketing (Charles Beseler) Stereomotograph SB Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Stereomotograph SW Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Transparency Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Opaque Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) C
Beseler Photo Marketing (Charles Beseler) Stereomotograph TB Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) OA-2 Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-all Opaque Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) OA-4 (new) Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) C-1212
DeVry ESF 35mm Sound Movie Projector
DeVry EU 35mm Sound Movie Projector
DeVry E 35mm Sound Movie Projector
Elmo Master 1048
Elmo Master C-61
Elmo Master 447
Elmo Master C-58
Elmo Master 1047
GoldE Manufacturing Co. Air Flo 1043 8mm Projector Movie Sound
GoldE Manufacturing Co. X
GoldE Manufacturing Co. Master 1049 8mm Projector Movie Sound
GoldE Manufacturing Co. Master 447
GoldE Manufacturing Co. Combination 1047 Projector Slide / Filmstrip
GoldE Manufacturing Co. All Purpose 1048
GoldE Manufacturing Co. X Master
GoldE Manufacturing Co. Master 543
Good-All Electric Company Sound On Film 35mm Sound Movie Projector
Holmes Projector Company Tutor
Honeywell Master 1048
Honeywell Master 1047
Honeywell Heiland 1047
Honeywell Master C-58
Honeywell Heiland Master 447
Honeywell Heiland Air-Flo C-61
Honeywell Heiland 1048
Honeywell Master C-61
Keystone Camera Co. Inc. Special Lantern Projector Slide / Filmstrip
Keystone Camera Co. Inc. Lantern Projector Slide / Filmstrip
Liesegang Avanti 62 Projector
Moviola Mfg. Co. P Viewer/Editing
Moviola Mfg. Co. UPX Viewer/Editing
Naren Industries Pro-Spot N-102 Graphic Arts
Ozalid Projecto-Lite Projector Opaque / Transparency
SOS Photo Cine Optics Cinemaphone 35-T 35mm Movie Projector
SOS Photo Cine Optics X-Radiola 35mm Movie Projector
Sentry Safety Control Corp. Universal 20 Movie Projector
Sentry Safety Control Corp. Universal 66 35mm Movie Projector
Sentry Safety Control Corp. Universal 10 35mm Movie Projector
Sentry Safety Control Corp. Universal 33 35mm Movie Projector
Victor Animatograph 2 8mm Projector Movie Sound
Victor Animatograph 11 16mm Projector
Victorlite Industries Visualcast 4000 Projector Opaque / Transparency
Victorlite Industries Visualcast Instructor Projector Opaque / Transparency
Victorlite Industries Visualcast Traveler Projector Opaque / Transparency
Victorlite Industries Visualcast 3000 Projector Opaque / Transparency

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
