DNS ANSI Code

DNS ANSI is a T12 lamp with a P28s base operating at 500 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DNS lamps.

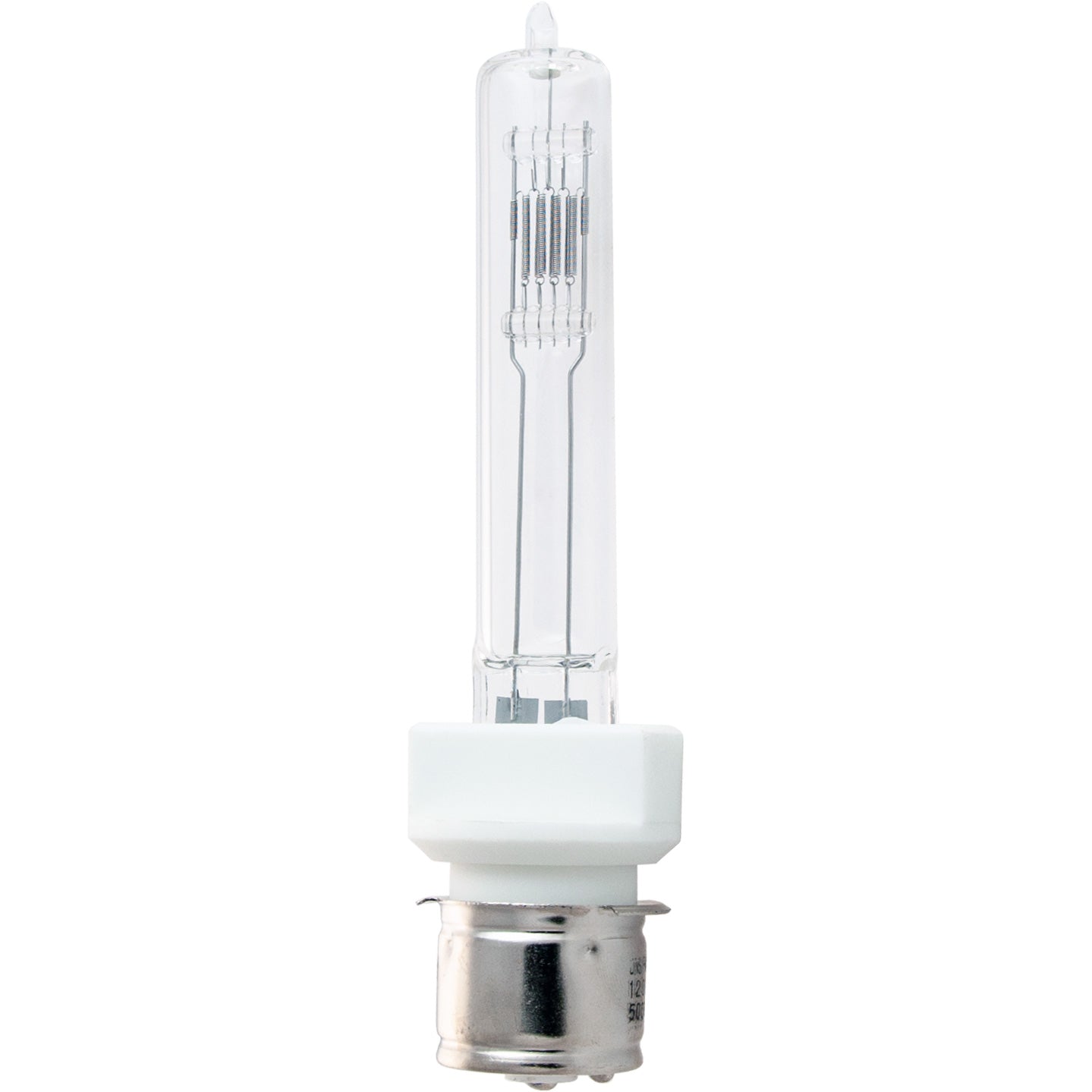

DNS Photograph

DNS

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower880
Color Temperature2950
Light Center Length (LCL)3 1/2
Lumens11000

Physical Characteristics

BaseP28s
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)6 1/8

Operating Characteristics

Burn PositionBU ± 30°
Life Hours200

General Information
Lamp CodeDNS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Ushio1000208FMC/DNS, JCS120V-500WB2
Norman LampsDNS/FMC500W, 120V
Microlites120-500-63S
Canimpex120-500-63S
