DNT ANSI Code

DNT ANSI is a T12 lamp with a P28s base operating at 750 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DNT lamps.

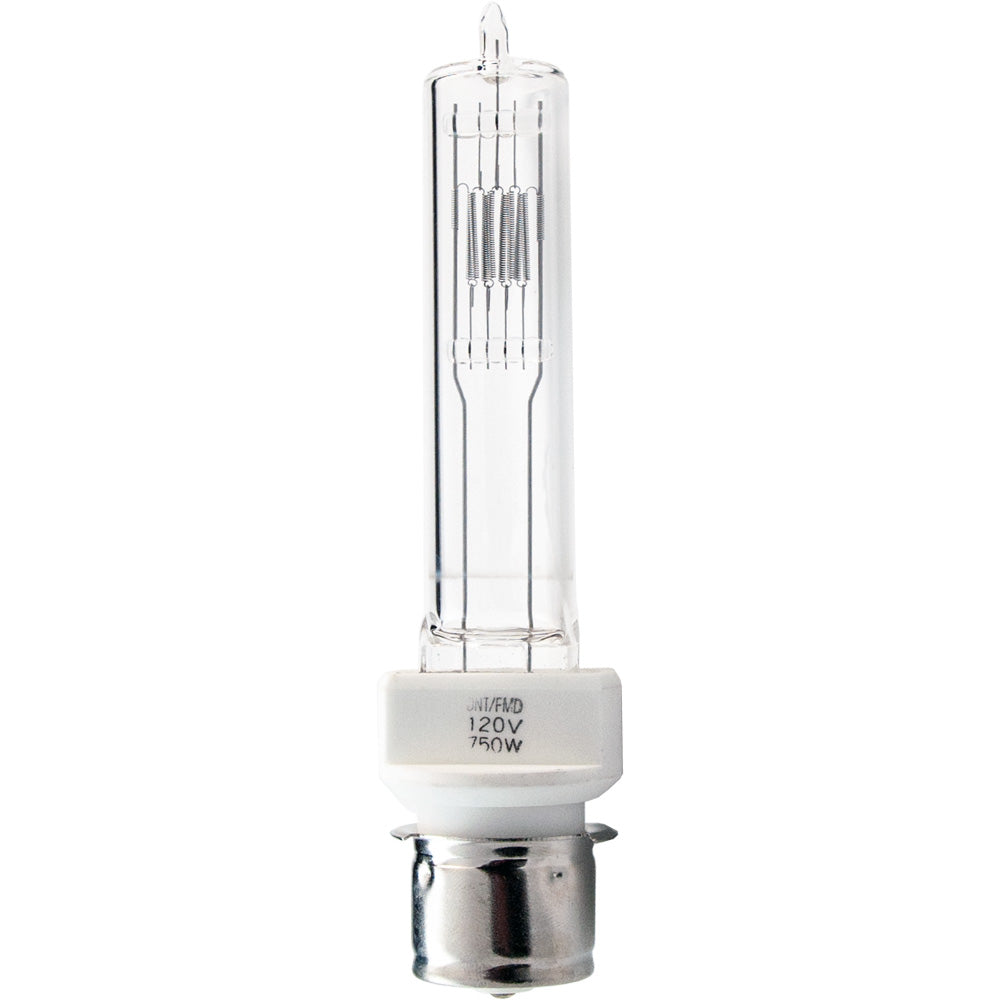

DNT Photograph

DNT

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Beam SpreadMedium Spot
Candlepower1400
Color Temperature3000
Light Center Length (LCL)3 1/2
Lumens17000

Physical Characteristics

BaseP28s
Bulb ShapeT12
FilamentC-13D
FinishClear
Max Overall Length (MOL)6 1/8

Operating Characteristics

Burn PositionBU ± 30°
Life Hours200

General Information
Lamp CodeDNT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Ushio1000209FMD/DNT, JCS120V-750WB2
Microlites120-750-63T
Microlites120-1000-63V
Canimpex120-750-63T
Canimpex120-1000-63V
