DPB ANSI Code
DPB ANSI is a T20 lamp with a E26 base operating at 750 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DPB lamps.
Electrical Specifications | |
| Amps | 6.25 |
|---|---|
| Volts | 120 |
| Watts | 750 |
Photometrics | |
| Candlepower | 1600 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 3 |
| Lumens | 19500 |
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | T20 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 5 1/2 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | DPB |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T20 Shape | |
 | |
| Diameter Designation | 20/8" |
|---|---|
| Glass Diameter | 2 1/2" (2.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

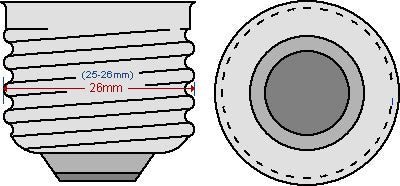

E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-750-48B | ||
| Canimpex | 120-750-48B | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Kodascope Sixteen 10 | |
| International Audio Visual Ltd. | 1-AV-MS-862 | Projector Slide / Filmstrip |
| International Audio Visual Ltd. | 1-AV-MS-86-D | Projector Slide / Filmstrip |
| International Audio Visual Ltd. | 1-AV-MS-850 | Projector Slide / Filmstrip |
| International Audio Visual Ltd. | 1-AV-MS-863 | Projector Slide / Filmstrip |
| International Audio Visual Ltd. | 1-AV-MS-861 | Projector Slide / Filmstrip |
| International Audio Visual Ltd. | 1-AV-MS-860 | Projector Slide / Filmstrip |
DPB may also be listed as: | |||
| DPB ANSI | DPB ASA | DPB INTERLIGHT | DPB SYLVANIA |
| DPB-120 ANSI | DPB-120 ASA | DPB-120 VOLT ANSI | DPB-120 VOLT ASA |
| DPB-120V ANSI | DPB-120V ASA | DPB-120V-750W | DPB-120V-750W ANSI |
| DPB-120V-750W ASA | DPB-120V-750W-E26-T20-C13D-CLEAR-19500L-3200K-25H-BD-5-1/2MOL-3LCL-I-PROJECTION | DPB-120V-750W-E26S-T-20-C-13D-CLEAR-19500L-3200K-25H-BD-5-1/2MOL-3LCL-I-PROJECTION | DPB-120V/120V/750W/E26 ANSI |
| DPB/120V/750W/E26 ANSI | I/120V/750W/E26/T20/C13D/25H | I/120V/750W/E26/T20/C13D/25H/DPB | I/120V/750W/E26/T20/CL/25H |
| I/120V/750W/E26/T20/CL/25H/DPB | KP-20-E-DPB KONDO | SP750T20E26C13D-120V | SP750T20E26C13D120V-DPB |
| SP750T20E26CL-120V | SP750T20E26CL120V-DPB | SP750T20MC13D-120V | SP750T20MC13D120V-DPB |
| SP750T20MCL-120V | SP750T20MCL120V-DPB | ||
