DPT ANSI Code

DPT ANSI is a T20 lamp with a E39 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DPT lamps.

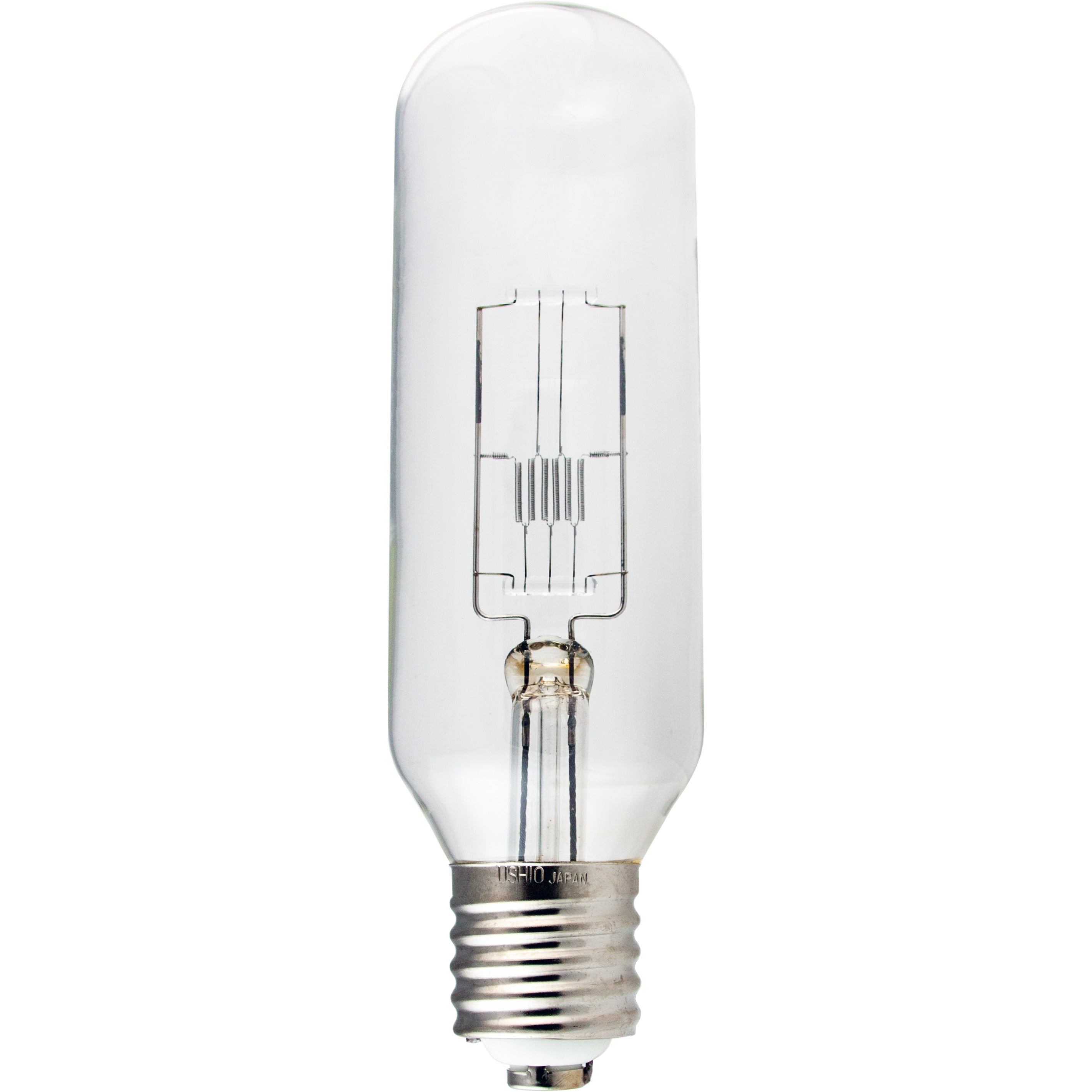

DPT Photograph

DPT

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3200
Light Center Length (LCL)4 3/4
Lumens28000

Physical Characteristics

BaseE39
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)9 1/16

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeDPT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 240V Use A1-57/240V/1000W

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

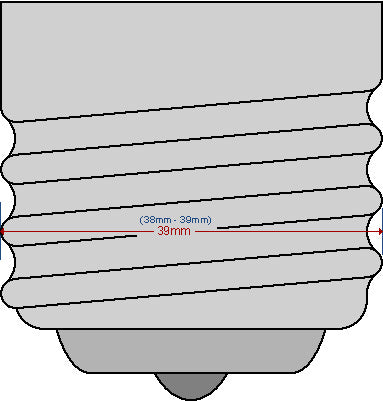

E39 Base

E39

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-1000-49T
Canimpex120-1000-49T

Equipment Used In

BrandModelType
AO Reichert J
Bernkert Projection F-2 Filmstrip / Slide Projector
Bernkert Projection F-6 Filmstrip / Slide Projector
Beseler Photo Marketing (Charles Beseler) Projex 1010 Projector Opaque / Transparency
Genarco Incorporated Master 6800
General Motor Sign Co. General Motorsign
George R. Snell Associates Genarco Master 6800
GoldE Manufacturing Co. Dissolver
SOS Photo Cine Optics Standard Viewer/Editing
Victor Animatograph Hi-Power Viewer/Editing

DPT may also be listed as:
01550 EIKO01550 UPC01550 WIKO031293015501 EIKO
048777113585 UPC1000-T20 WESTINGHOUSE1000-T20-E39-C1000-T20-E39-C-115
1000-T20-E39-C-115V1000-T20-E39-C-1201000-T20-E39-C-120V1000-T20-E39-CL
1000-T20-E39-CL-1151000-T20-E39-CL-115V1000-T20-E39-CL-1201000-T20-E39-CL-120V
1000-T20-MOG-C1000-T20-MOG-C-1151000-T20-MOG-C-115V1000-T20-MOG-C-120
1000-T20-MOG-C-120V1000-T20-MOG-CL1000-T20-MOG-CL-1151000-T20-MOG-CL-115V
1000-T20-MOG-CL-1201000-T20-MOG-CL-120V1000213 BLV1000213 USHIO
1000T20-120 WESTINGHOUSE1000T20-120V WESTINGHOUSE1000W/T201000WATT-T20 WESTINGHOUSE
1000WATT-T20-120 VOLT WESTINGHOUSE1000WATT-T20-E39S-CLEAR1000WATT-T20-E39S-CLEAR-115VOLT1000WATT-T20-E39S-CLEAR-120 VOLT
115V-1000W-E39-T20-C13-CL1M/T20 GENERAL-ELECTRIC29959 STANDARDPRO3129301550 WIKO
4316829959643168299596UPC STANDARDPRO50080 OSRAM50080 TUNGSRAM
509457 TUNGSRAM57-7880D57-7890D57.788-OD OSRAM
57.7880-D OSRAM57.7890-D OSRAM57.7890-D-220V-1000 OSRAM57.7890-D-220V-1000W OSRAM
57.7890D220-1000 OSRAM57.7890D220-1000W OSRAM5994100094579 TUNGSRAM942-334 OSRAM
945503A1-57 120A1-57 120VA1-57 ATLAS
A1-57 LIFA1-57 THORNA1-57-115V LIFA1-57-115V MAZDA
A1-57-115V OSRAMA1-57-115V ROYAL-EDISWANA1-57-115V-1000W-E39 LIFA1-57-115V-1000W-E40 LIF
A1-57-120 ATLASA1-57-120 LIFA1-57-120 THORNA1-57-120 VOLT ATLAS
A1-57-120 VOLT LIFA1-57-120 VOLT THORNA1-57-120V ATLASA1-57-120V LIF
A1-57-120V THORNA1-57-120V-1000W-E39 LIFA1-57-120V-1000W-E40 LIFA1-57/115V/1000W
A1-57/115V/1000W ATLASA1-57/115V/1000W LIFA1-57/115V/1000W THORNA1-57/120V/1000W LIF
A1-57/120V/1000W THORNA1/57-115V-1000W-E40-T64-C13-CLEAR-27500LM-3100K-100H-VBD-240MMMOL-120MMLCL-IA1/57-115V-1000W-E40S-T-64-C-13-CLEAR-25000L-3100K-100H-VBD-240MMMOL-120MMLCL-I-27500LM-AT-115VA1/57-115V-1000W-G.E.S ROYAL-EDISWAN
A1/57-115V-1000W-GES ROYAL-EDISWANA1/57-115V-115V-G.E.S. ROYAL-EDISWANA1/57-115V-115V-GES ROYAL-EDISWANA1/57-120 VOLT
AIRWAY-BEACON-1000W-115AIRWAY-BEACON-1000W-115VAIRWAY-BEACON-1000W-120AIRWAY-BEACON-1000W-120V
AIRWAY-BEACON-1000WATT-115VOLTAIRWAY-BEACON-1000WATT-120 VOLTAIRWAYBEACON1000-115AIRWAYBEACON1000-115V
AIRWAYBEACON1000-120AIRWAYBEACON1000-120VD-727 GENERAL-ELECTRICDPT ANSI
DPT ASADPT BULB-DIRECTDPT EIKODPT GENERAL-ELECTRIC
DPT HIDSIDPT INTERLIGHTDPT LAMPTECHDPT MICROLAMP
DPT STANDARDPRODPT USHIODPT WESTINGHOUSEDPT WIKO
DPT-1 ANSIDPT-1 ASADPT-1000W-120V-E39 USHIODPT-115V ANSI
DPT-115V/115V/1000W/E39 ANSIDPT-120V-1000WDPT-120V-1000W ANSIDPT-120V-1000W ASA
DPT-120V-1000W GENERAL-ELECTRICDPT-120V-1000W PACIFIC-ELECTRONICSDPT-120V-1000W-E39 ANSIDPT-120V-1000W-E39 GENERAL-ELECTRIC
DPT-120V-1000W-E39 USHIODPT-120V-1000W-E39-T20-C13-CLEAR-28000L-3200K-50H-BD-9-1/16MOL-4-3/4LCL-I-OPAQUE-PROJECTORDPT-120V-1000W-E39S-T-20-C-13-CLEAR-28000L-3200K-50H-BD-9-1/16MOL-4-3/4LCL-I-OPAQUE-PROJECTORDPT-120V-1000W/GE-DPT-120V-1000W-E39-BASE-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTD
DPT-120V-T64MM-230MMMOL-125MMLCL-C-13-29000L-3200K-50H-BD-1000213 BLVDPT-120V-T64MM-230MMMOL-125MMLCL-C-13-29000L-3200K-50H-BD-1000213 USHIODPT-120V/120V/1000W/E39 ANSIDPT-E39 ANSI
DPT/115V/1000W ANSIDPT/115V/1000W/E39 ANSIDPT/120V GENERAL-ELECTRICDPT/T20-120V-1000W-MOGUL LAMPTECH
DPT120V1000WGE AC-ENTERTAINMENT-TECHNOLOGIES-LTDE39-1000W-DPT-120V-T64MM-230MMMOL-125MMLCL-C-13-29000L-3200K-50H-BD-1000213 BLVE39-1000W-DPT-120V-T64MM-230MMMOL-125MMLCL-C-13-29000L-3200K-50H-BD-1000213 USHIOE40-115V-1000W-PROJECTION ELECTROQUIP
EQ-A1/57/115V ELECTROQUIPFP-20LMC-13120V1000W-DPTFP-20LMC-13120V1000W-DPT PACIFIC-ELECTRONICSFP-20LMC-13120V1000W-DPT/E39/120V/1000W/64X230MM/125MMLCL/28000L/3200K/50H/C-13 PACIFIC-ELECTRONICS
GE-DPT-120V-1000W-E39-BASE-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTDI/115V/1000W/E39/T20/C13I/115V/1000W/E39/T20/C13/100HI/115V/1000W/E39/T20/C13/100H/A1-57-115V-1000W-E39 LIF
I/115V/1000W/E39/T20/C13/50HI/115V/1000W/E39/T20/C13/50H/DPT-115VI/115V/1000W/E39/T20/C13/CLI/115V/1000W/E39/T20/CL
I/115V/1000W/E39/T20/CL/50HI/115V/1000W/E39/T20/CL/50H/DPT-115VI/115V/1000W/E40/T20/C13/100HI/115V/1000W/E40/T20/C13/100H/A1-57-115V-1000W-E40 LIF
I/120V/1000W/E39/T20/50HI/120V/1000W/E39/T20/C13/100HI/120V/1000W/E39/T20/C13/100H/A1-57-120V-1000W-E39 LIFI/120V/1000W/E39/T20/C13/50H
I/120V/1000W/E39/T20/C13/50H/DPT-120VI/120V/1000W/E39/T20/CL/50HI/120V/1000W/E39/T20/CL/50H/DPT-120VI/120V/1000W/E40/T20/C13/100H
I/120V/1000W/E40/T20/C13/100H/A1-57-120V-1000W-E40 LIFINC-120V-1000W-C13-50HR/120V/1000W/E39 USHIOINC-120V-1000W-C13-50HR/120V/1000W/E39/DPT USHIOINC-120V-1000W-C13-50HR/DPT USHIO
KP-20-LM-C-13 KONDOPH-1000-T20 WESTINGHOUSEPH-1000W-T20 WESTINGHOUSEPH-1000WATT-T20 WESTINGHOUSE
PH-1000WATT-T20-120 VOLT WESTINGHOUSEPH/1000W/T20PH/1M/T20 GENERAL-ELECTRICPH1000T20-120 WESTINGHOUSE
PH1000T20-120V WESTINGHOUSEPH1000WT20-120 WESTINGHOUSEPH1000WT20-120V WESTINGHOUSEPROJECTION/115V/1000W/E40/100H/66X240MM ELECTROQUIP
PXCF RADIANTSP1000T20E39C13-115VSP1000T20E39C13115V-DPT-115VSP1000T20E39C13120V-DPT-120V
SP1000T20E39CL-115VSP1000T20E39CL115V-DPT-115VSP1000T20E39CL120VSP1000T20E39CL120V-DPT-120V
SP1000T20MOGC13-115VSP1000T20MOGC13115V-DPT-115VSP1000T20MOGC13120V-DPT-120VSP1000T20MOGCL-115V
SP1000T20MOGCL115V-DPT-115VSP1000T20MOGCL120VSP1000T20MOGCL120V-DPT-120VT-20/1000W/115-120V/E39/DPT STANDARDPRO
