DPY 120/240 ANSI Code

DPY 120/240 ANSI is a T19 lamp with a G38 base operating at 5000 watts and 120/240 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DPY 120/240 lamps.

Electrical Specifications

Amps41.7
Volts120/240
Watts5000

Photometrics

Candlepower1100
Color Temperature3200
Light Center Length (LCL)6 1/2
Lumens143000

Physical Characteristics

BaseG38
Bulb ShapeT19
FilamentC-13
FinishClear
Max Overall Length (MOL)11

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours500

General Information
Lamp CodeDPY 120/240
Code TypeANSI
Specification ReferenceANSI-SR24F2002

C-13 Filament

C-13
Coil TypeC - Single Coil

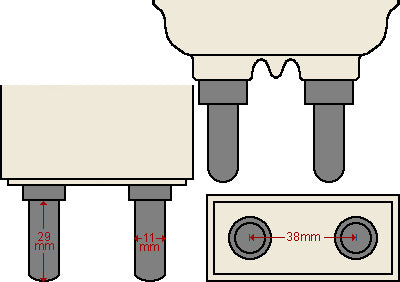

G38 Base

G38

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlas/ThornCP/29
Atlas/ThornCP/46
Bulbrite762085DPY
Colortran176-073
Colortran176-150
Colortran176-158
Colortran176-159
Colortran176-160
ColortranBS50-32/17
ColortranBS50-33/17
General Electric41736DPY-Q5000T20/4CL
Grainger6VN59
Osram Sylvania5455264805 CP/85 230V
Osram Sylvania5455364805 CP/85 240V
Osram Sylvania54647DPY
Philips319228DPY 500W 120V 6PK
Philips6378P
Ushio1000215DPY, JS120V-5000WC
Koto ElectricDPY 120V
Koto ElectricCP29 240V (DPY)
Koto ElectricCP29 220V-230V (DPY)
Osram Sylvania54554DPY 120V
Eiko01570DPY (WIKO)
Microlites120-5000-36
Canimpex120-5000-36

Equipment Used In

BrandModelType
ARRI Studio Fresnel 5000W Stage / Studio
Altman Lighting 5000L 10-Fresnel
Altman Lighting 5000S 12-Fresnel
Polofil / Pololux 12.5-59 5KW
Strand Lighting Studio 5-KW Stage / Studio
Strand Lighting Bambino 14-55 5KW Stage / Studio
