DRA ANSI Code

DRA ANSI is a T5 lamp with a G6.35 base operating at 300 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DRA lamps.

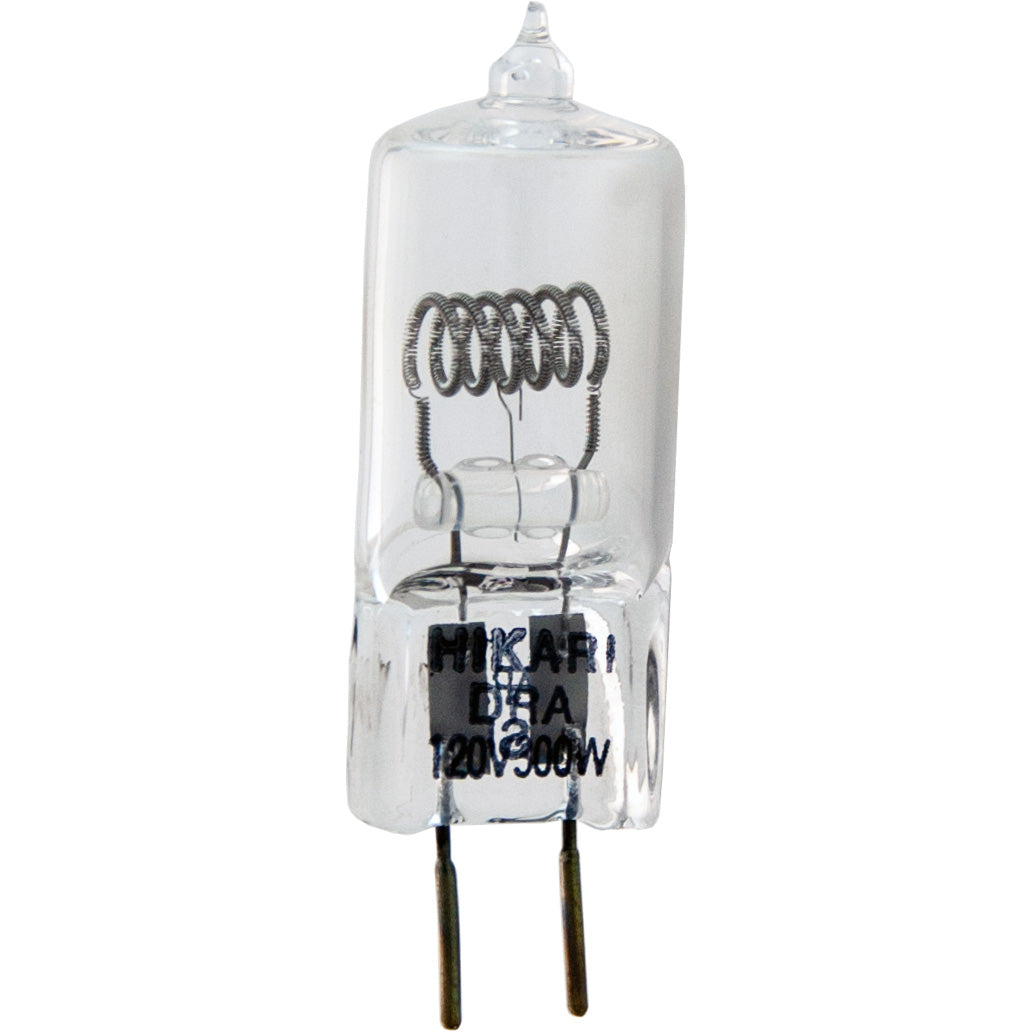

DRA Photograph

DRA

Electrical Specifications

Amps2.4
Volts120
Watts300

Photometrics

Candlepower550
Color Temperature3300
Light Center Length (LCL)1 17/81
Lumens6900

Physical Characteristics

BaseG6.35
Bulb ShapeT5
FilamentCC-6
FinishClear
Max Overall Length (MOL)2 17/50

Operating Characteristics

Burn PositionBDTH
Life Hours300

General Information
Lamp CodeDRA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G6.35 Base

G6.35

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762090DRA
EYE (Iwasaki)JCD300WL/G1DRA
Optex ArgusJCD/DRA
Philips239400DRA
Phoenix03-101
Sunlite70030DRA
Sun PakDRA 120V 300W
Unomat300W
Ushio1000216DRA, JCD120V-300W
Microlites120-300-24
Canimpex120-300-24

Equipment Used In

BrandModelType
Apollo SF-300
Elmo 35-FTP
Elmo 35-FTA (P)
Elmo 35-FTA
Martin StarFlash
Martin Wheeler
Martin Spinner (120V)
Ness Moonflower Standard
Ness Shooting Star LB-5
Ness Paloma PA-1
Ness Porkly SL-44
Ness Flowerscan MFS-300-SC
Ness 300-FM
Optex Argus VA-0100
Phoenix 03-100 (AC)
Program Sistems (Programmi and Sistemmi Luce) Kingstar Stage / Studio
Program Sistems (Programmi and Sistemmi Luce) Multibeam Stage / Studio
Sun Pak AC Videolight
Sun Pak Triac 3001
Unomat LX-801 AS
Unomat LX-800 AC

DRA may also be listed as:
01580 EIKO01580 UPC01580 WIKO01590 EIKO
01590 UPC01590 WIKO031293015808 EIKO031293015907 EIKO
048777113790 UPC048777159019 UPC1000216 USHIO1000900 USHIO
11788 BICLITE12053 STANDARDPRO120V-300WL14438
146647 PHILIPS1823918239-DRA23940-0 PHILIPS
25702-2 PHILIPS26502 NANTONG-DONAR64154 OSRAM64514/CAPSULE/G6.35/LL
64514/CAPSULE/GX6.35/LL64514/CAPSULE/LL/G6.3564514/CAPSULE/LL/GX6.3564514/LL MICROLAMP
64514/LL OSRAM64514LL/G6.35 MICROLAMP64514LL/GX6.35 MICROLAMP69549120532
69549120532UPC STANDARDPRO7010 BULB-DIRECT7010 MICROLAMP7010 PHILIPS
7010-120V-300W7010-120V-300W-20PK PHILIPS7010/120V PHILIPS7010/120V/300W BICLITE
7010/120V/300W/G6.35 PHILIPS7010/120V/300W/G6.35/150H BICLITE7010/120V/300W/GX6.35 PHILIPS7010/120V/300W/GX6.35/150H BICLITE
7010/300W/120V/G6.35 MICROLAMP7010/300W/120V/GX6.35 MICROLAMP762090 BULBRITE83743 IWASAKI
9245-306-36300 PHILIPSBW-DRADRA ANSIDRA ASA
DRA BULB-DIRECTDRA BULBRITEDRA EIKODRA HIDSI
DRA HIKARIDRA INTERLIGHTDRA IWASAKIDRA KONDO
DRA LAMPTECHDRA MICROLAMPDRA NANTONG-DONARDRA PHILIPS
DRA STANDARDPRODRA UNOMATDRA USHIODRA WESTINGHOUSE
DRA WIKODRA-1 ANSIDRA-1 ASADRA-1-120 VOLT-300WATT ANSI
DRA-1-120 VOLT-300WATT ASADRA-120 ANSIDRA-120 ASADRA-120 VOLT ANSI
DRA-120 VOLT ASADRA-120V ANSIDRA-120V ASADRA-120V-300W
DRA-120V-300W ANSIDRA-120V-300W ASADRA-120V-300W-G6.35 USHIODRA-120V-300W-G6.35-T4-CC6-CLEAR-6900L-3300K-300H-BDTH-2-17/50MOL-1-17/81LCL-Q-PROJECTOR/STUDIO-CERAMIC-BASE
DRA-120V/120V/300W/GX6.35 ANSIDRA-120V/300W-G6.35DRA-120V/300W-GX6.35DRA-125 ANSI
DRA-125 ASADRA-125V ANSIDRA-125V ASADRA-125V-300W ANSI
DRA-125V-300W ASADRA-125V/125V/300W/GX6.35 ANSIDRA-125VOLT ANSIDRA-125VOLT ASA
DRA-18239 EIKODRA-300W-120V-G6.35 USHIODRA-5 ANSIDRA-5 ASA
DRA-5 BULB-DIRECTDRA-5 EIKODRA-5 INTERLIGHTDRA-5 WIKO
DRA-99DRA-DLDRA-ESDRA-L
DRA-LLDRA-LONG-LIFEDRA-USHIO-1000216-T-4-CL-QUARTZ-300W.-G6.35DRA-X
DRA-XPDRA-XTRADRA/120V/300W/GX6.35 ANSIDRA/125V/300W/GX6.35 ANSI
DRA/G6.35 USHIODRA/GX6.35 USHIODRA/T5-120V-300W-G6.35-BIPIN LAMPTECHDRA1-120-300 ANSI
DRA1-120-300 ASADRA1-120-300W ANSIDRA1-120-300W ASADRA1-120V300 ANSI
DRA1-120V300 ASADRA1-120V300W ANSIDRA1-120V300W ASAEQ-DRA ELECTROQUIP
G6.35-120V-300W-PROJECTION ELECTROQUIPH/120V/300W/G6.35-CERAMIC/CAPSULE/150HH/120V/300W/G6.35/CAPSULE/150HH/120V/300W/G6.35/CAPSULE/300H
H/120V/300W/G6.35/CAPSULE/3100KH/120V/300W/G6.35/G7/150HH/120V/300W/G6.35/T5H/120V/300W/G6.35C/CAPSULE/150H
H/120V/300W/GX6.35/CAPSULE/150HH/120V/300W/GX6.35/CAPSULE/300HH/120V/300W/GX6.35/CAPSULE/3100KH/120V/300W/GX6.35/T5
H/120V/300W/GX6.35/T5/CC6/300HH/120V/300W/GX6.35/T5/CC6/300H/DRA-120VH/125V/300W/GX6.35/T5/CC6/300HH/125V/300W/GX6.35/T5/CC6/300H/DRA-125V
JCD-0304 USHIOJCD-0312 USHIOJCD-120 VOLT-300WATT-L IWASAKIJCD-120 VOLT-300WATT-L-G-1 IWASAKI
JCD-120 VOLT-300WATT-TJCD-120V-300-L IWASAKIJCD-120V-300-L-G-1 IWASAKIJCD-120V-300-T
JCD-120V-300W-L IWASAKIJCD-120V-300W-L-G-1 IWASAKIJCD-120V-300W-TJCD-300-L-G-1
JCD-300W-L-G-1JCD-300WATT-L-G-1JCD/120V/300W/G6.35/CLJCD/120V/300W/GX6.35/CL
JCD120-300L IWASAKIJCD120-300LG1 IWASAKIJCD120-300TJCD120-300WL IWASAKI
JCD120-300WLG1 IWASAKIJCD120-300WTJCD120V-300W-300H USHIOJCD120V-300W/DRA USHIO
JCD120V-300W/GX6.35/300H USHIOJCD120V-300WL USHIOJCD120V-300WLG1JCD120V300W-CC6-300HR USHIO
JCD120V300W-CC6-300HR/120V/300W/G6.35 USHIOJCD120V300W-CC6-300HR/120V/300W/G6.35/DRA USHIOJCD120V300W-CC6-300HR/DRA USHIOJCD120V300W-G6.35-300H USHIO
JCD120V300W-G6.35/DRA USHIOJCD120V300W/300H/300H USHIOJCD120V300WL-CC6-150HR USHIOJCD120V300WL-CC6-150HR/120V/300W/G6.35 USHIO
JCD120V300WL-G6.35 USHIOJCD120V300WL/G6.35-CERAMIC/150H USHIOJCD300WL/G1 IWASAKIJCD300WLG1-DRA IWASAKI
PROJECTION/120V/300W/G6.35/150H/8000LMMM ELECTROQUIPSPQ300T5GX6.35CC6-120VSPQ300T5GX6.35CC6-125VSPQ300T5GX6.35CC6120V-DRA-120V
SPQ300T5GX6.35CC6125V-DRA-125VSPQ300T5GX6.35CL-120VSPQ300T5GX6.35CL-125VSPQ300T5GX6.35CL120V-DRA-120V
SPQ300T5GX6.35CL125V-DRA-125VT-5/300W/120V/GLASS/G6.3/DRA STANDARDPRO
