DRW ANSI Code

DRW ANSI is a T20 lamp with a E39 base operating at 1000 watts and 120 volts. It has a color temperature of 3325 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DRW lamps.

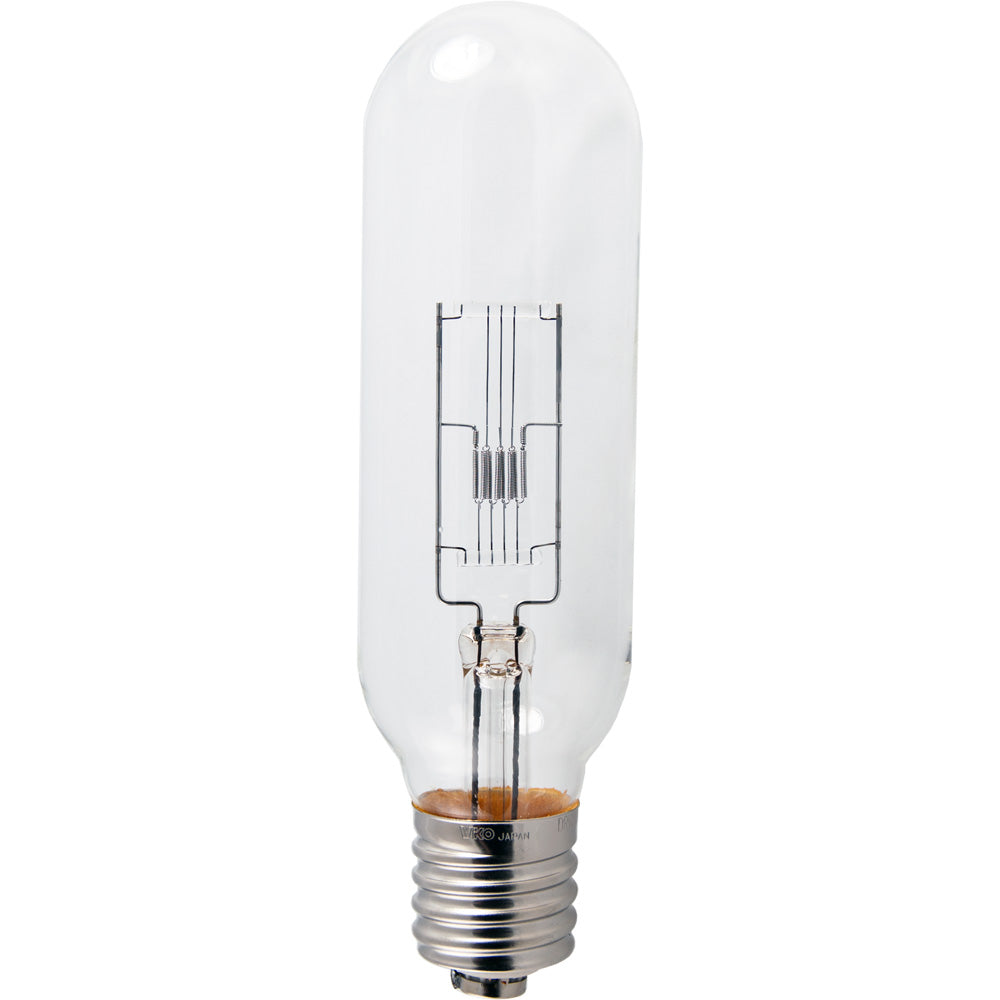

DRW Photograph

DRW

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2300
Color Temperature3325
Light Center Length (LCL)4 3/4
Lumens28500

Physical Characteristics

BaseE39
Bulb ShapeT20
FilamentC-13D
FinishClear
Max Overall Length (MOL)9 1/16

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeDRW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

E39 Base

E39

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-1000-49W
Canimpex120-1000-49W

Equipment Used In

BrandModelType
Genarco Incorporated Master 6800
General Motor Sign Co. General Motorsign
SOS Photo Cine Optics Standard Viewer/Editing
Victor Animatograph Hi-Power Viewer/Editing
