DSB ANSI Code
DSB ANSI is a T20 lamp with a P40s base operating at 1000 watts and 120 volts. It has a color temperature of 3325 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DSB lamps.
DSB Photograph |
 |
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 120 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 3100 |
|---|---|
| Color Temperature | 3325 |
| Light Center Length (LCL) | 3 7/16 |
| Lumens | 28500 |
Physical Characteristics | |
| Base | P40s |
|---|---|
| Bulb Shape | T20 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 9 1/2 |
Operating Characteristics | |
| Burn Position | BD ± 30° |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | DSB |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T20 Shape | |
 | |
| Diameter Designation | 20/8" |
|---|---|
| Glass Diameter | 2 1/2" (2.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

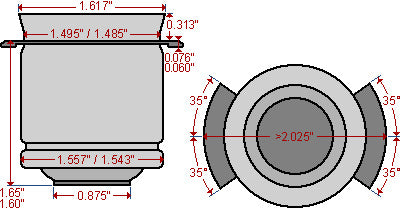

P40s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | 01650 | DSB | |
| Microlites | 120-1000-66B | ||
| Canimpex | 120-1000-66B | ||
Equipment Used In | ||
| Brand | Model | Type |
| AO Reichert | LK | |
| DeVry | XD | 35mm Sound Movie Projector |
| DeVry | Special | 35mm Sound Movie Projector |
| DeVry | Semi-Portable | 35mm Sound Movie Projector |
| DeVry | D | 35mm Sound Movie Projector |
| Good-All Electric Company | Semi | 35mm Sound Movie Projector |
| Holmes Projector Company | Educator | 35mm Sound Movie Projector |
| Holmes Projector Company | 7-A | 35mm Sound Movie Projector |
| Kliegl Brothers | Background 2048 | Stage / Studio |
| Kolograph Corp. | Kolograph | |
| RCA | Photophone PG-29 | Projector |
| RCA | Photophone M1-1156 | Projector |
| RCA | Photophone 1152 | Projector |
| RCA | Photophone 1161 | Projector |
| RCA | Photophone 1156 | Projector |
| RCA | Photophone 1153 | Projector |
| RCA | Photophone M1-1161 | Projector |
| RCA | Photophone M1-1152 | Projector |
| RCA | Photophone 1155 | Projector |
| RCA | Photophone PP-6 | Projector |
| RCA | Photophone M1-1158 | Projector |
| RCA | Photophone 1158 | Projector |
| RCA | Photophone M1-1153 | Projector |
| RCA | Photophone PP-17 | Projector |
| RCA | Photophone M1-1155 | Projector |
| RCA | Photophone M1-1157 | Projector |
| RCA | Photophone M1-1159 | Projector |
| RCA | Photophone M1-1160 | Projector |
| RCA | Photophone 1157 | Projector |
| RCA | Photophone 1159 | Projector |
| RCA | Photophone 1160 | Projector |
| RCA | Photophone 1154 | Projector |
| RCA | Photophone M1-1151 | Projector |
| RCA | Photophone M1-1154 | Projector |
| RCA | Photophone PG-5 | Projector |
| RCA | Photophone 1151 | Projector |
| SOS Photo Cine Optics | Duplex Ace AT | 35mm Movie Projector |
| SOS Photo Cine Optics | Duplex Ace BT (120 Volt) | 35mm Movie Projector |
| SOS Photo Cine Optics | Duplex AT (120 Volt) | 35mm Movie Projector |
| SOS Photo Cine Optics | Duplex Ace BT | 35mm Movie Projector |
| SOS Photo Cine Optics | Ace AT (120 Volt) | 35mm Movie Projector |
| Weber Machine Corp. | Syncrofilm H | 35mm Sound Movie Projector |
| Weber Machine Corp. | Syncrofilm E | 35mm Sound Movie Projector |
