DVN ANSI Code

DVN ANSI is a S6 lamp with a E12 base operating at 25 watts and 115 volts. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DVN lamps.

Electrical Specifications

Amps0.217
Volts115
Watts25

Photometrics

Light Center Length (LCL)1 5/16

Physical Characteristics

BaseE12
Bulb ShapeS6
FilamentC-7A
FinishClear
Max Overall Length (MOL)1 7/8

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeDVN
Code TypeANSI

C-7A Filament

C-7A
Coil TypeC - Single Coil

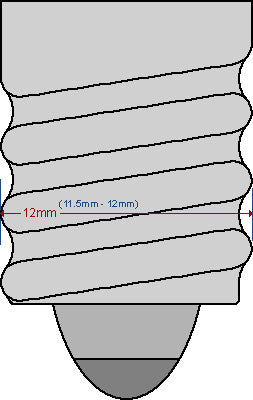

E12 Base

E12

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDVN

DVN may also be listed as:
AGI-AS619AS619 AGIAS619/115V/25W AGIDVN-115V-25W
DVN-115V-25W ANSIDVN-115V-25W-E12-S6-C7A-CLEAR-50H-1-7/8MOL-1-5/16LCL-I-HIGH-INTENSITY-INDICATOR-SPECIALLY-DESIGNED-FOR-ONE-COMPANYDVN-115V-25W-E12S-S-6-C-7A-CLEAR-50H-1-7/8MOL-1-5/16LCL-I-HIGH-INTENSITY-INDICATOR-SPECIALLY-DESIGNED-FOR-ONE-COMPANYDVN-115V/115V/25W/E12 ANSI
DVN/115V/25W/E12 ANSII/115V/25W/E12/S6/50HI/115V/25W/E12/S6/C7A/50HI/115V/25W/E12/S6/C7A/50H/DVN
I/115V/25W/E12/S6/CL/50HI/115V/25W/E12/S6/CL/50H/DVNSP25S6CC7A-115VSP25S6CC7A115V-DVN
SP25S6E12C7A-115VSP25S6E12C7A115V-DVN
