DWB ANSI Code

DWB ANSI is a T20 lamp with a P28s base operating at 500 watts and 230 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWB lamps.

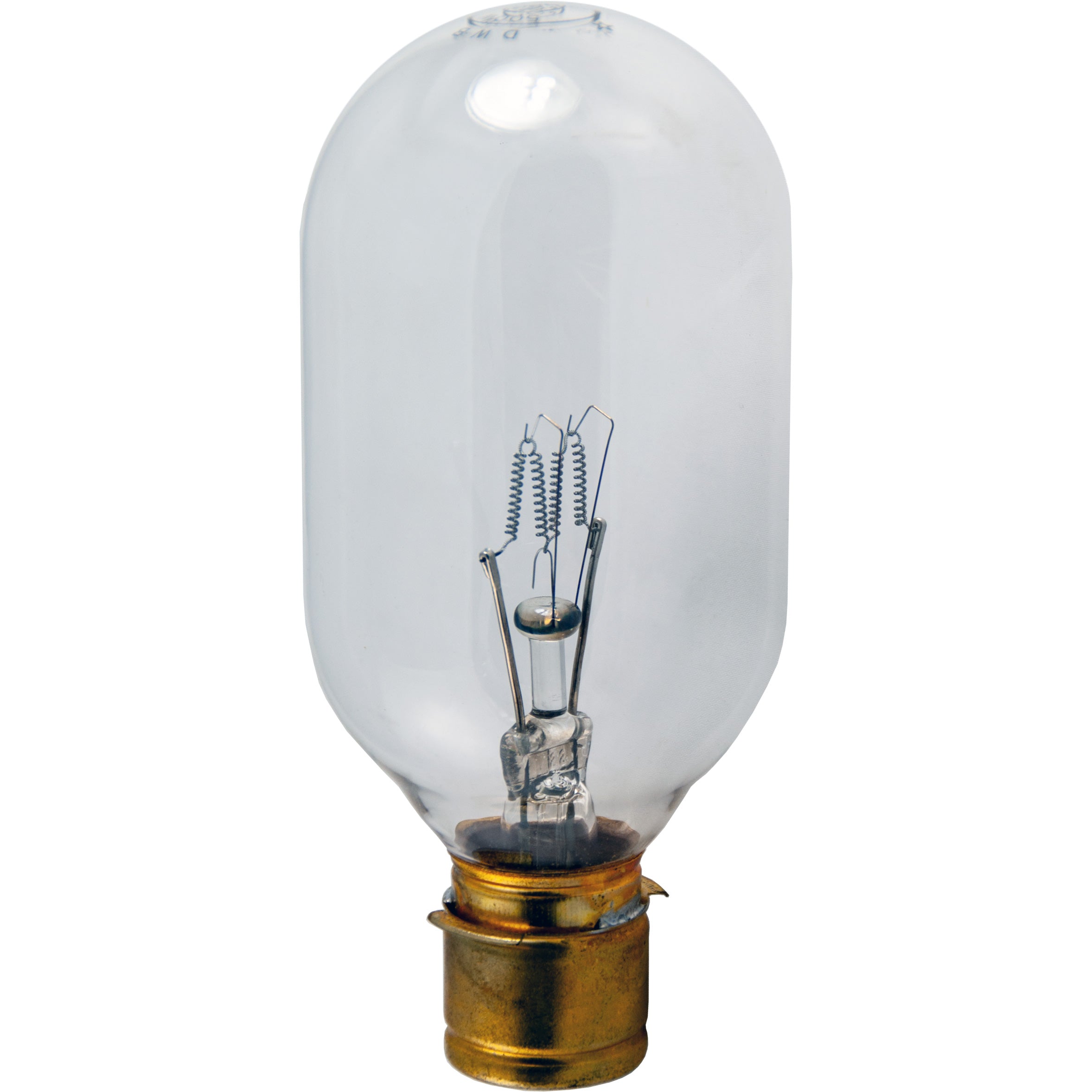

DWB Photograph

DWB

Electrical Specifications

Amps2.17
Volts230
Watts500

Photometrics

Candlepower880
Color Temperature3000
Light Center Length (LCL)57
Lumens11100

Physical Characteristics

BaseP28s
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)142

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeDWB
Code TypeANSI

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDWB

DWB may also be listed as:
500-T20-P-C-230 GENERAL-ELECTRIC500-T20-P-C-230V GENERAL-ELECTRIC500-T20-P-CL-230 GENERAL-ELECTRIC500-T20-P-CL-230V GENERAL-ELECTRIC
500-T20-P28S-C-230 GENERAL-ELECTRIC500-T20-P28S-C-230V GENERAL-ELECTRIC500-T20-P28S-CL-230 GENERAL-ELECTRIC500-T20-P28S-CL-230V GENERAL-ELECTRIC
500-T20-PF-C-230 GENERAL-ELECTRIC500-T20-PF-C-230V GENERAL-ELECTRIC500-T20-PF-CL-230 GENERAL-ELECTRIC500-T20-PF-CL-230V GENERAL-ELECTRIC
500-T20-PREFOCUS-C-230 GENERAL-ELECTRIC500-T20-PREFOCUS-C-230V GENERAL-ELECTRIC500-T20-PREFOCUS-CL-230 GENERAL-ELECTRIC500-T20-PREFOCUS-CL-230V GENERAL-ELECTRIC
500WATT-T20-P28S-CLEAR-230VOLT GENERAL-ELECTRICDWB ANSIDWB ASADWB GENERAL-ELECTRIC
DWB INTERLIGHTDWB-230 ANSIDWB-230 ASADWB-230V ANSI
DWB-230V ASADWB-230V-500W ANSIDWB-230V-500W ASADWB-230V/230V/500W/P28S ANSI
DWB-230VOLT ANSIDWB-230VOLT ASADWB/230V GENERAL-ELECTRICDWB/230V/500W/P28S ANSI
I/230V/500W/P28S/T20/CC13/2000HI/230V/500W/P28S/T20/CC13/2000H/DWBI/230V/500W/P28S/T20/CL/2000HI/230V/500W/P28S/T20/CL/2000H/DWB
SP500T20P28SCC13-230VSP500T20P28SCC13230V-DWBSP500T20P28SCL-230VSP500T20P28SCL230V-DWB
SP500T20PCC13-230VSP500T20PCC13230V-DWBSP500T20PCL-230VSP500T20PCL230V-DWB
