DWC ANSI Code
DWC ANSI is a R40 lamp with a E26 base operating at 150 watts and 120 volts. It has a color temperature of 2800 Kelvin. It has a Pearl+Silver finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWC lamps.

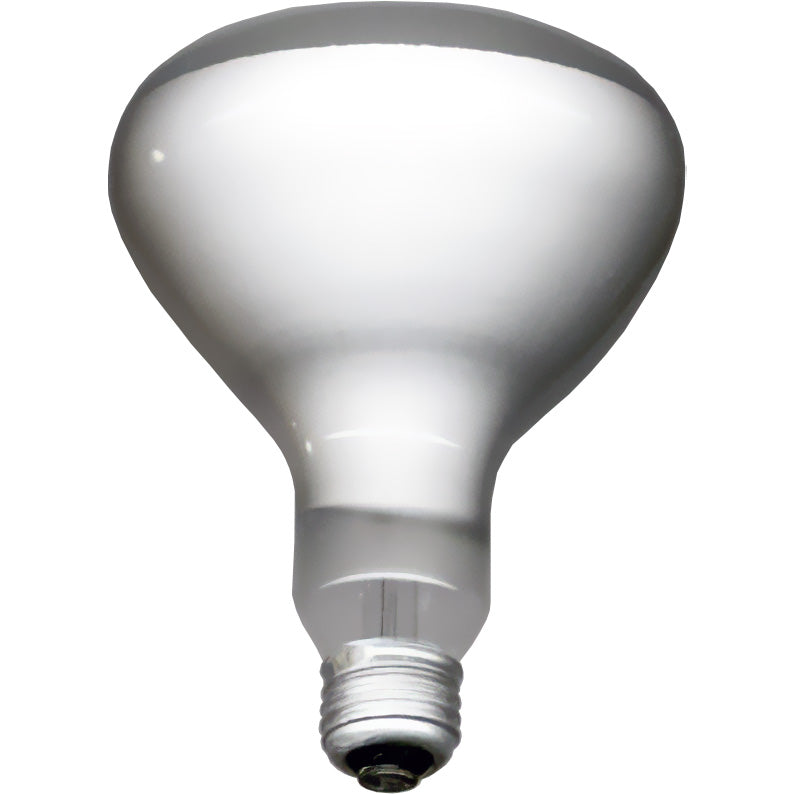

DWC Photograph |
 |
Electrical Specifications | |
| Amps | 1.25 |
|---|---|
| Volts | 120 |
| Watts | 150 |
Photometrics | |
| Beam Spread | Medium Flood |
|---|---|
| Candlepower | 1260cp |
| Color Temperature | 2800 |
| Lumens | 1250 |
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | R40 |
| Filament | CC-6 |
| Finish | Pearl+Silver |
| Max Overall Length (MOL) | 6 1/2 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | DWC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
R40 Shape | |
 | |
| Diameter Designation | 40/8" |
|---|---|
| Glass Diameter | 5" (5.0") |
| Shape Code | R |
| Shape Classification | Blown Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | DWC | 150W, 120V | |
| Microlites | 120-150-48CR | ||
| Canimpex | 120-150-48CR | ||
Equipment Used In | ||
| Brand | Model | Type |
| Coli | R-40-BORDERLIGHT | |
| Eastman Kodak | MRD-2 | |
