DWJ ANSI Code

DWJ ANSI is a PAR36 lamp with a Screw Terminals base operating at 100 watts and 6.3 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 3 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWJ lamps.

Electrical Specifications

Amps15.9
Volts6.3
Watts100

Photometrics

Beam SpreadMedium Flood
Candlepower6,500cp
Color Temperature3400
Lumens6500

Physical Characteristics

BaseScrew Terminals
Bulb ShapePAR36
FilamentC-6
FinishClear
Max Overall Length (MOL)2 9/16

Operating Characteristics

Burn PositionBDTH
Life Hours3

General Information
Lamp CodeDWJ
Code TypeANSI

PAR36 Shape

PAR36
Diameter Designation36/8"
Glass Diameter 4 1/2" (4.5")
Shape CodePAR
Shape ClassificationParabolic Reflector

C-6 Filament

C-6
Coil TypeC - Single Coil

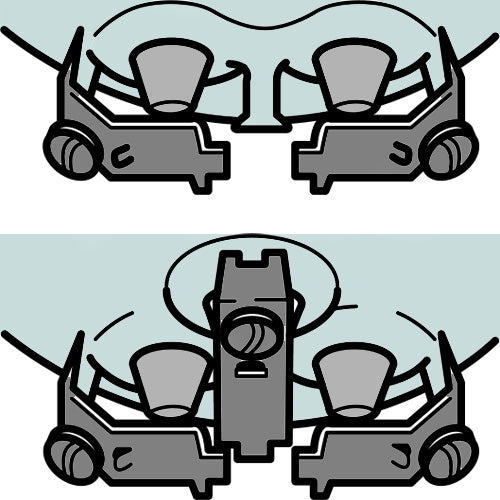

Screw Terminals Base

Screw Terminals

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDWJ

DWJ may also be listed as:
DWJ ANSIDWJ ASADWJ-6.3 ANSIDWJ-6.3 ASA
DWJ-6.3V ANSIDWJ-6.3V ASADWJ-6.3V-100WDWJ-6.3V-100W ANSI
DWJ-6.3V-100W ASADWJ-6.3V-100W-SCREWS-PAR36-C6-CLEAR-6500CP-3400K-3H-ANY-2-9/16MOL-I-REFLECTOR-PHOTOFLOOD-MEDIUM-BEAM-35X25DEGDWJ-6.3V/6.3V/100W/ST/PAR36 ANSIDWJ-6.3VOLT ANSI
DWJ-6.3VOLT ASADWJ-DWH ANSIDWJ-DWH ASADWJ/6.3V/100W/ST ANSI
DWJ/6.3V/100W/ST/PAR36 ANSII/6.3V/100W/ST/PAR36/C6/3HI/6.3V/100W/ST/PAR36/C6/3H/DWJI/6.3V/100W/ST/PAR36/CL/3H
I/6.3V/100W/ST/PAR36/CL/3H/DWJSP100PAR36STC6-6.3VSP100PAR36STC66.3V-DWJSP100PAR36STCL-6.3V
SP100PAR36STCL6.3V-DWJ
