DWK ANSI Code
DWK ANSI is a T20 lamp with a P28s base operating at 1000 watts and 240 volts. It has a color temperature of 3100 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWK lamps.

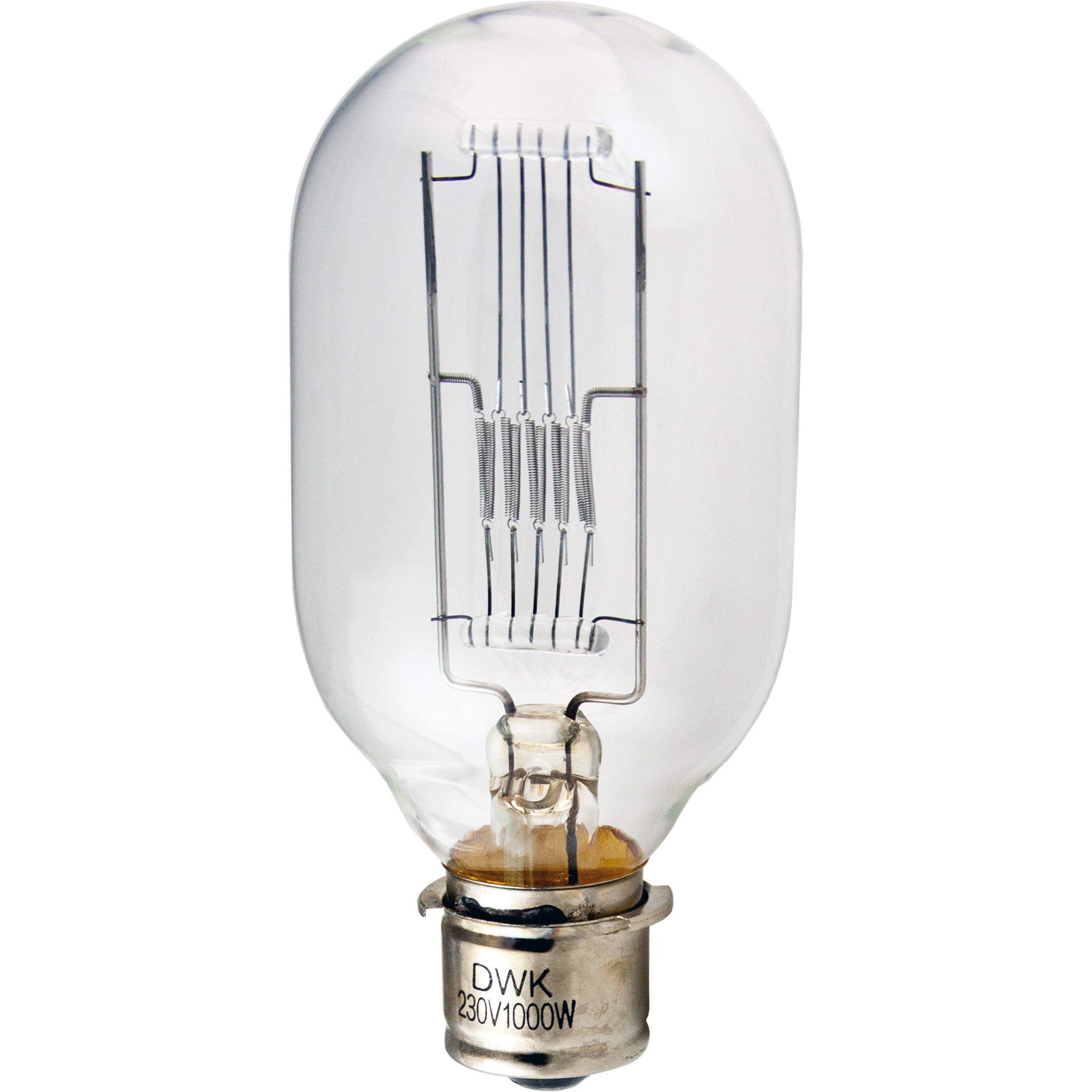

DWK Photograph |
 |
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 240 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 2000 |
|---|---|
| Color Temperature | 3100 |
| Light Center Length (LCL) | 2 3/16 |
| Lumens | 23500 |
Physical Characteristics | |
| Base | P28s |
|---|---|
| Bulb Shape | T20 |
| Filament | CC-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 5 3/4 |
Operating Characteristics | |
| Burn Position | BD ± 30° |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | DWK |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T20 Shape | |
 | |
| Diameter Designation | 20/8" |
|---|---|
| Glass Diameter | 2 1/2" (2.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
P28s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 230-1000-63S | ||
| Microlites | 240-1000-63S | ||
| Canimpex | 230-1000-63S | ||
| Canimpex | 240-1000-63S | ||
Equipment Used In | ||
| Brand | Model | Type |
| Beseler Photo Marketing (Charles Beseler) | Vu-Lyte Opor-Slide | Projector Opaque / Transparency |
| Beseler Photo Marketing (Charles Beseler) | Vu-Lyte II | Projector Opaque / Transparency |
| Buhl | Mark IV | |
| Buhl | Mark IV Pointer | |
| Buhl | Koolite 6000 | |
| Buhl | Koolite 7000 | |
| Kalart Victor | 3550 | Projector Overhead |
| Kalart Victor | 3525 | Projector Opaque / Transparency |
| Kalart Victor | 3526 | Projector Opaque / Transparency |
