DWL ANSI Code
DWL ANSI is a PAR36 lamp with a Screw Terminals base operating at 100 watts and 6.3 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 3 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWL lamps.
Electrical Specifications | |
| Amps | 15.9 |
|---|---|
| Volts | 6.3 |
| Watts | 100 |
Photometrics | |
| Candlepower | 6,500cp |
|---|---|
| Color Temperature | 3400 |
Physical Characteristics | |
| Base | Screw Terminals |
|---|---|
| Bulb Shape | PAR36 |
| Filament | C-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 9/16 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 3 |
General Information | |
| Lamp Code | DWL |
|---|---|
| Code Type | ANSI |
PAR36 Shape | |
 | |
| Diameter Designation | 36/8" |
|---|---|
| Glass Diameter | 4 1/2" (4.5") |
| Shape Code | PAR |
| Shape Classification | Parabolic Reflector |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

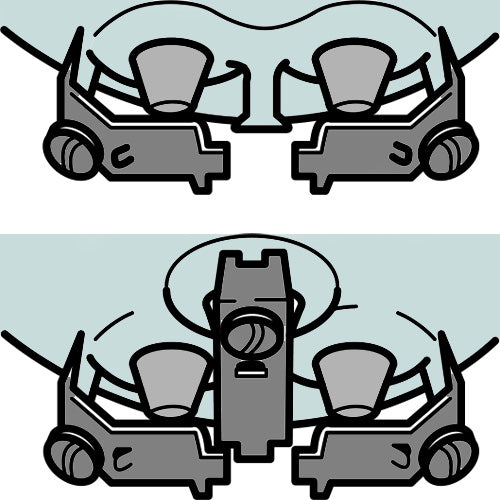

Screw Terminals Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | DWL | ||
DWL may also be listed as: | |||
| DWL ANSI | DWL ASA | DWL INTERLIGHT | DWL-6.3V-100W |
| DWL-6.3V-100W ANSI | DWL-6.3V-100W-SCREWS-PAR36-C6-CLEAR-6500CP-3400K-3H-ANY-2-9/16MOL-I-REFLECTOR-PHOTOFLOOD-MEDIUM-BEAM-35X25DEG | DWL-6.3V/6.3V/100W/ST/PAR36 ANSI | DWL/6.3V/100W/ST/PAR36 ANSI |
| I/6.3V/100W/ST/PAR36/CL | I/6.3V/100W/ST/PAR36/CL/DWL | I/6.3V/100W/ST/PAR36/DWL | SP100PAR36ST-6.3V |
| SP100PAR36ST6.3V-DWL | |||
