DWW ANSI Code

DWW ANSI is a T5 lamp with a R7s base operating at 460 watts and 120 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DWW lamps.

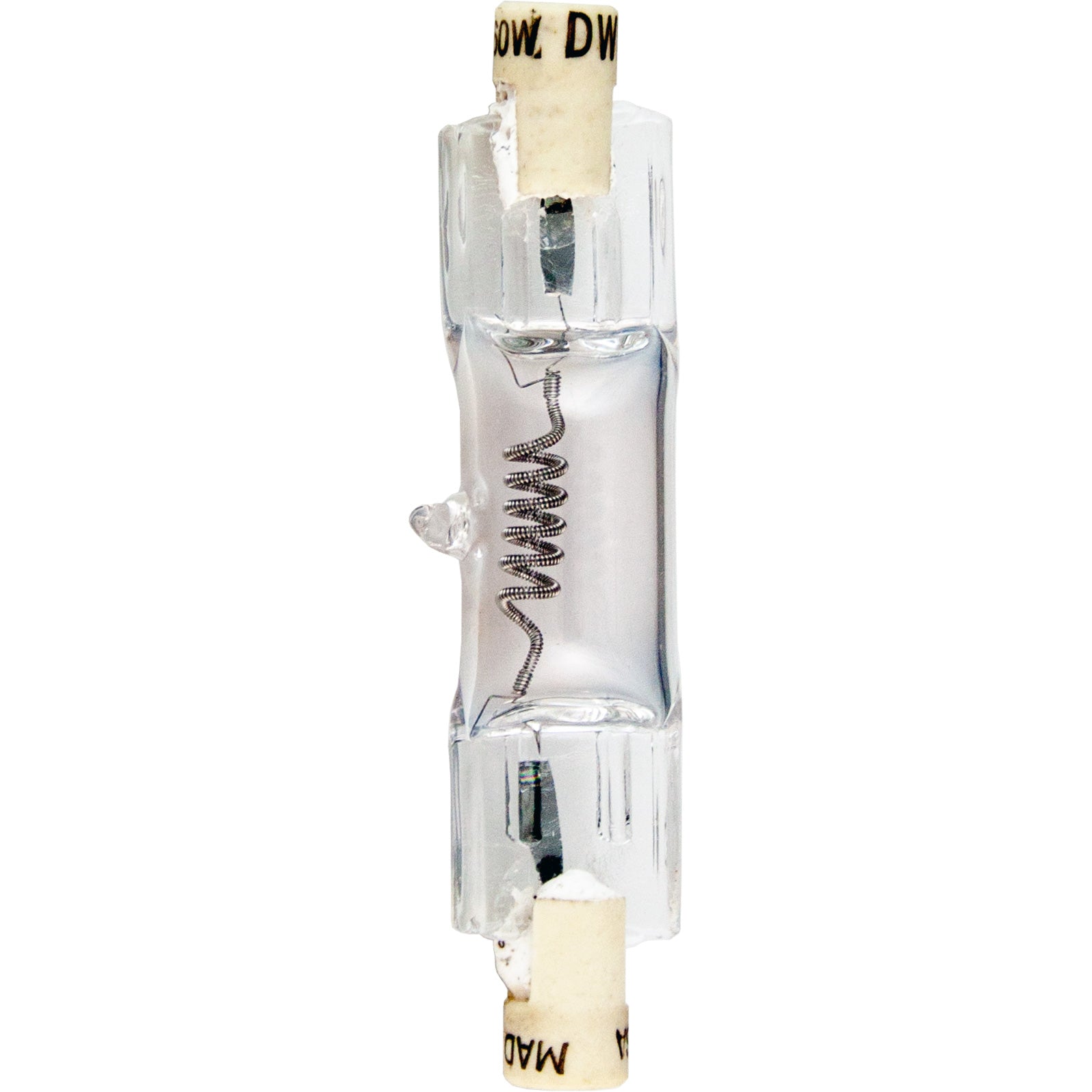

DWW Photograph

DWW

Electrical Specifications

Amps3.83
Volts120
Watts460

Photometrics

Candlepower1200
Color Temperature3400
Light Center Length (LCL)63.6
Lumens15000

Physical Characteristics

BaseR7s
Bulb ShapeT5
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 5/8

Operating Characteristics

Burn PositionAny
Life Hours10

General Information
Lamp CodeDWW
Code TypeANSI

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-420-75W
Canimpex120-420-75W

Equipment Used In

BrandModelType
AO Reichert Apollo 6 3654
AO Reichert Apollo 3669
AO Reichert Apollo 3641
AO Reichert Apollo 3640
AO Reichert Apollo 3653
AO Reichert Apollo 3672
AO Reichert Apollo 3654
AO Reichert Apollo 6 3669
AO Reichert Apollo 3650
AO Reichert Apollo 6 3650
AO Reichert Apollo 6 3653
AO Reichert Apollo 3651
AO Reichert Apollo 6 3672
AO Reichert Apollo 6 3651

DWW may also be listed as:
120-460-75W322G01 GENERAL-ELECTRIC460-T4-Q SYLVANIA460-T4-QUARTZ SYLVANIA
54420 SYLVANIADWW ANSIDWW ASADWW GENERAL-ELECTRIC
DWW SYLVANIADWW-120 ANSIDWW-120 ASADWW-120 VOLT ANSI
DWW-120 VOLT ASADWW-120V ANSIDWW-120V ASADWW-120V GENERAL-ELECTRIC
DWW-120V-460WDWW-120V-460W ANSIDWW-120V-460W ASADWW-120V-460W-R7S-T4-CC8-CLEAR-15000L-3400K-10H-ANY-2-5/8MOL-0.5LCL-Q-OVERHEAD-PRINTER-MAY-SHATTER
DWW-120V/120V/460W/R7S/67MMMOL ANSIDWW/120V/460W/R7S ANSIDWW/120V/460W/R7S/67MMMOL ANSIH/120V/460W/R7S/T5/CC8/10H
H/120V/460W/R7S/T5/CC8/10H/DWWSPQ460T5R7S-120VSPQ460T5R7S120V-DWWSPQ460T5RSC-120V
SPQ460T5RSC120V-DWW
