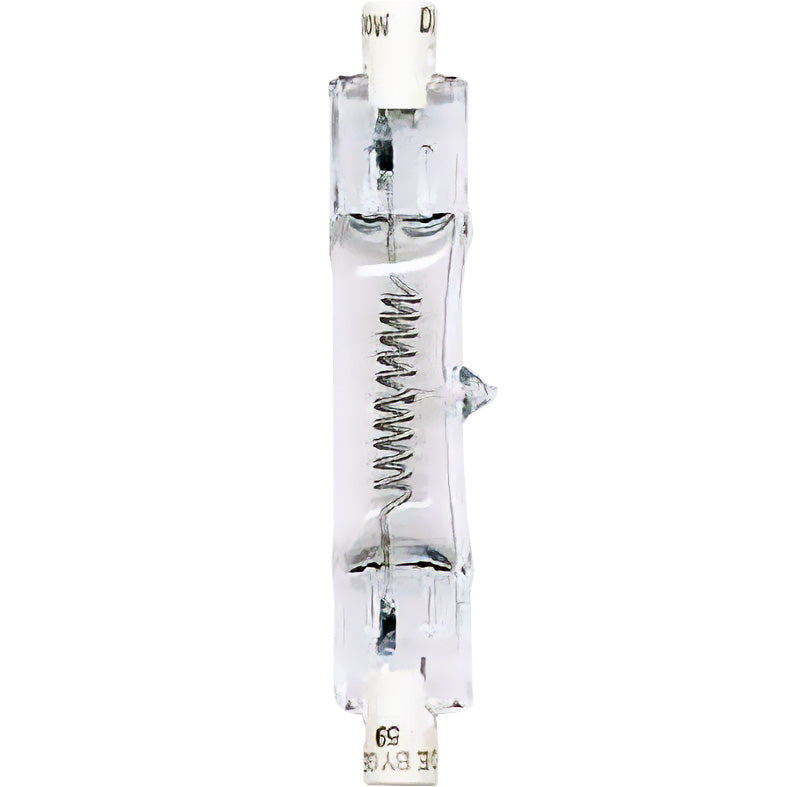

DXV ANSI Code

DXV ANSI is a T4 lamp with a R7s base operating at 800 watts and 240 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DXV lamps.

Electrical Specifications

Amps3.33
Volts240
Watts800

Photometrics

Candlepower1900
Color Temperature3400
Light Center Length (LCL)78.3
Lumens24800

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionAny
Life Hours15

General Information
Lamp CodeDXV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites240-800-75V
Canimpex240-800-75V

DXV may also be listed as:
1000235 USHIO1001613 BLV1001613 USHIO130301 BLV
130518 NARVA130518 ORBITEC130518-H164570-R7S-14X79-230V-DXV-800W ORBITEC130518/230V/800W ORBITEC
130518/230V/800W/R7S ORBITEC64570/230V OSRAM64570/240V OSRAMDXV ANSI
DXV ASADXV INTERLIGHTDXV ORBITECDXV USHIO
DXV-230V/230V/800W/R7S/81MMMOL ANSIDXV-240V ANSIDXV-240V ASADXV-240V-800W
DXV-240V-800W ANSIDXV-240V-800W-R7S-T4-CC8-CLEAR-24800L-3400K-15H-ANY-3-1/8MOL-Q-SUN-GUN-PROFESSIONAL-MAY-SHATTERDXV-240V/240V/800W/R7S/81MMMOL ANSIDXV-240VOLT ANSI
DXV-240VOLT ASADXV-240VOLT USHIODXV-JPD240V800WS-T15MM-80.3MMMOL-74.9MMCC-CC-8-24800L-3400K-15H-CLEAR-1001613 BLVDXV-JPD240V800WS-T15MM-80.3MMMOL-74.9MMCC-CC-8-24800L-3400K-15H-CLEAR-1001613 USHIO
DXV/230VDXV/230V ANSIDXV/230V GENERAL-ELECTRICDXV/230V USHIO
DXV/230V/800W ANSIDXV/230V/800W/R7S ANSIDXV/230V/800W/R7S/81MMMOL ANSIDXV/240V USHIO
DXV/240V/800W/R7S ANSIDXV/240V/800W/R7S/81MMMOL ANSIH-164570 ORBITECH/230V/800W/R7S/79MM
H/230V/800W/R7S/79MM/50HH/230V/800W/R7S/T4/CC8/16HH/230V/800W/R7S/T4/CC8/16H/DXV-230VH/240V/800W/R7S/78.3MMMOL/CL/50H
H/240V/800W/R7S/78.3MMMOL/CL/50H/P1-11-240V-800W-R7S LIFH/240V/800W/R7S/79MMMOL/CL/50H/P1-11-240V-800W-R7S LIFH/240V/800W/R7S/81MMH/240V/800W/R7S/T4/CC8/15H
H/240V/800W/R7S/T4/CC8/15H/DXV-240VH164570-R7S-14X79-230V-DXV-800W ORBITECH164570/230V/800W ORBITECH164570/230V/800W/R7S ORBITEC
J/230V/800W/79MMJ/230V/800W/79MM/130518 NARVAJPD230V-800WJPD230V-800WS USHIO
JPD230V-800WS/DXV USHIOJPD230V-800WS/R7S/15H USHIOJPD230V-800WS/R7S/81MM USHIOJPD240V-800W
JPD240V-800WS USHIOJPD240V-800WS/DXV USHIOJPD240V-800WS/R7S/15H USHIOJPD240V-800WS/R7S/81MM USHIO
P1-11-240V-800W-R7S LIFP1-11/230V ATLASP1-11/230V THORNP1-11/240V ATLAS
P1-11/240V THORNP1-11/240V/800WP1-11/240V/800W ATLASP1-11/240V/800W LIF
P1-11/240V/800W THORNP1/11P1/11-240V-800W-R7S-T15-CC8-CLEAR-24500L-3400K-50H-ANY-78.3MMMOL-Q-MOL-IS-MCLR7S-14X79-230V-800W-DXV/H164570/130518 ORBITEC
R7S-14X79-230V-DXV-800W ORBITECR7S-14X79MM-230V-800W-DXV/H164570/130518 ORBITECR7S-18-240V-800W-DXV-JPD240V-800WS-T15MM-80.3MMMOL-74.9MMCC-CC-8-24800L-3400K-15H-CLEAR-1001613 BLVR7S-18-240V-800W-DXV-JPD240V-800WS-T15MM-80.3MMMOL-74.9MMCC-CC-8-24800L-3400K-15H-CLEAR-1001613 USHIO
SPQ800T4R7S230V-DXV-230VSPQ800T4R7S240V-DXV-240VSPQ800T4RSC230V-DXV-230VSPQ800T4RSC240V-DXV-240V
