DXW ANSI Code

DXW ANSI is a T5 lamp with a R7s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 150 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DXW lamps.

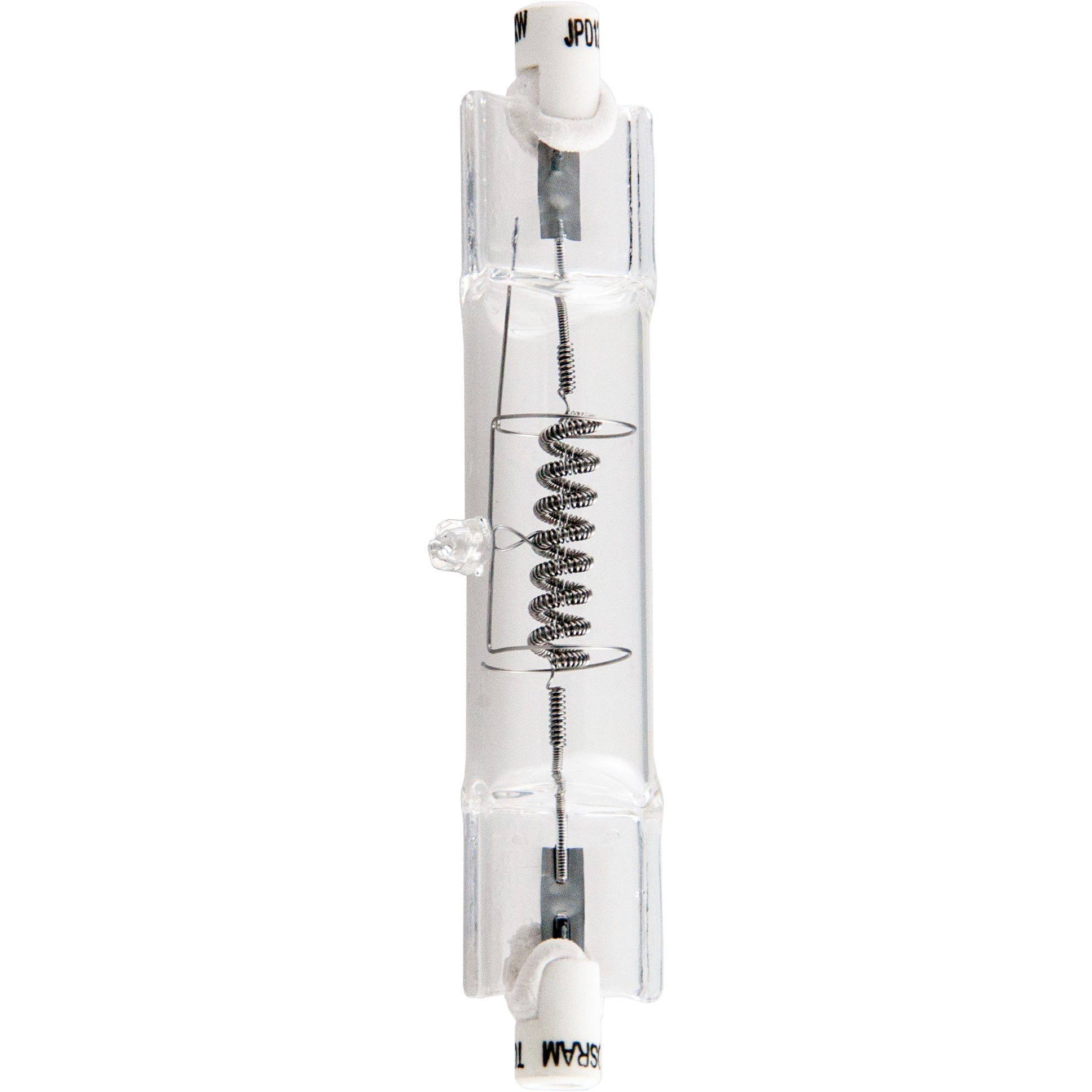

DXW Photograph

DXW

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3200
Light Center Length (LCL)91.8
Lumens28000

Physical Characteristics

BaseR7s
Bulb ShapeT5
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours150

General Information
Lamp CodeDXW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For More Lumens Use DXN

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
3M78-8453-5108-5
Bulbrite762140DXW
Colortran176-011
ColortranB10-32
EYE (Iwasaki)JPD1000WCDXW
General Electric30157DXW-Q1000T5/4CL
Grainger6VM32
Industry CodeQ1000T5/4CL
Osram Sylvania53997DXW STUDIO
Osram Sylvania64577
Philips312199DXW 1000T5Q/1CL 120V 10PK
Smith-Victor620130DXW (clear)
Sunlite70039DXW
Ushio1000236DXW, JPD120V-1000WC5
Norman LampsDXWQ1000T5/4CL
Microlites120-1000-75W
Canimpex120-1000-75W

Equipment Used In

BrandModelType
3M Model 42DA
3M 42-DA
3M Model 543
AO Reichert Apollo 10
AO Reichert Apollo 3671
ARRI Arrilite 1000 Stage / Studio
Altman Lighting Vari Beam 1000 Stage / Studio
American Optical Overhead Apollo 10 3671
Buhl Supreme 600/10
Buhl Supreme 600/14
Buhl Supreme 600/12
Buhl 200 Series
Smith-Victor 720-SG
Strand Lighting Ianebeam Redhead Stage / Studio

DXW may also be listed as:
01760 EIKO01760 UPC01760 WIKO031293017604 EIKO
04613553997 SYLVANIA048777115121 UPC1000-120-DXW-28000-3200-CC-8-95.3-16-150-24-30157-2 GENERAL-ELECTRIC1000236 BLV
1000236 USHIO1000T5/4CL1000T5/4CL-DXW OSRAM1000T5/Q/CL
1000T5Q/1CL PHILIPS1000W-120V-DXW-28000-3200-CC-8-95.3-16-150-24-30157-2 GENERAL-ELECTRIC1000WATT-T5-4-CLEAR1000WATT-T5-4-CLEAR-120 VOLT
1000WATT-T5-QUARTZ-C-C-34-L1000WATT-T5-QUARTZ-C-C-34-L-120 VOLT1000WATT-T5-QUARTZ-CLEAR PHILIPS1000WATT-T5-QUARTZ-CLEAR-120 VOLT PHILIPS
11542 STANDARDPRO11742 BICLITE11812 BICLITE120V BLV
130519 NARVA130519 ORBITEC130519-H40840-R7S-13X95-120V-DXW-1000W ORBITEC130519/120V/1000W ORBITEC
130519/120V/1000W/R7S ORBITEC130523 NARVA130523 ORBITEC130523/230V/1000W NARVA
13704/R PHILIPS13704R/230V PHILIPS13704R/230V/1000W BICLITE13704R/230V/1000W PHILIPS
13704R/230V/1000W/R7S/120H BICLITE176-0112-91691-000 BROWN2-91691-000-DXW BROWN
30157 GENERAL-ELECTRIC30157-SKU GENERAL-ELECTRIC31219-9 PHILIPS312199/DXW-1000T5Q/CL PHILIPS
3129301760 WIKO401109/DXW SMITH-VICTOR4084040842
5107 3M53997 GILWAY53997 NAED53997 OSRAM
53997 SYLVANIA53997/DXW SYLVANIA620130 SMITH-VICTOR64577 OSRAM
64577/120V/1000W OSRAM6954911542269549115422UPC STANDARDPRO720-SG/DXW SMITH-VICTOR
762140 BULBRITE78-8453-5107-7 3M78-8453-5108 3M78-8453-5108-5 3M
78-8454-3478-2 3M89444 IWASAKI9239-361-42900 PHILIPS944206
B-10-32B10-32 COLORTRANBW-DXWCL70340 CARLEY-LAMPS
DXW ANSIDXW ASADXW ATLASDXW BICLITE
DXW BROWNDXW BULB-DIRECTDXW BULBRITEDXW EIKO
DXW GENERAL-ELECTRICDXW GILWAYDXW INTERLIGHTDXW IWASAKI
DXW LAMPTECHDXW LIFDXW MICROLAMPDXW ORBITEC
DXW OSRAMDXW PHILIPSDXW STANDARDPRODXW SYLVANIA
DXW THORNDXW USHIODXW WESTINGHOUSEDXW WIKO
DXW-1000T5Q/1CL-120V-10PK PHILIPSDXW-1000W-120V-R7S GENERAL-ELECTRICDXW-1000W-120V-R7S-18 USHIODXW-1000WATT-T5-QUARTZ-CLEAR ANSI
DXW-1000WATT-T5-QUARTZ-CLEAR ASADXW-120 VOLT ANSIDXW-120 VOLT ASADXW-120V ANSI
DXW-120V ASADXW-120V GENERAL-ELECTRICDXW-120V-1000WDXW-120V-1000W ANSI
DXW-120V-1000W ASADXW-120V-1000W GENERAL-ELECTRICDXW-120V-1000W-R7S ANSIDXW-120V-1000W-R7S GENERAL-ELECTRIC
DXW-120V-1000W-R7S-18 USHIODXW-120V-1000W-R7S-T5-CC8-CLEAR-28000L-3200K-150H-ANY-3-3/4MOL-7/8LCL-Q-SUN-GUNDXW-120V-1000W/GE-DXW-120V-1000W-95.3MM-R7S-BASE-PHOTOGRAPHIC-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTDDXW-120V/04613553997 SYLVANIA
DXW-120V/1000W-R7SDXW-120V/120V/1000W/R7S/91MMMOL ANSIDXW-120V/53997 SYLVANIADXW-JPD120V1000WC5-T18MM-95MMMOL-89.6MMCC-CC-8-28000L-3200K-150H-CLEAR-1000236 BLV
DXW-JPD120V1000WC5-T18MM-95MMMOL-89.6MMCC-CC-8-28000L-3200K-150H-CLEAR-1000236 USHIODXW-Q1000T5/4CL GENERAL-ELECTRICDXW-Q1000T5/4CL/120V GENERAL-ELECTRICDXW-QUARTZ-1000WATT-T5-4-CLEAR ATLAS
DXW-QUARTZ-1000WATT-T5-4-CLEAR LIFDXW-R7S ANSIDXW-STUDIO OSRAMDXW-SYLVANIA LAMPTECH
DXW-SYLVANIA/T5-120V-1000W-R7S LAMPTECHDXW/1000T5Q/CL PHILIPSDXW/120V/1000W OSRAMDXW/120V/1000W/R7S/150H
DXW/120V/1000W/R7S/91MMMOL ANSIDXW/120V/1000W/RX7S/150H BICLITEDXW/230V/1000W ANSIDXW/T5-120V-1000W-R7S LAMPTECH
DXW120VDXW120V1000WGE AC-ENTERTAINMENT-TECHNOLOGIES-LTDEQ-DXW ELECTROQUIPGE-DXW-120V-1000W-95.3MM-R7S-BASE-PHOTOGRAPHIC-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTD
GTL-OS-53997H-40840 ORBITECH-40842 ORBITECH/120V/1000W/R7S/79MM
H/120V/1000W/R7S/91MMMOL/150H/P2-35-120V-1000W LIFH/120V/1000W/R7S/94MMMOL/150HH/120V/1000W/R7S/95.3MMMOL/150HH/120V/1000W/R7S/95MM/150H
H/120V/1000W/R7S/95MMMOL/150HH/120V/1000W/R7S/T15MMH/120V/1000W/R7S/T15MM/C8H/120V/1000W/R7S/T4.75
H/120V/1000W/R7S/T4.75/C8H/120V/1000W/R7S/T5/CC8/150H/DXWH/230V/1000W/R7S/3200K/130523 NARVAH40840-R7S-13X95-120V-DXW-1000W ORBITEC
H40840/120V/1000W ORBITECH40840/120V/1000W/R7S ORBITECJ/120V/1000W/79MMJ/230V/1000W/130523 NARVA
JPD-1000WATT-C-DXWJPD-120 VOLT-1000WATT USHIOJPD-120 VOLT-1000WATT-C5 USHIOJPD/120V/1000W/95MM
JPD/120V/1000W/95MM/150HJPD/120V/1000W/95MM/150HOURJPD/120V/1000W/95MM/CLJPD/120V/1000W/95MM/CL/150H
JPD/120V/1000W/95MM/CL/150HOURJPD/120V/1000W/C5JPD1000WC-DXW IWASAKIJPD1000WC4-DXW IWASAKI
JPD120V-1000WC5 USHIOJPD120V-1000WC5/DXW USHIOJPD120V-1000WC5/R7S/150H USHIOJPD120V-1000WC5/R7S/95MM USHIO
JPD120V1000WC5-CC8-150HR USHIOJPD120V1000WC5-CC8-150HR/120V/1000W/R7S-18 USHIOJPD120V1000WC5-CC8-150HR/120V/1000W/R7S-18/DXW USHIOJPD120V1000WC5-CC8-150HR/DXW USHIO
P2-35-120V-1000W LIFP2-35-220-230 THORNP2-35-220-230V THORNP2-35-220V230 THORN
P2-35-220V230V THORNP2-35/220V-230V/1000W LIFP2-35/220V-230V/1000W THORNP2-35/230V LIF
P2-35/240V/100W THORNP2-35/240V/100W/R7S THORNP2/35 BULB-DIRECTP2/35 LIF
P2/35 ORBITECP2/35 THORNP2/35-220V THORNP2/35-220V/230V LIF
PROJECTION/120V/1000W/R7S/150H ELECTROQUIPQ1000T5/4CL MICROLAMPQUARTZ-1000WATT-T5-4-CLEARQUARTZ-1000WATT-T5-4-CLEAR-120 VOLT
QUARTZ-1000WATT-T5-C-C-32-K-120 VOLTQUARTZ-1000WATT-T5-C-C-34-LQUARTZ-1000WATT-T5-CLEAR PHILIPSQUARTZ-1000WATT-T5-CLEAR-120 VOLT PHILIPS
R7S-120V-1000W-HALOGEN-PROJECTION ELECTROQUIPR7S-13X95-120V-1000W-DXW/H40840/130519 ORBITECR7S-13X95-120V-DXW-1000W ORBITECR7S-13X95MM-120V-1000W-DXW/H40840/130519 ORBITEC
R7S-18-120V-1000W-DXW-JPD120V-1000WC5-T18MM-95MMMOL-89.6MMCC-CC-8-28000L-3200K-150H-CLEAR-1000236 BLVR7S-18-120V-1000W-DXW-JPD120V-1000WC5-T18MM-95MMMOL-89.6MMCC-CC-8-28000L-3200K-150H-CLEAR-1000236 USHIOS-02503 HIKARISPQ1000T5R7S120V-DXW
SPQ1000T5RSC120V-DXWSTS-DXW HIKARIY-90033 OSRAM
