DYF ANSI Code

DYF ANSI is a T3 lamp with a G5.3 base operating at 140 watts and 19.3 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DYF lamps.

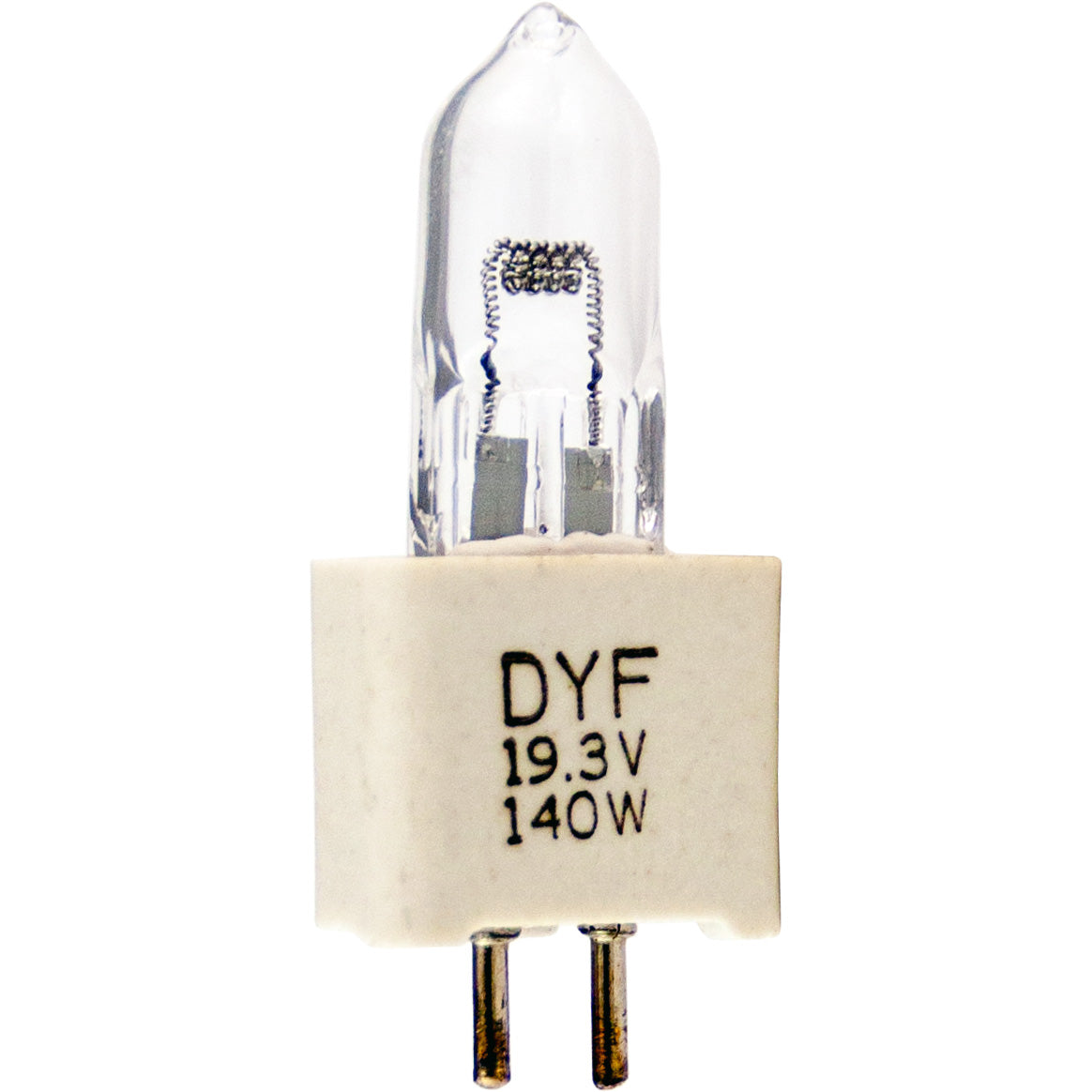

DYF Photograph

DYF

Electrical Specifications

Amps7.25
Volts19.3
Watts140

Photometrics

Candlepower320
Color Temperature3200
Light Center Length (LCL)1 1/16
Lumens4000

Physical Characteristics

BaseG5.3
Bulb ShapeT3
FilamentCC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionBDTH
Life Hours100

General Information
Lamp CodeDYF
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-476-1228

T3 Shape

T3
Diameter Designation3/8"
Glass Diameter 3/8" (0.375")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDYF140W, 19.3V
Microlites19.3-140-23
Canimpex19.3-140-23
Eiko01780DYF (WIKO)

DYF may also be listed as:
01780 WIKO1000244 USHIO3129301780 WIKO35123 GENERAL-ELECTRIC
6.24E+1278-8008-7559 3MDYF ANSIDYF ASA
DYF BULB-DIRECTDYF GENERAL-ELECTRICDYF INTERLIGHTDYF KONDO
DYF USHIODYF WIKODYF-19.3V ANSIDYF-19.3V ASA
DYF-19.3V-140WDYF-19.3V-140W ANSIDYF-19.3V-140W ASADYF-19.3V-140W-G5.3-T3-CC6-CLEAR-4000L-3200K-100H-BDTH-2MOL-1-1/16LCL-Q-PROJECTOR/MICROFILM
DYF-19.3V/19.3V/140W/G5.3 ANSIDYF-19.3VOLT ANSIDYF-19.3VOLT ASADYF/19.3V GENERAL-ELECTRIC
DYF/19.3V/140W/G5.3 ANSIH/19.3V/140W/G5.3/T3/FC6/50HH/19.3V/140W/G5.3/T3/FC6/50H/DYFJC-19.3V/140W
JC19.3V-140W USHIOSPQ140T3G5.3FC6-19.3VSPQ140T3G5.3FC619.3V-DYF
