DYM ANSI Code

DYM ANSI is a G7 lamp with a G5.3 base operating at 420 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Vycor UVS finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DYM lamps.

Electrical Specifications

Amps3.5
Volts120
Watts420

Photometrics

Candlepower880
Color Temperature3200
Light Center Length (LCL)1 11/16
Lumens11000

Physical Characteristics

BaseG5.3
Bulb ShapeG7
FilamentCC-6
FinishVycor UVS
Max Overall Length (MOL)2 1/2

Operating Characteristics

Burn PositionAny
Life Hours75

General Information
Lamp CodeDYM
Code TypeANSI

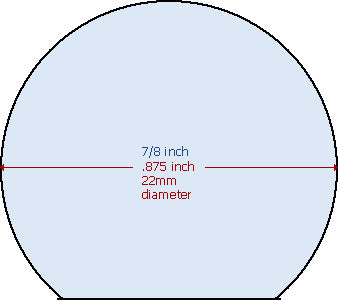

G7 Shape

G7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeG
Shape ClassificationGlobe

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDYM

DYM may also be listed as:
DYM ANSIDYM ASADYM GENERAL-ELECTRICDYM INTERLIGHT
DYM WIKODYM-120 VOLT ANSIDYM-120 VOLT ASADYM-120V ANSI
DYM-120V ASADYM-120V-420W ANSIDYM-120V-420W ASADYM-120V/120V/420W/G5.3 ANSI
DYM/120V GENERAL-ELECTRICDYM/120V/420W/G5.3 ANSIH/120V/420W/G5.3/G7/CC6/75HH/120V/420W/G5.3/G7/CC6/75H/DYM
SPQ420G7G5.3CC6-120VSPQ420G7G5.3CC6120V-DYMSPQ420G7G5.3CL-120VSPQ420G7G5.3CL120V-DYM
